Operation

OPERATION

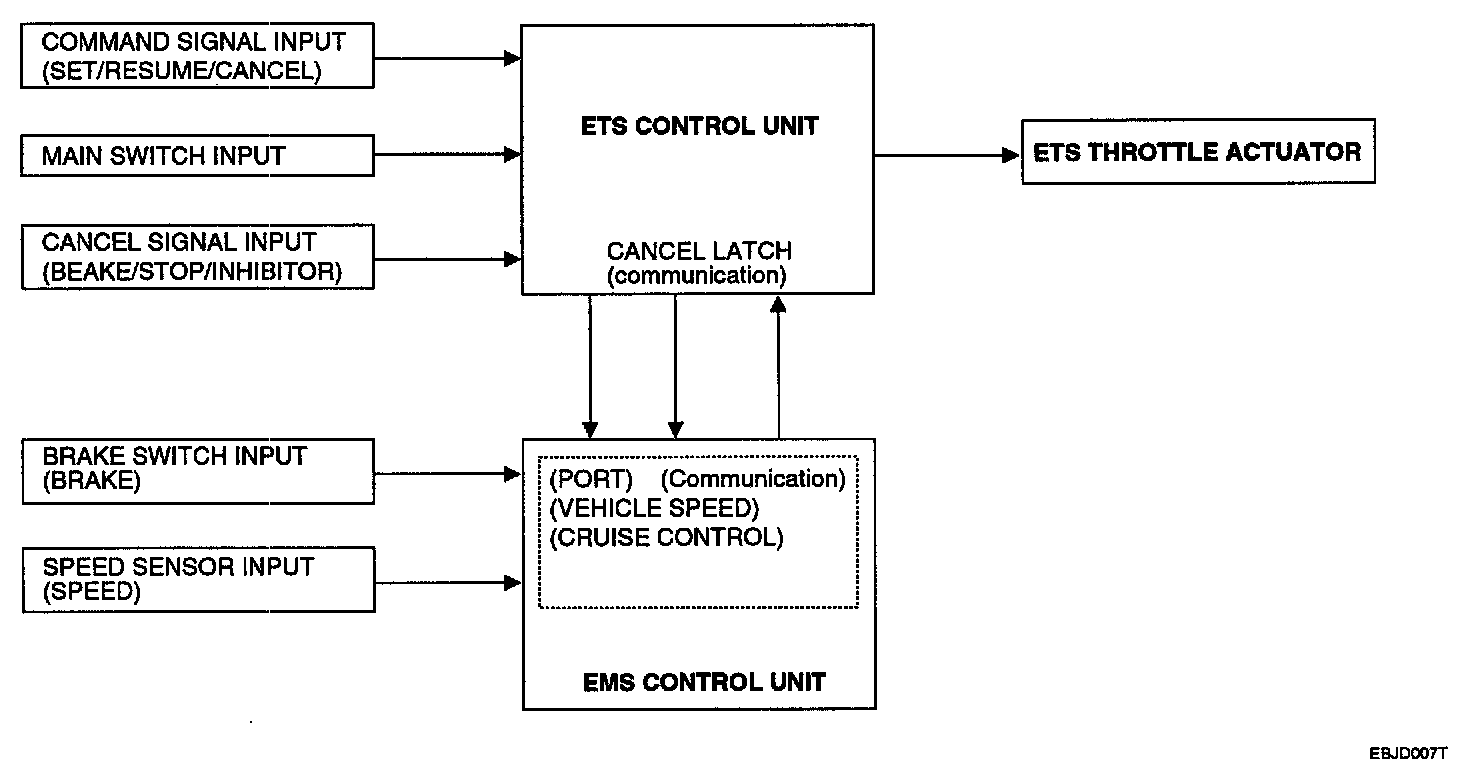

System Block Diagram:

The auto cruise control has built-in ETS. (Electronic Throttle System) ETS control module and ECM (Engine Control Module) receive sensor signal input (for instance, command switch signal, brake switch signal, speed sensor signal, etc.) and control the operation of the ETS throttle actuator.

OPERATION CONDITION
- Minimum operating speed: 40 Km/h (25 MPH)
- Maximum memorized speed: 160 Km/h (90 MPH)
