Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2004
>>
Santa Fe V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C Connectors (In Control Harness)
>>
C24-3 To C38-1
C24-3 To C38-1

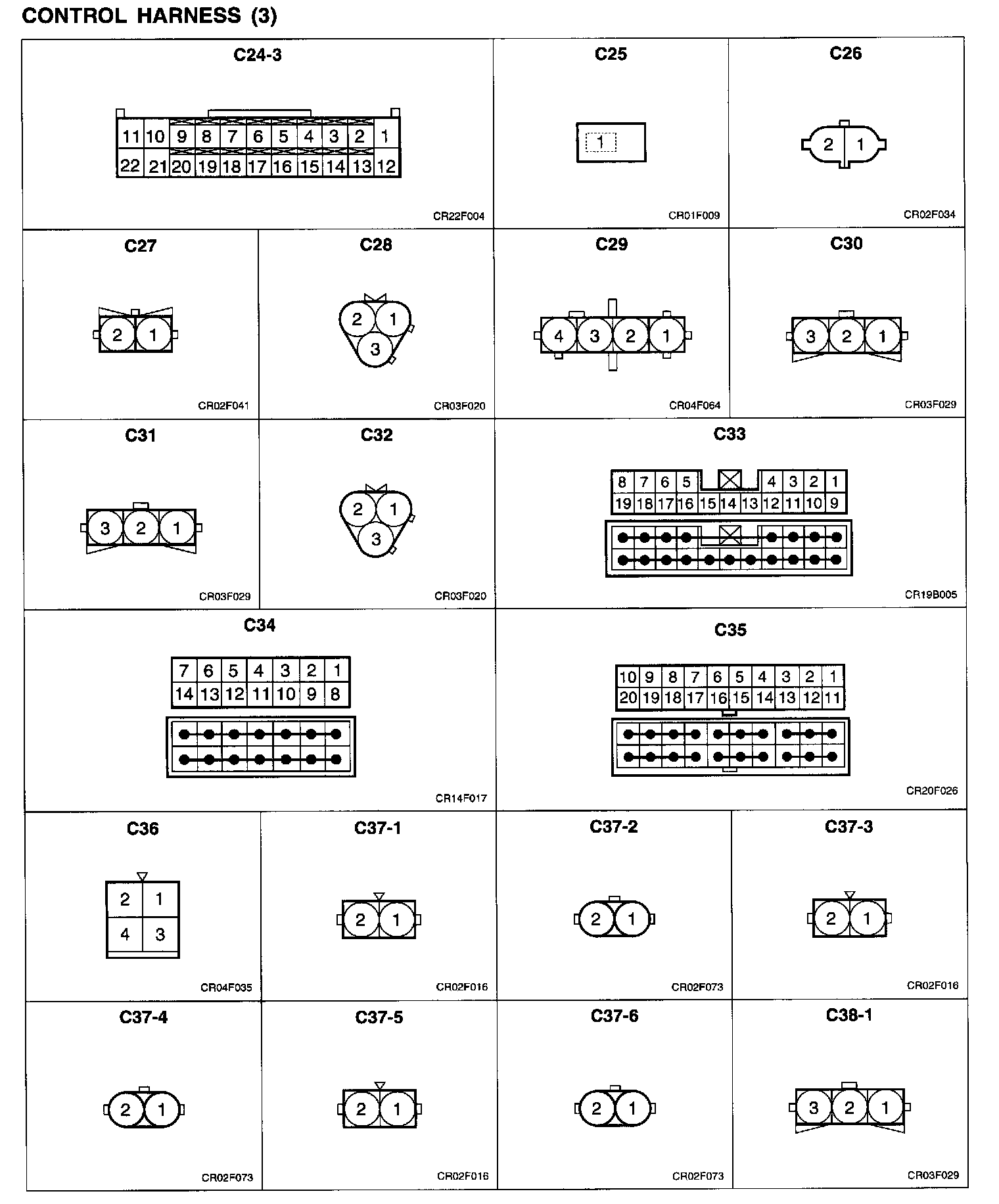

C24-3 To C38-1:
