Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2004
>>
Santa Fe V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
M Connectors (In Main Harness)
>>
M36 To M50

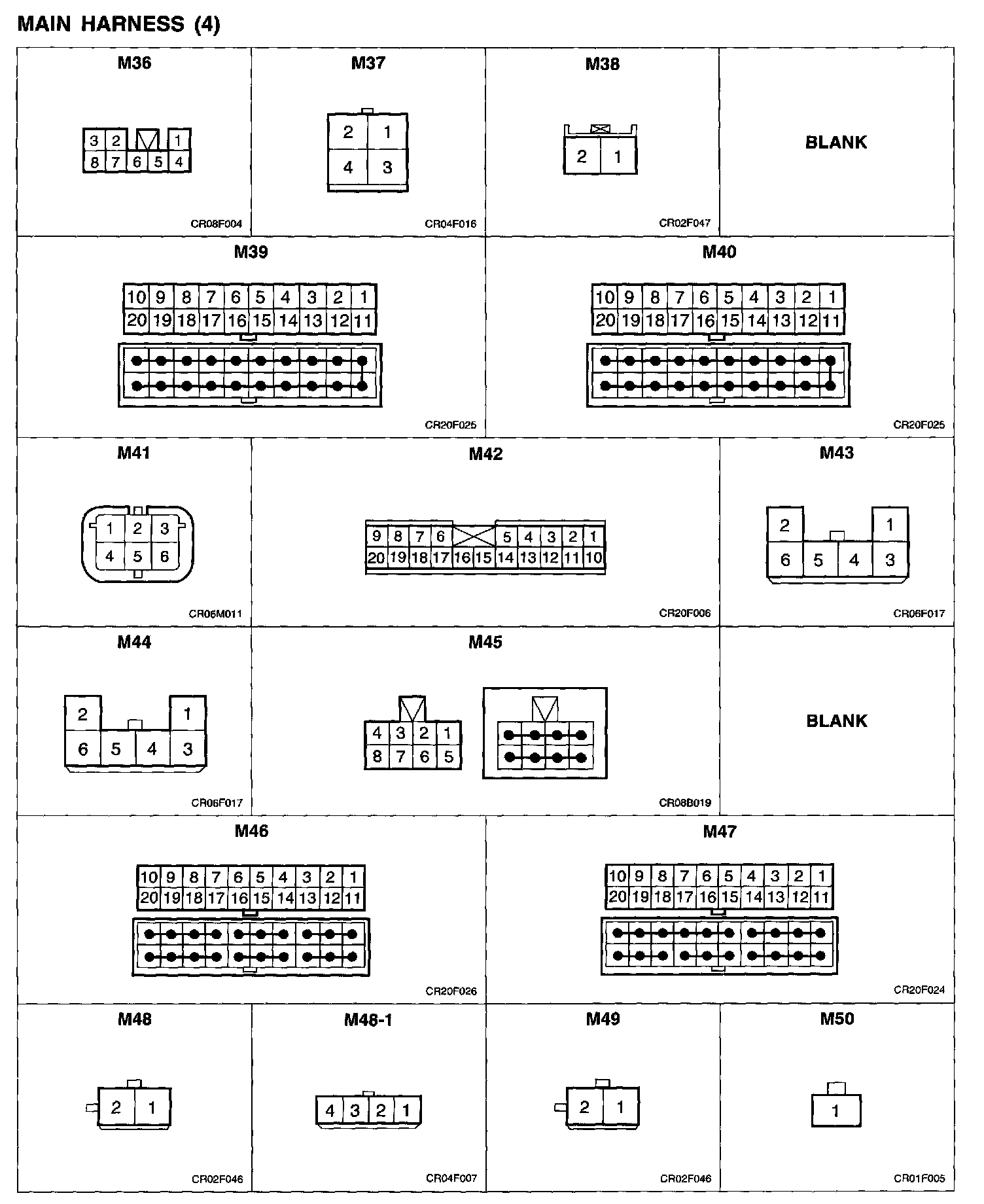

M36 To M50
M36 To M50:
