Hydraulic Control Assembly - Antilock Brakes




HECU BLOCK DIAGRAM

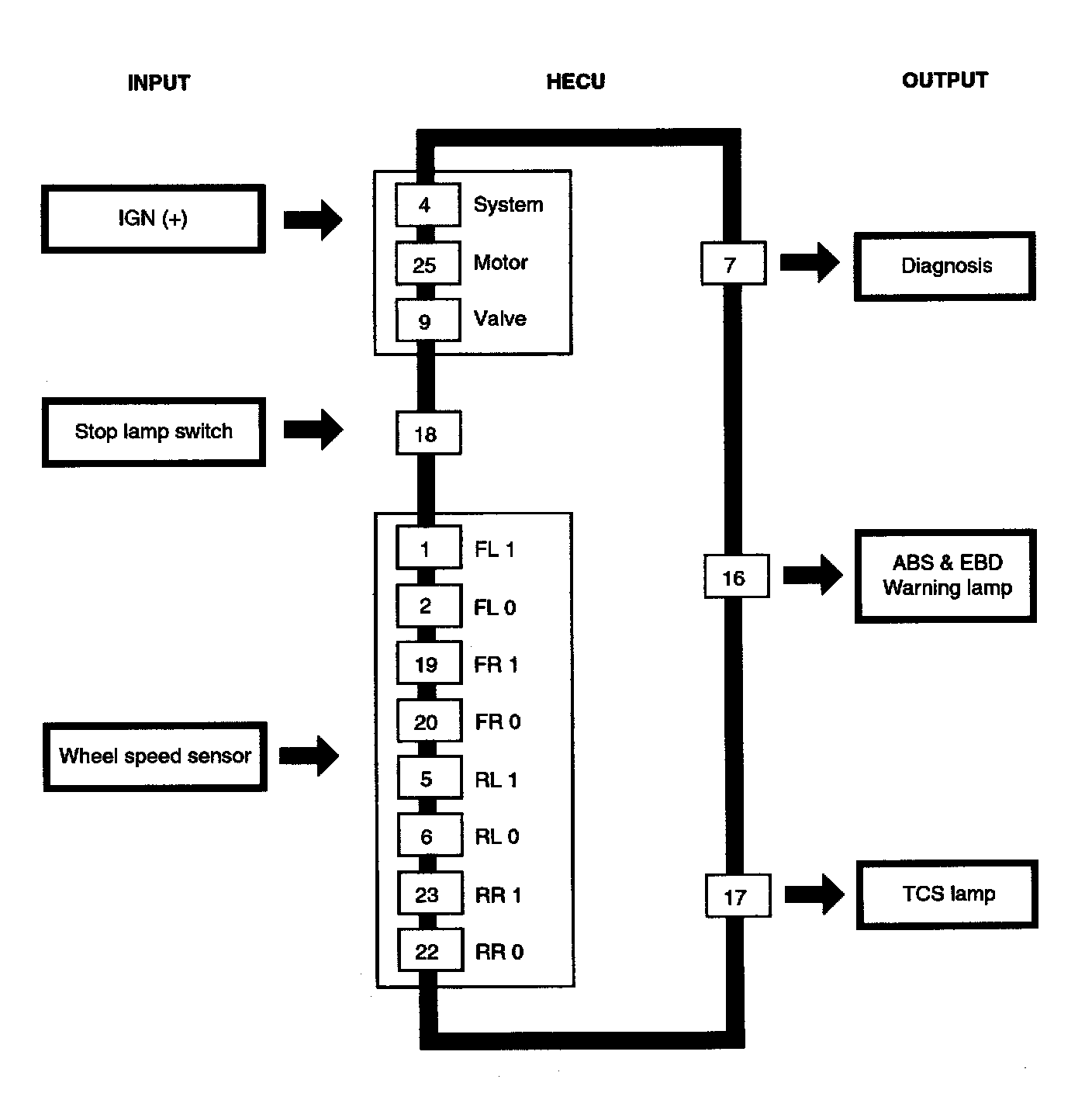

1. INPUT/OUTPUT DIAGRAM

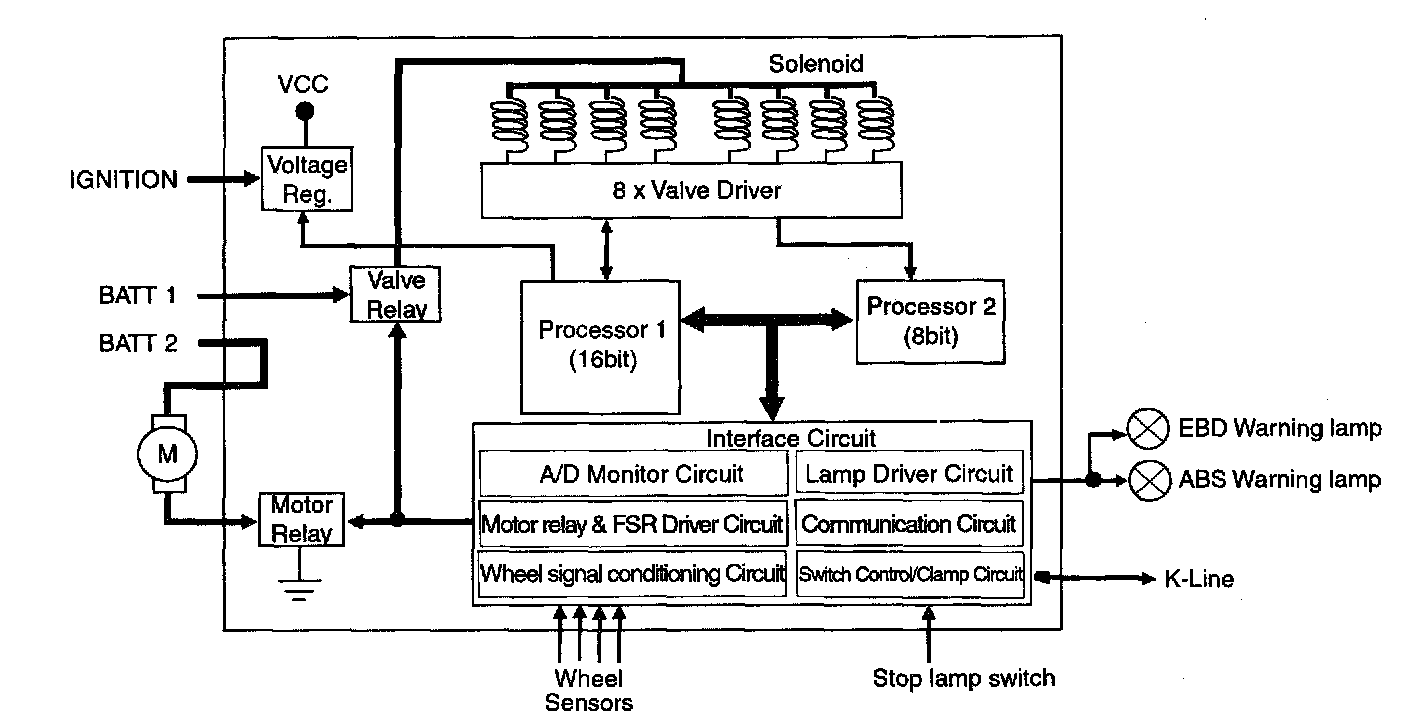

2. ABS ECU BLOCK DIAGRAM

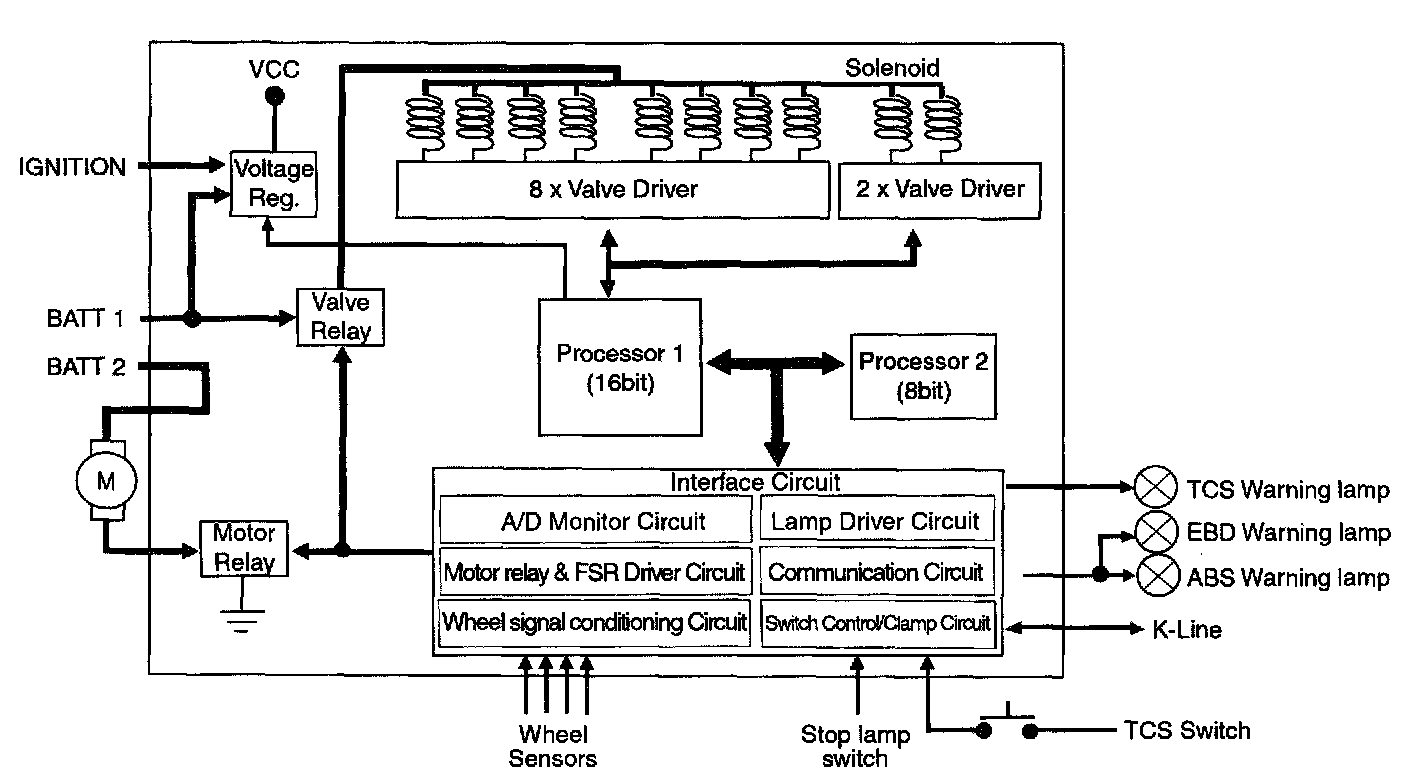

3. TCS ECU BLOCK DIAGRAM
