Transfer Case

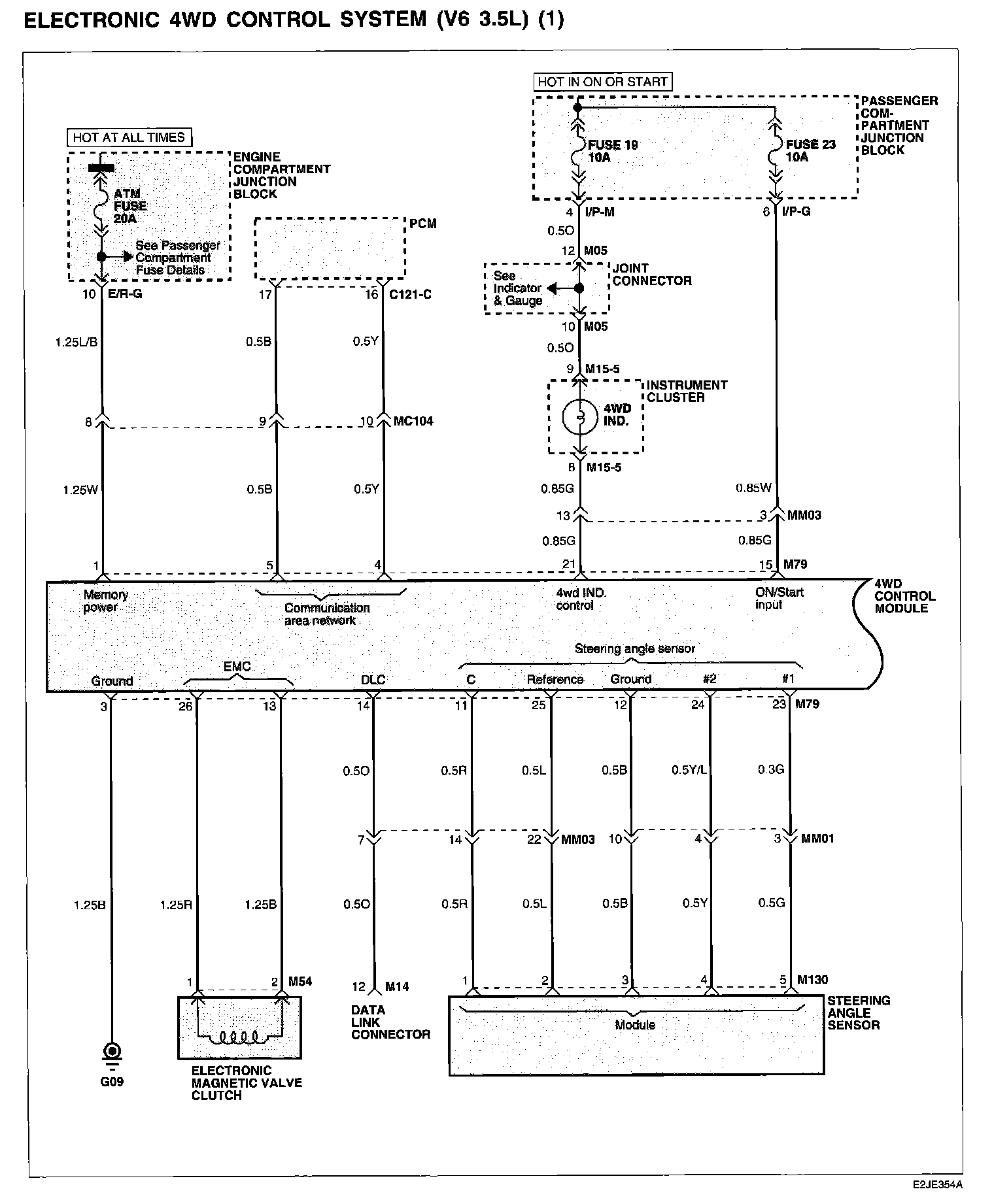

Electronic 4WD Control System (V6 3.5L) (1):

Electronic 4WD Control System (V6 3.5L) (2):

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
