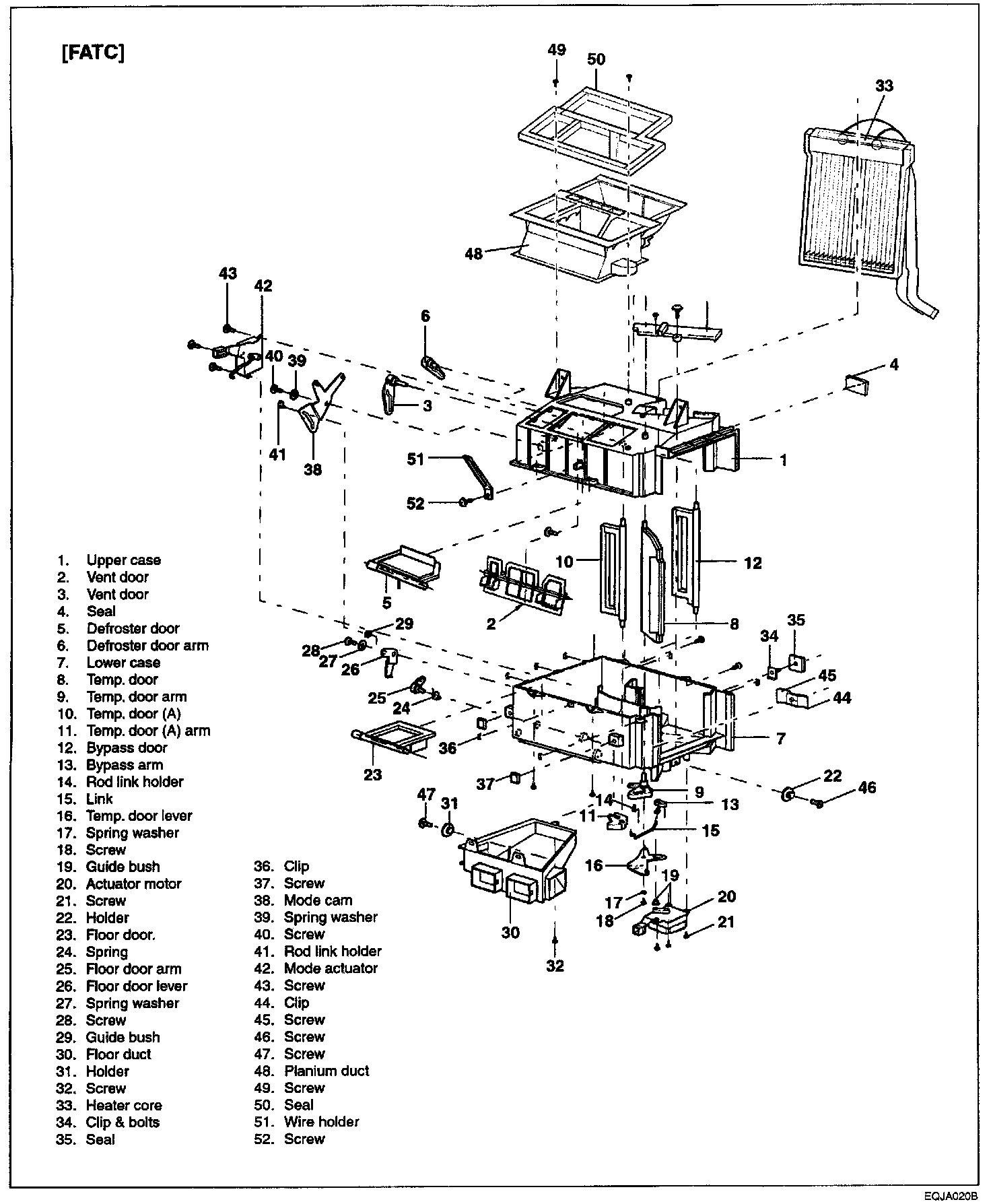

Heater Core Case
>>
FATC (Full Automatic Temperature Control)
FATC (Full Automatic Temperature Control)
