Specific Gravity Test

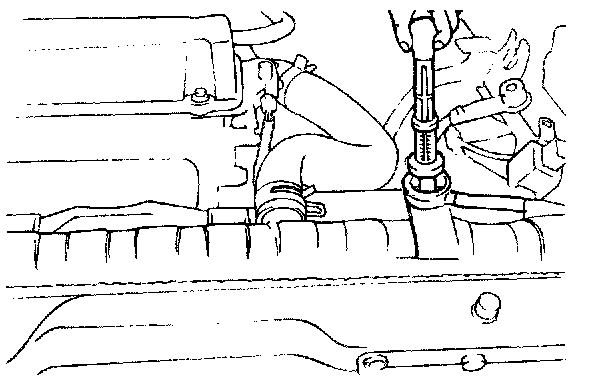

SPECIFIC GRAVITY TEST1. Measure the specific gravity of the coolant with a hydrometer.
2. Measure the coolant temperature and calculate the concentration from the relation between the specific gravity and temperature.

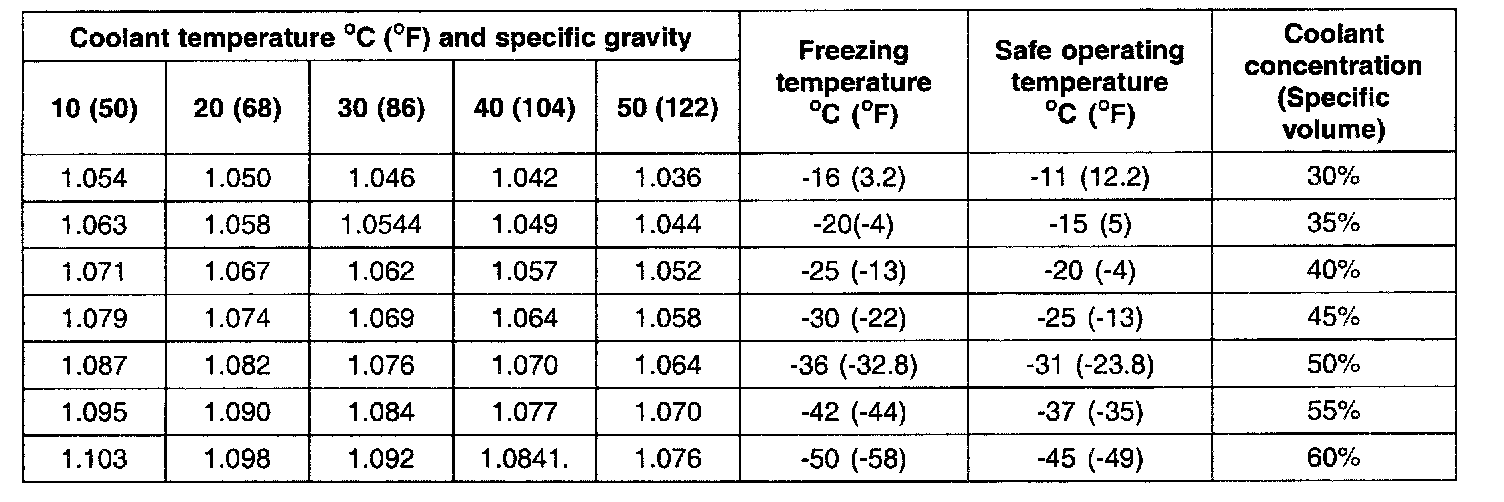

RELATION BETWEEN COOLANT CONCENTRATION AND SPECIFIC GRAVITY
EXAMPLE
The safe operating temperature is -15°C (5°F) when the measured specific gravity is 1.058 at coolant temperature of 20°C (68°F)
CAUTION
^ If the concentration of the coolant is below 30%, its anti-corrosion property will be adversely affected.
^ If the concentration is above 60%, the engine cooling property will decrease, affecting the engine adversely. For these reasons, be sure to maintain the concentration level within the specified range.
^ Do not mix types of anti-freeze.

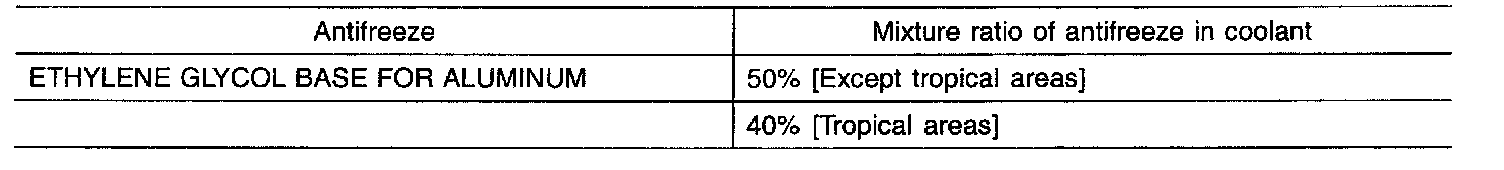

RECOMMENDED COOLANT
