Disassembly
DISASSEMBLY
Retainer Lock

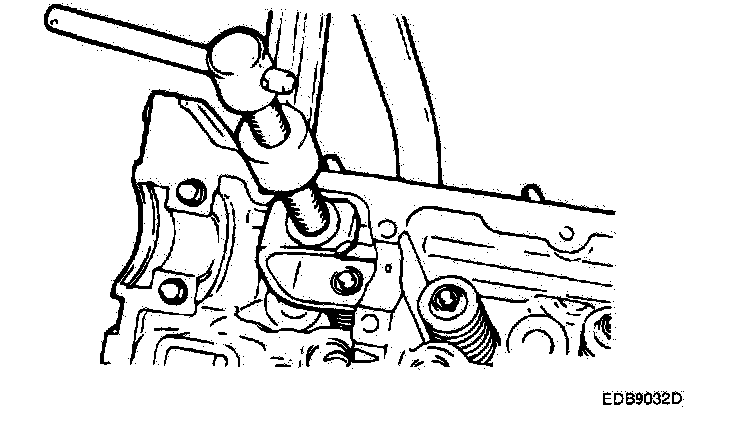

1. Compress the valve spring using special tool. (09222 - 28000, 09222 - 28100)
2. Remove the retainer lock.
3. Remove the valve spring, valve spring retainer valve spring sheet and valve.
DISASSEMBLY
Retainer Lock
1. Compress the valve spring using special tool. (09222 - 28000, 09222 - 28100)
2. Remove the retainer lock.
3. Remove the valve spring, valve spring retainer valve spring sheet and valve.
