Reassembly

CYLINDER HEAD

REASSEMBLY
1. Install the spring seats.

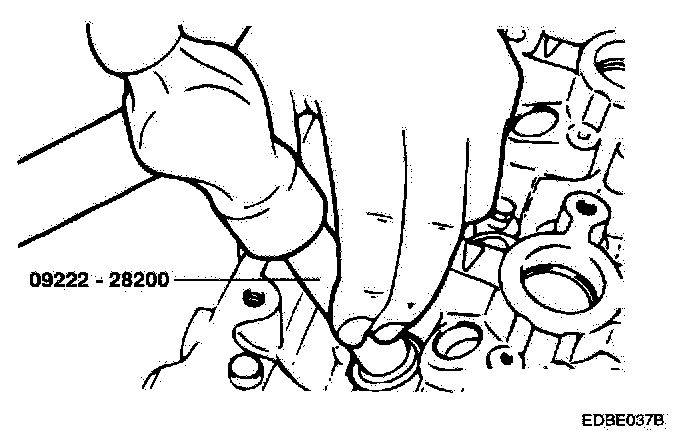

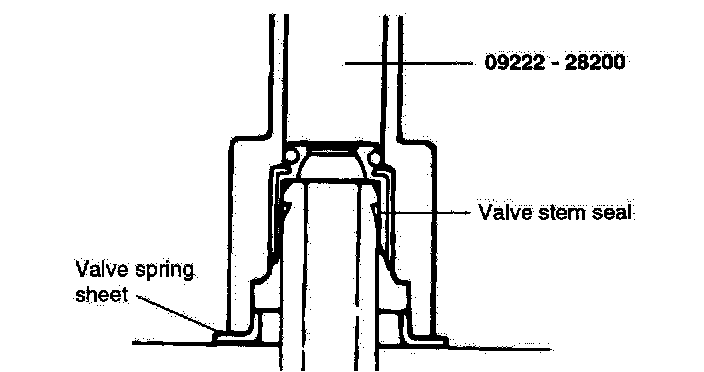

2. Using special tool (09222-28200), lightly tap the seal in position.








NOTE:
- Do not reuse old valve stem seals.
- Incorrect installation of the seal could result in oil leakage of from the valve guides.

3. Apply engine oil to each valve. Insert the valve into their guides. Avoid pushing the valve into the seal by force. After installing the valve, check that it moves smoothly.

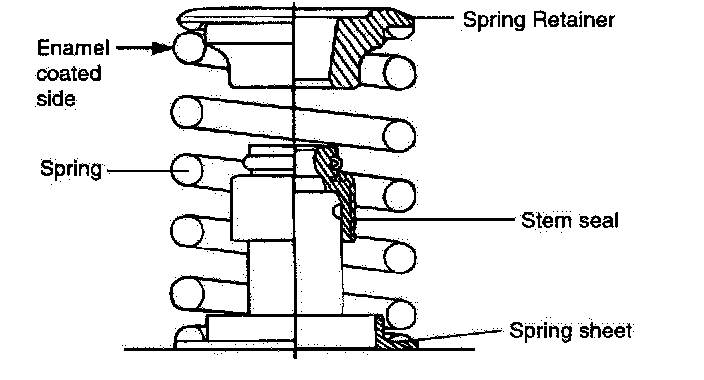

4. Place valve springs so that the side coated with enamel faces toward the valve spring retainer.

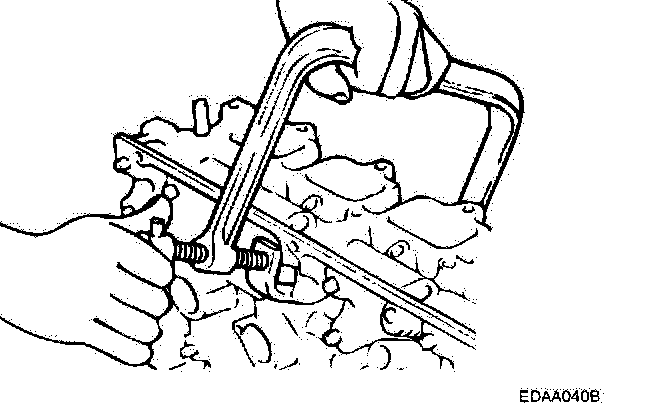

5. Using the special tool (09222 - 28000, 09222 - 28100), compress the spring and install the retainer locks. After installing the valves, ensure that the retainer locks are correctly in place before releasing the valve spring compressor.





NOTE: When the spring is compressed, check that the valve stem seal is not pressed against the bottom of the retainer.
