Cylinder Head Assembly

TIGHTENING CYLINDER HEAD BOLTS

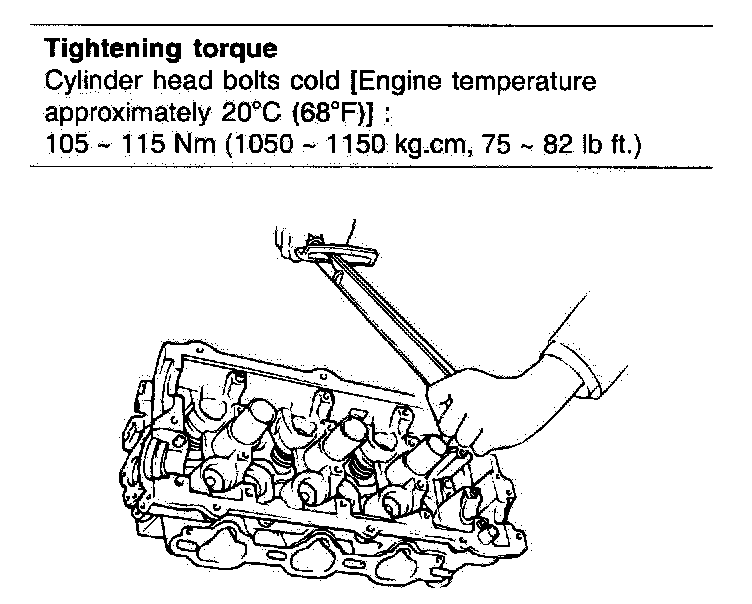

1. First loosen slightly and then tighten to the specified torque.

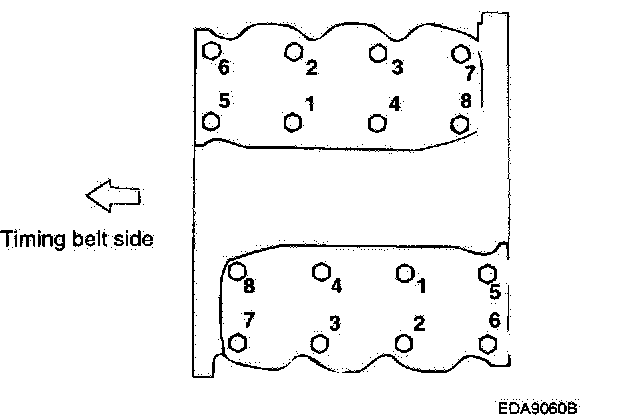

2. Be sure to follow the specific torque sequence as shown in the illustration.

NOTE: Run the engine to normal operating temperature and let it cool, then re-torque the bolts to specifications.
