Tail Gate Lamp

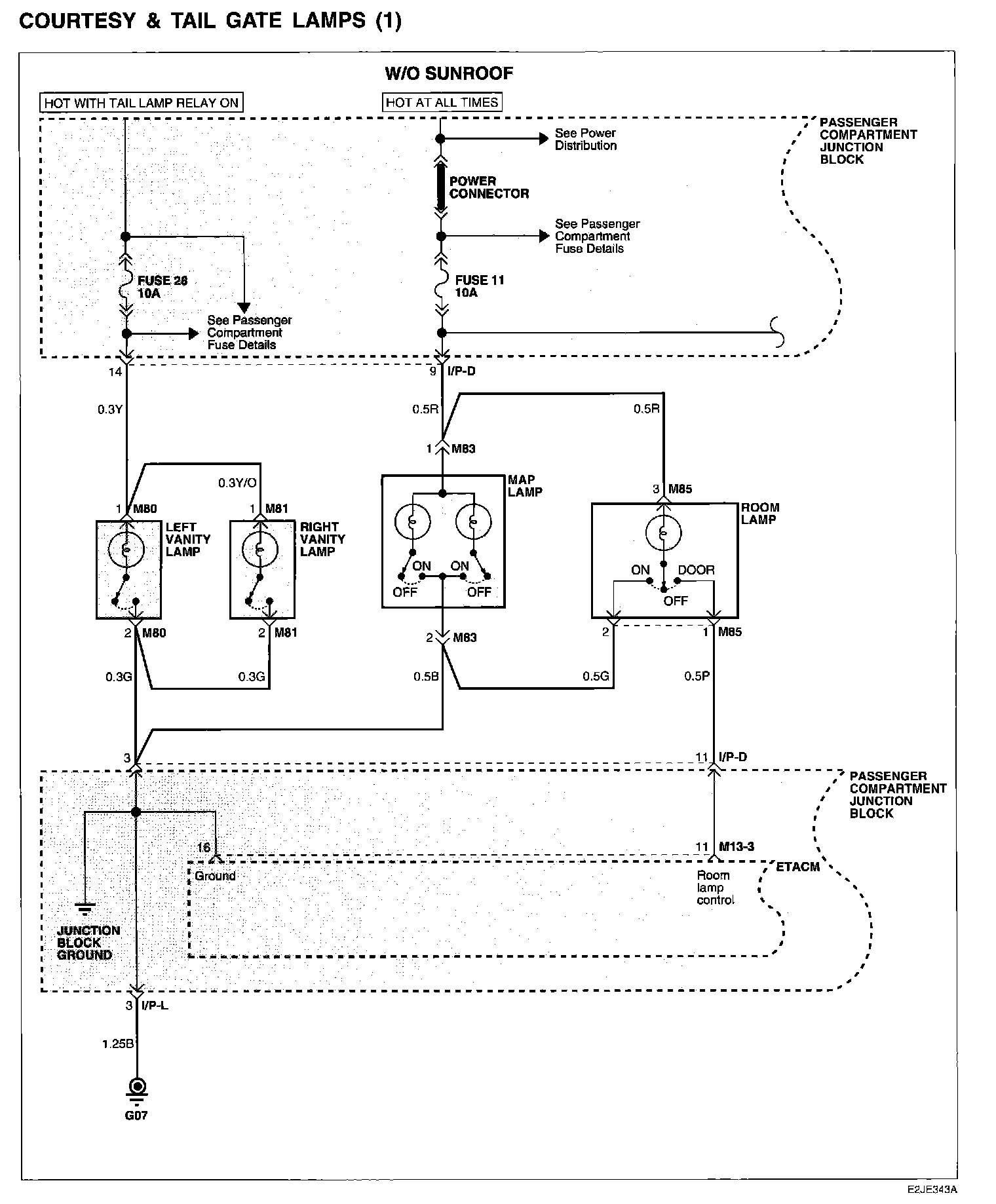

Courtesy & Tail Gate Lamps (1):

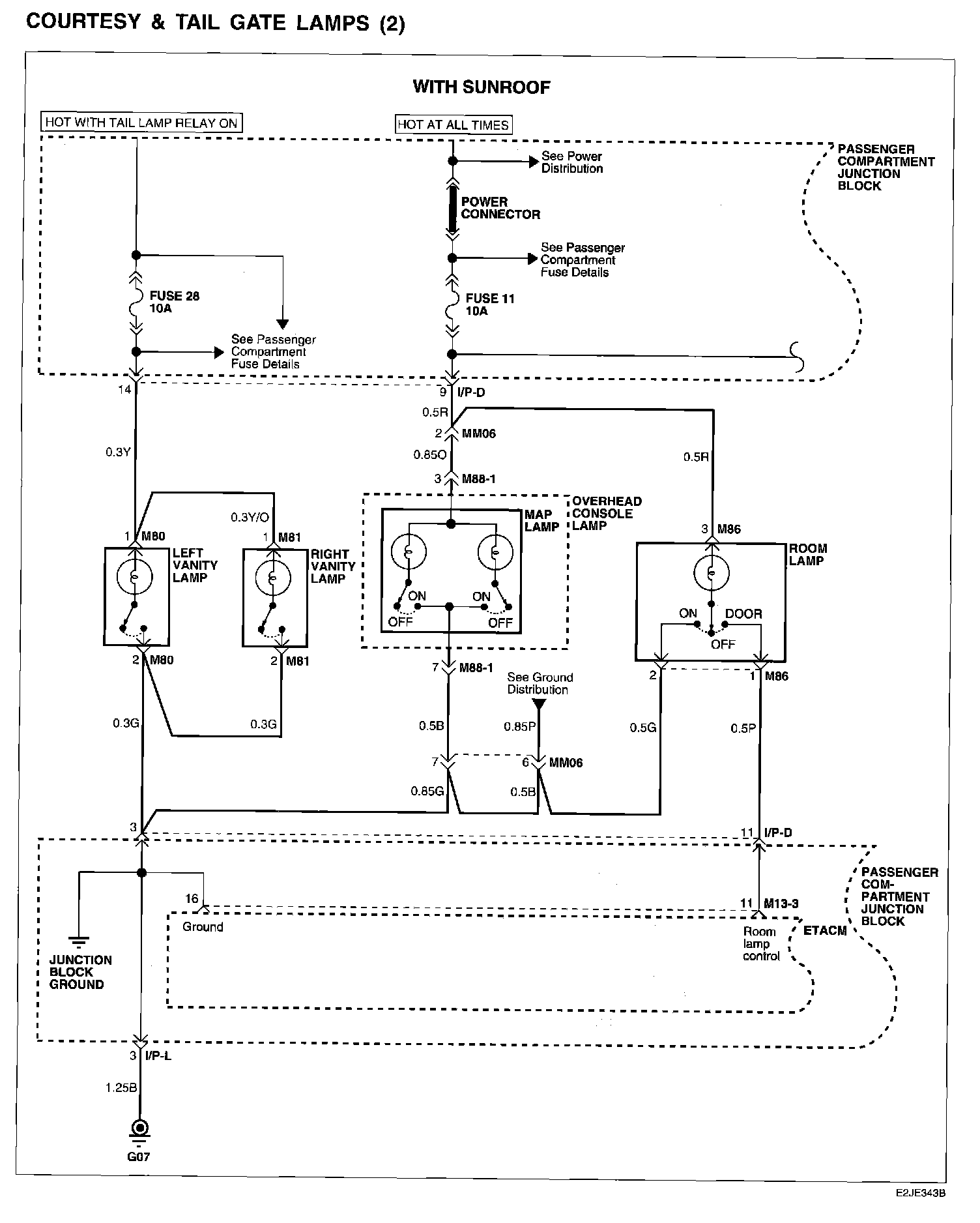

Courtesy & Tail Gate Lamps (2):

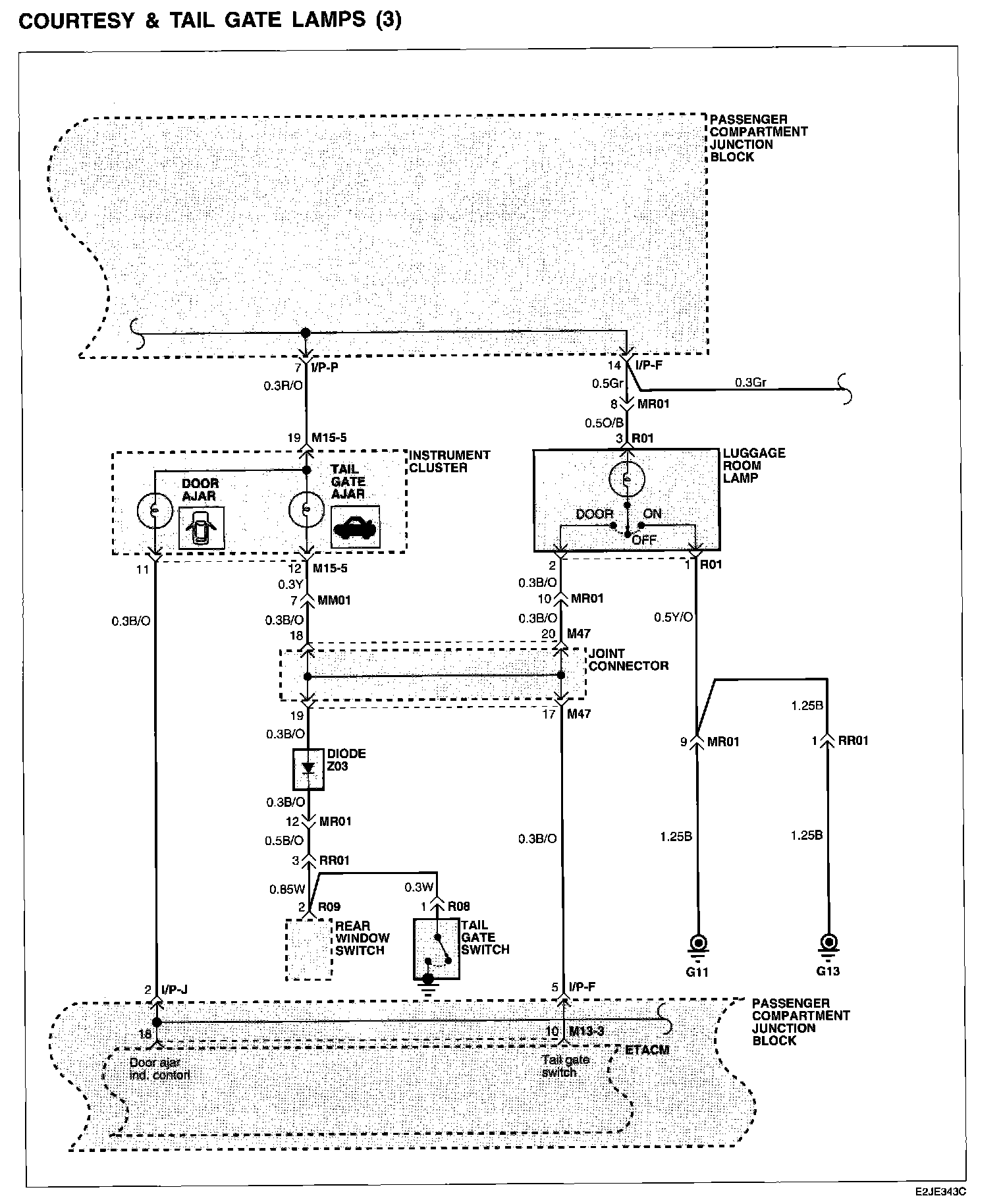

Courtesy & Tail Gate Lamps (3):

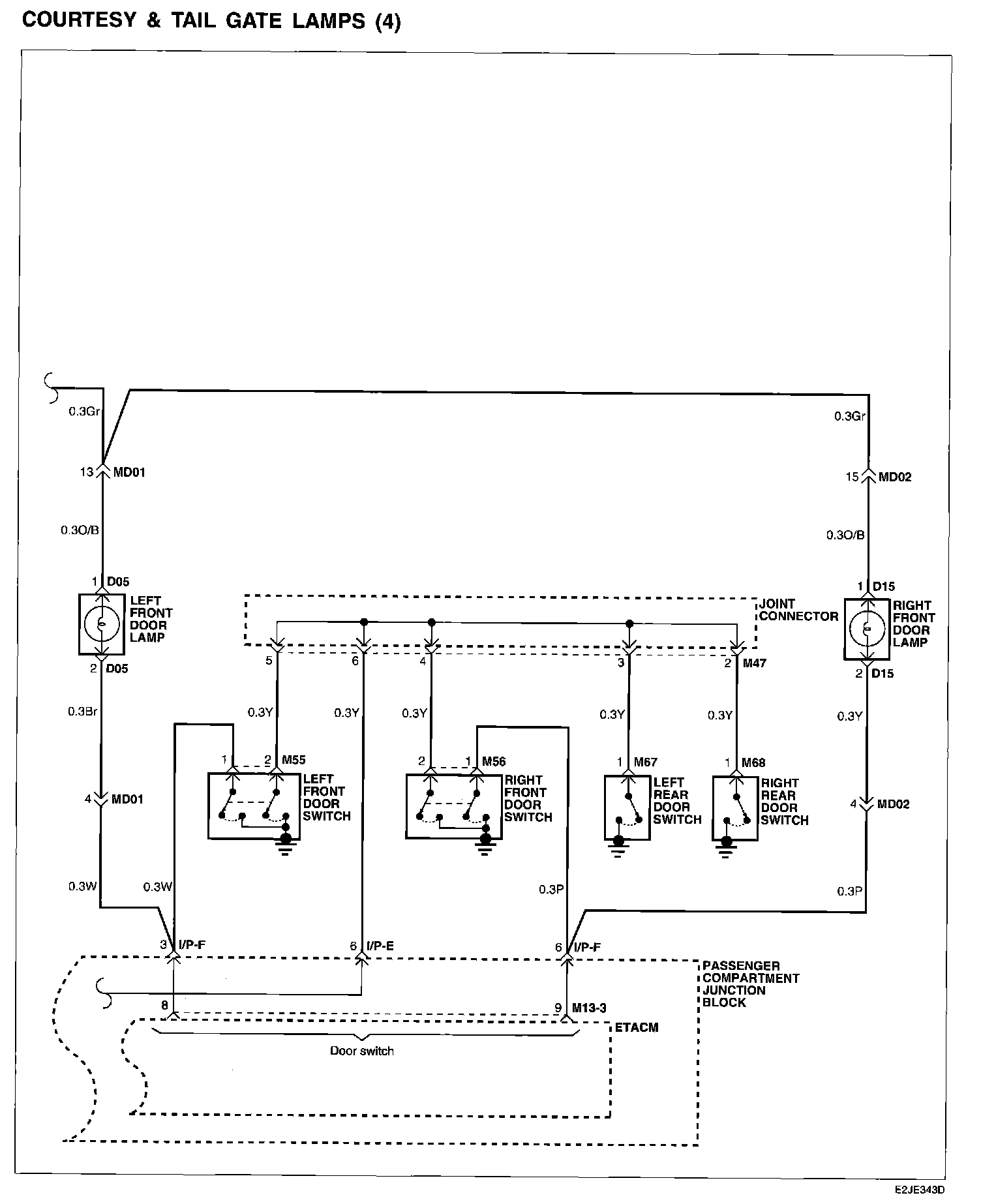

Courtesy & Tail Gate Lamps (4):

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
