Tail Lamp: Service and Repair

REAR COMBINATION LAMP
1. Disconnect the negative battery terminal.

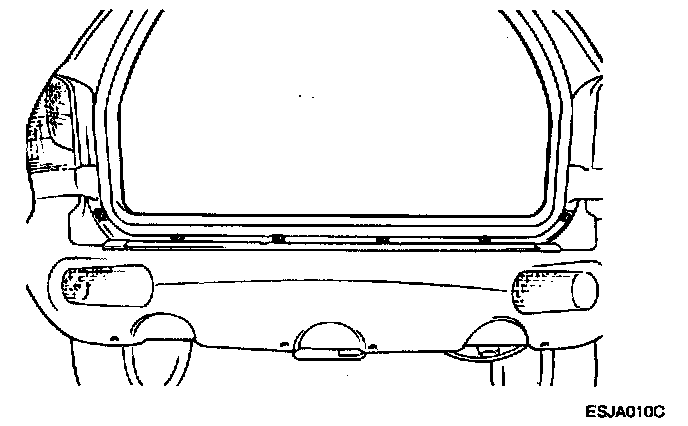

2. Open the tailgate and loosen the screws holding the rear combination lamp.
3. Disconnect the connector and remove the lamp assembly.




4. Installation is the reverse of removal.
