Combination Switch: Testing and Inspection

INSPECTION

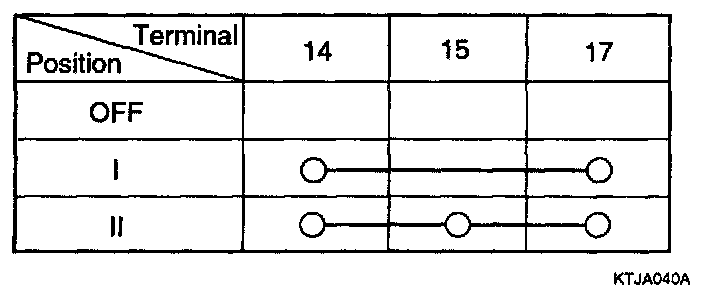

Lighting Switch [M20-2}:

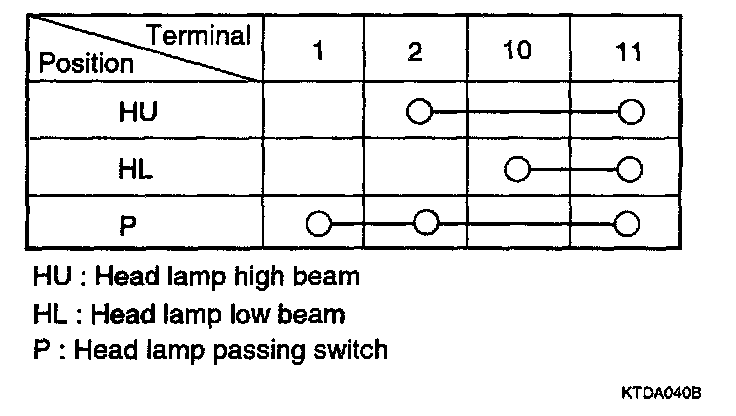

Dimmer And Passing Switch [M20-2]:

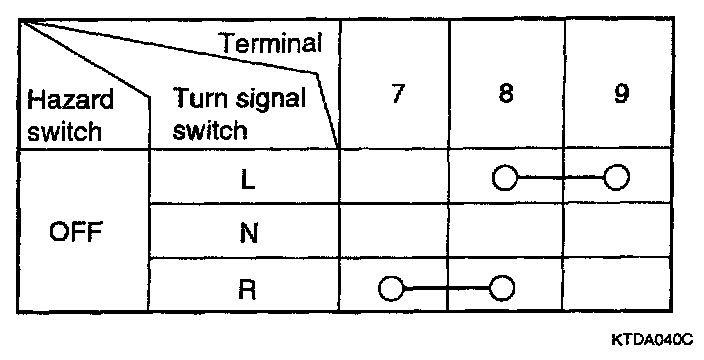

TURN SIGNAL AND LANE CHANGE SWITCH [M20-2]:

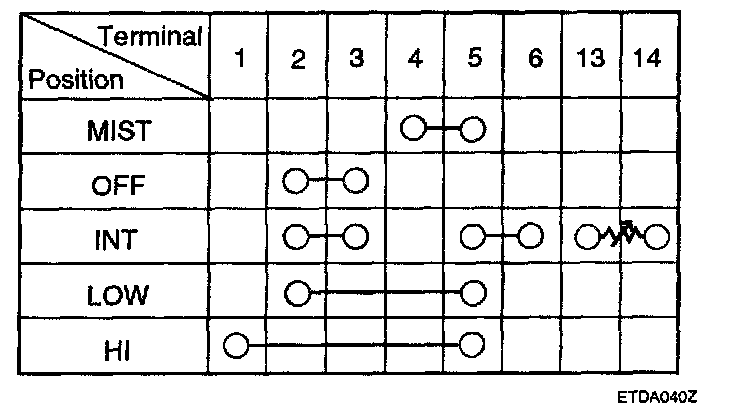

WIPER AND INTERMITTENT VOLUME SWITCH [M201]:

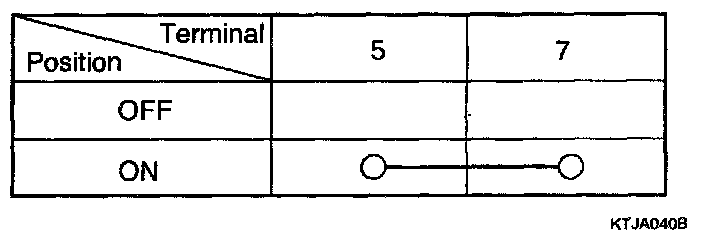

Washer Switch [M20-1]:

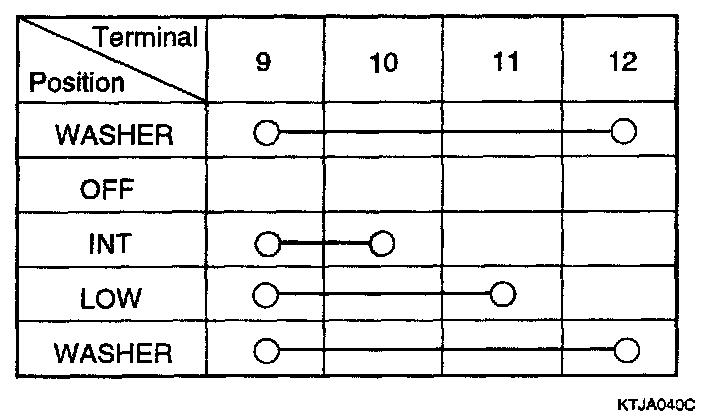

Rear Wiper And Washer Switch [M20-1]:

Check the continuity between the terminals while operating the switch.
