Transfer Case Installation
Transfer Case Installation
TRANSFER CASE
ASSEMBLY

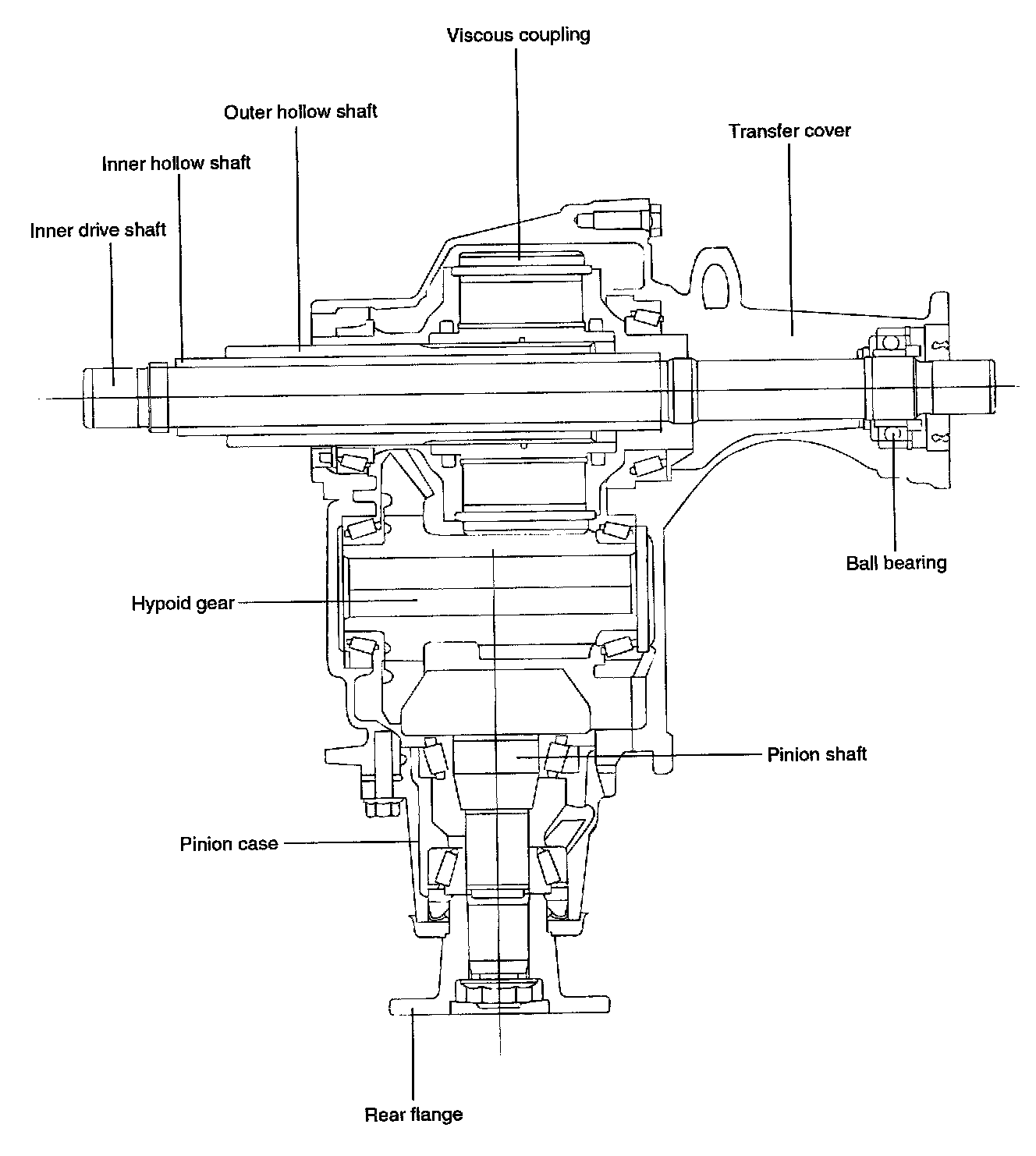

SECTION VIEW

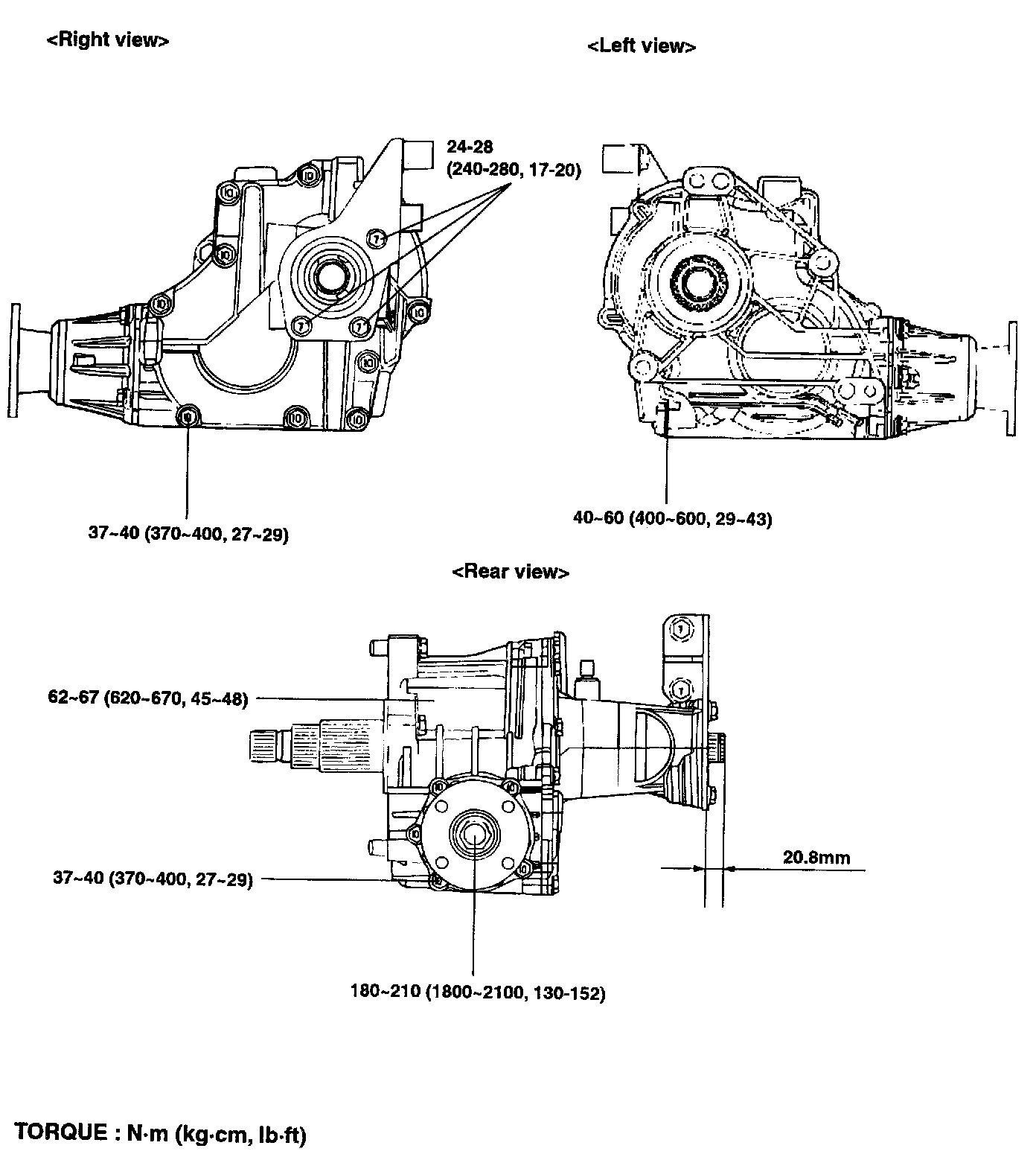

OUTSIDE VIEW
INSTALLATION
Installation is the reverse of the removal.
