Hyundai
>>
2004
>>
Sonata V6-2.7L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Keyless Entry
>>
Locations
>>
Component Locations
Component Locations

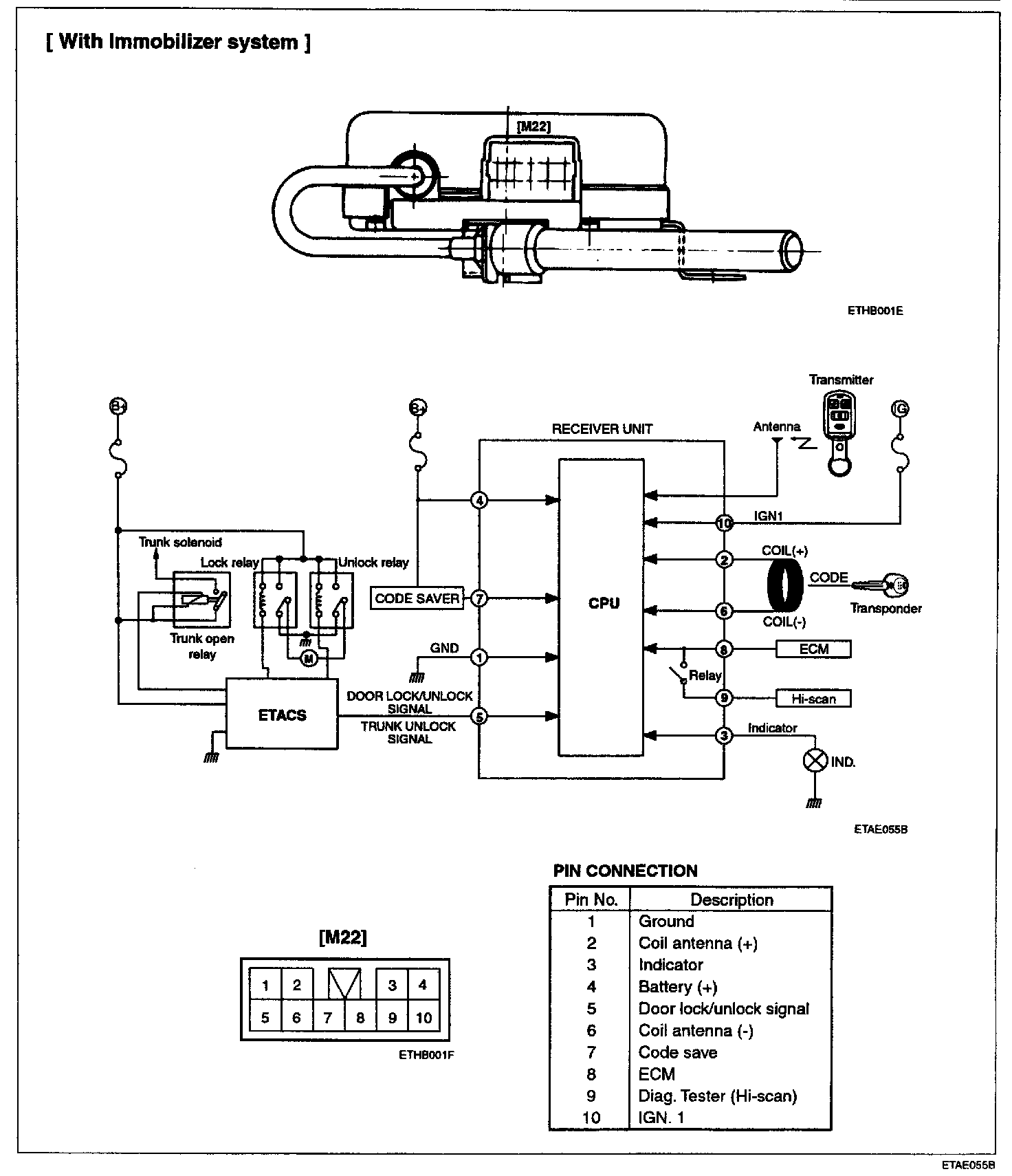

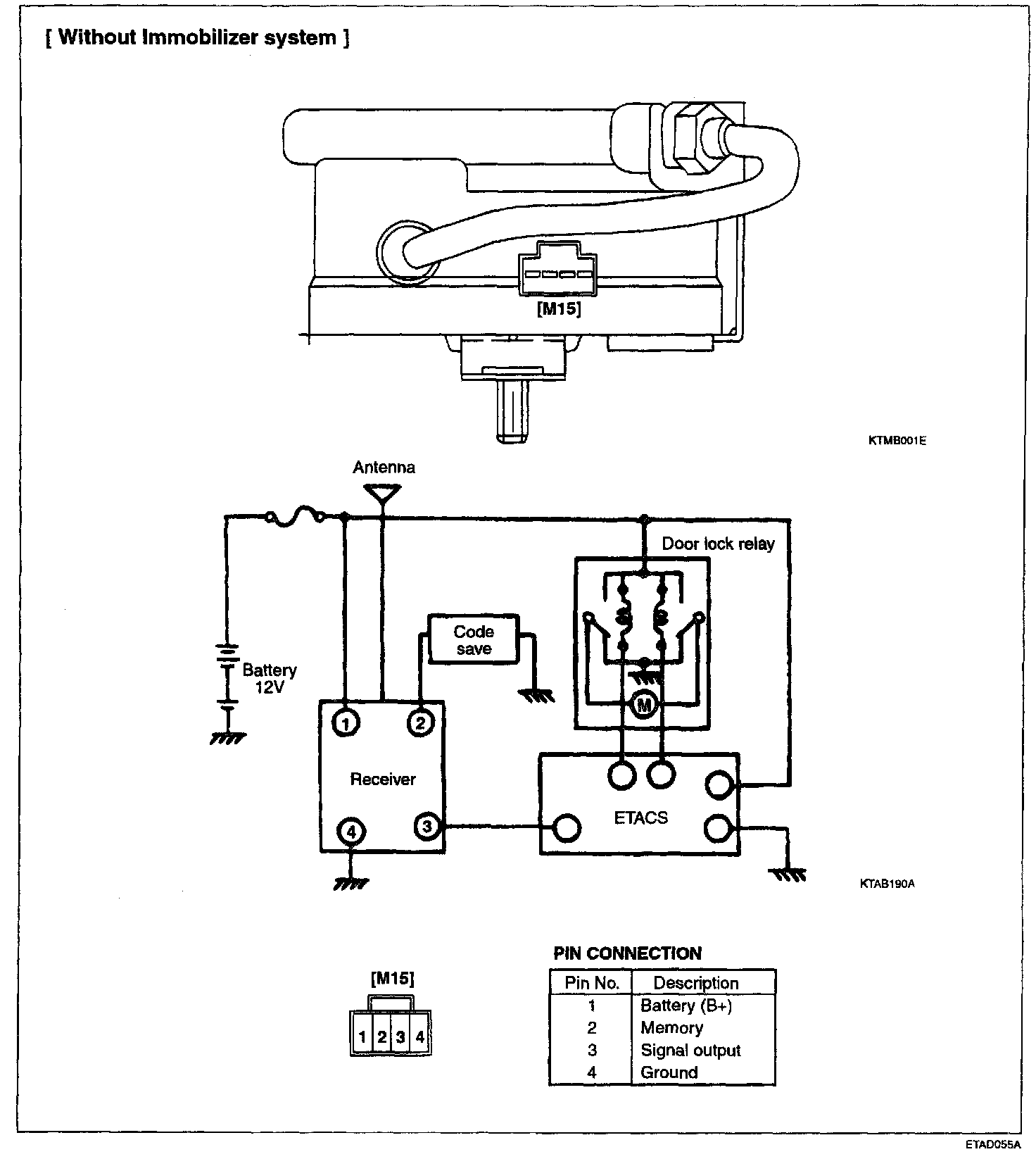

Circuit Diagram:
Circuit Diagram:
