Front Seat

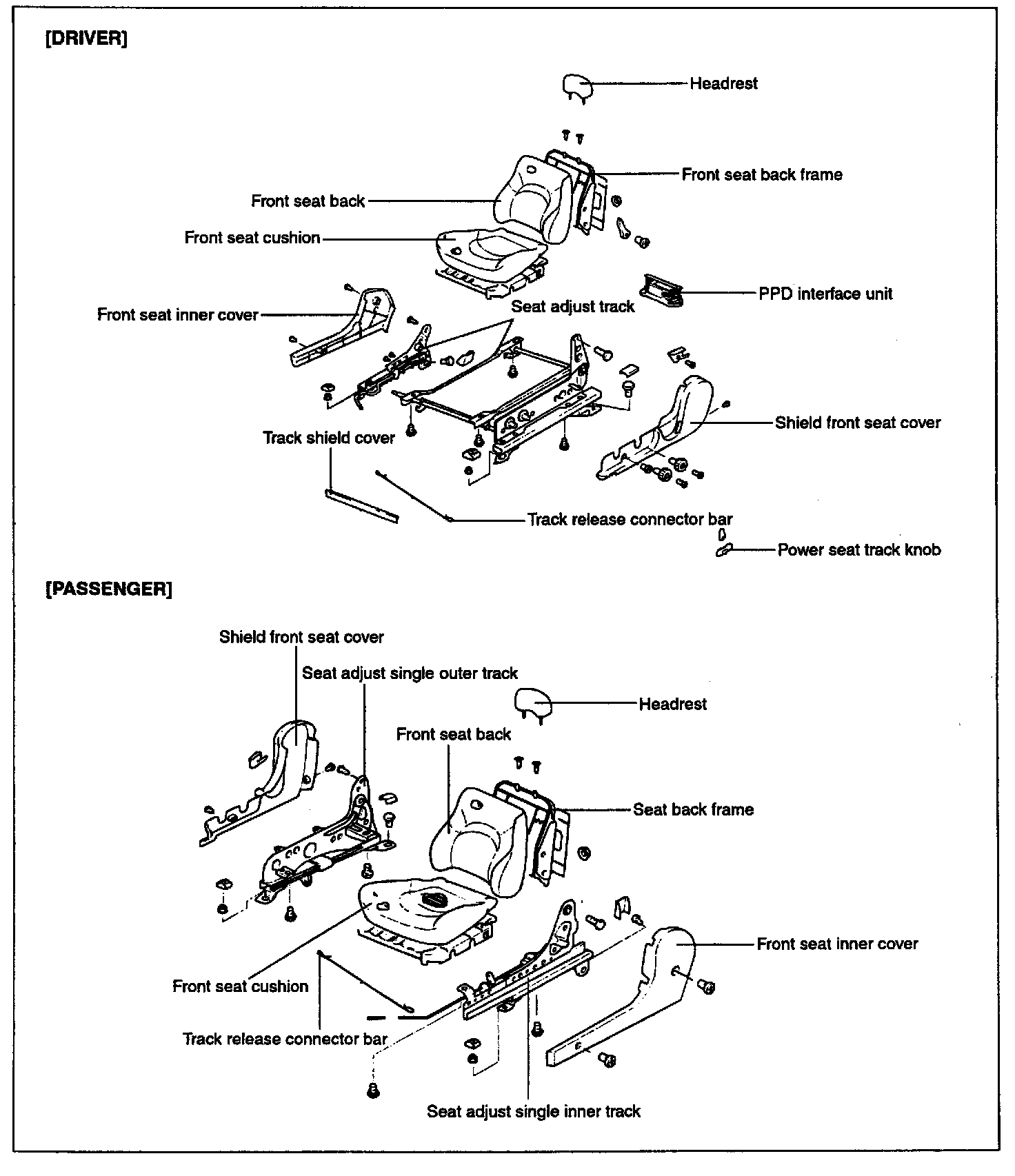

FRONT SEATFront Seat:
REMOVAL AND INSTALLATION 1.

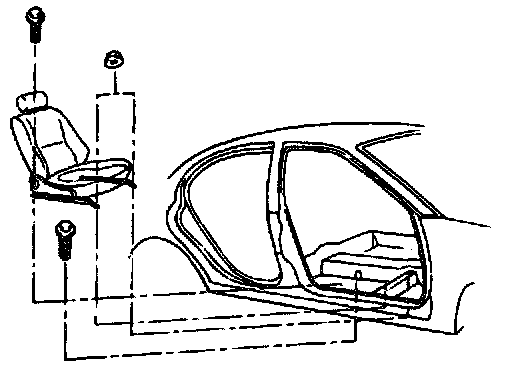

Remove the front seat mounting covers and loosen the mounting bolts.
Tightening torque: 35-55 Nm (350-550 kg.cm, 25.3-40 lb.ft) 2.

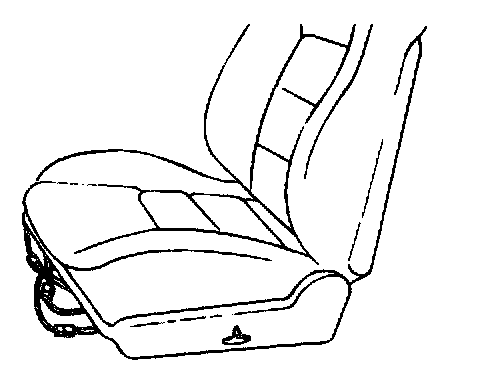

Disconnect the seat wiring connectors.
3.
Remove the front seat assembly.
4.
Installation is the reverse of removal.
NOTE: Connect the wire connectors securely.
