Scan Tool Testing and Procedures
HI-SCAN (PRO) CHECK 1.
Turn the ignition "OFF".
2.

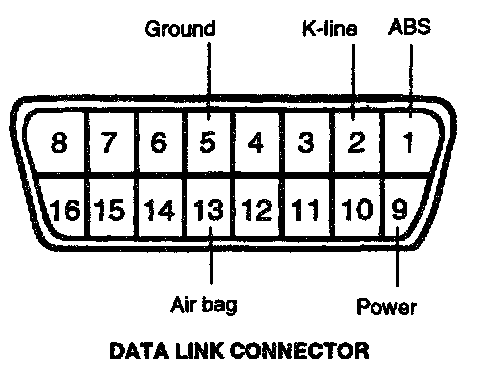

Connect the Hi-scan to the data link connector located underneath low crash pad panel.
3.
Turn the ignition "ON".
4.
Use the Hi-scan to check the self-diagnosis codes.
5.
After completion of the repair or correction of the problems, turn the ignition switch; then erase the stored faults codes using the clear key.
6.
Disconnect the Hi-scan.
