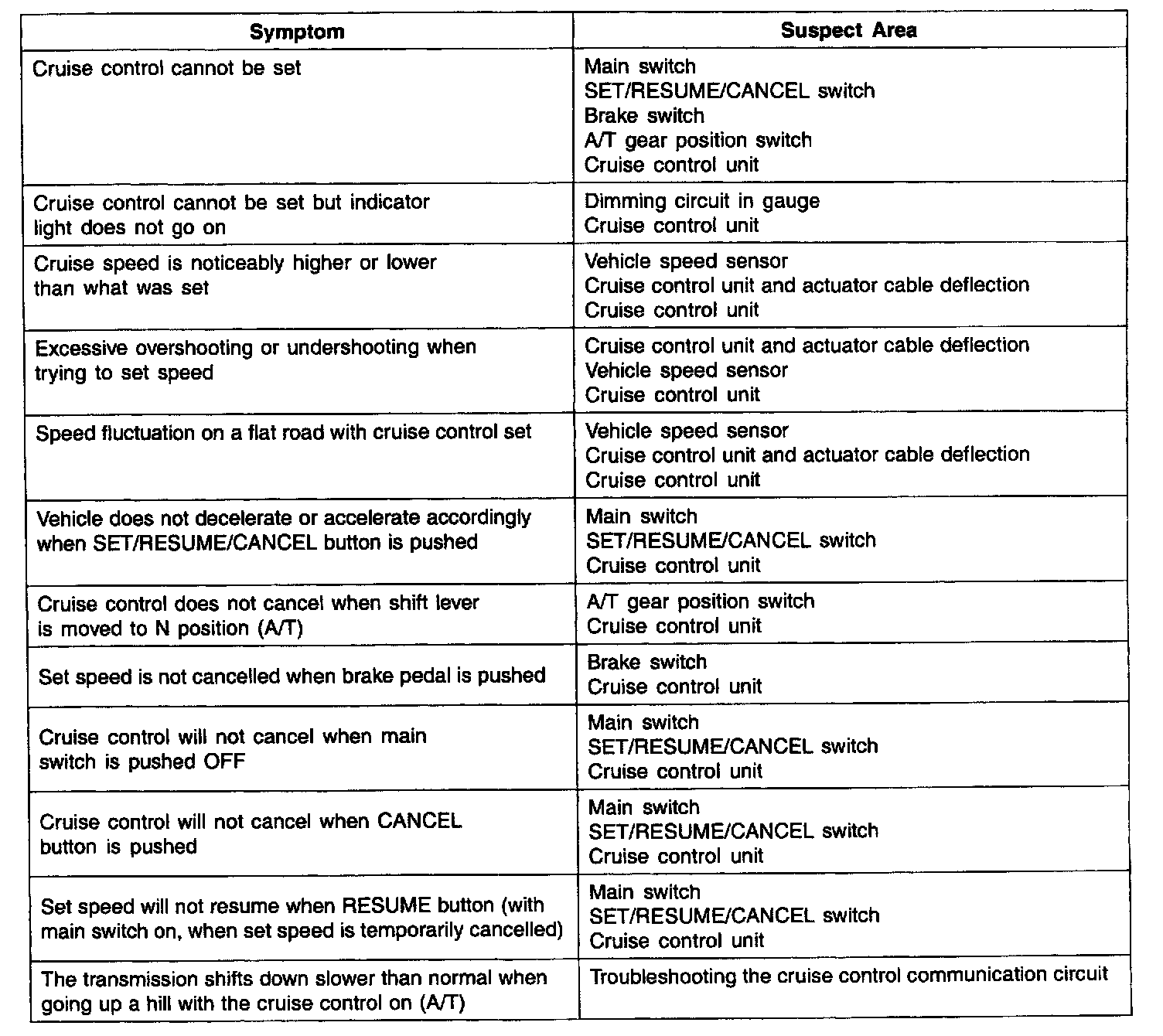

Symptom Related Diagnostic Procedures
TROUBLESHOOTINGCruise Control System:
NOTE: Before troubleshooting
-
Check the No.9 (
15 A), No 18 (
10 A), No 19 (
10 A) and No 31 (
10 A) fuse in the under-hood fuse/relay box
-
Check that the horn sounds
-
Check the tachometer to see if it works properly
