Mode Control Switch & LT; Rotary and Push Button Type Only & GT

MODE CONTROL SWITCH & LT; ROTARY AND PUSH BUTTON TYPE ONLY & GT;

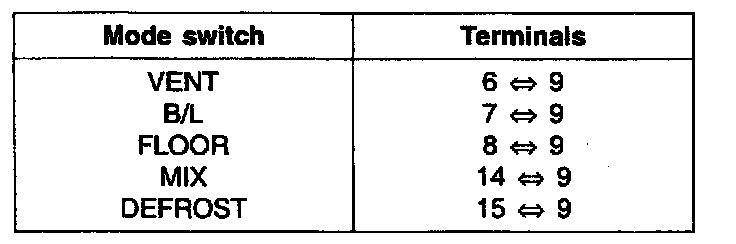

Check for continuity between terminals.
If continuity is not as specified, replace the control panel.

FRESH/RECIRCE BUTTON




Check for continuity between terminals.




If continuity is not as specified, replace the control panel.
