Combination Switch: Testing and Inspection
INSPECTIONLighting Switch [M01-1]:

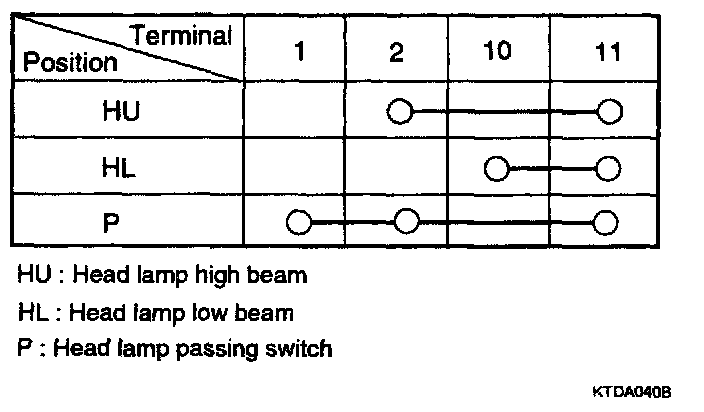

Dimmer And Passing Switch [M01-1]:

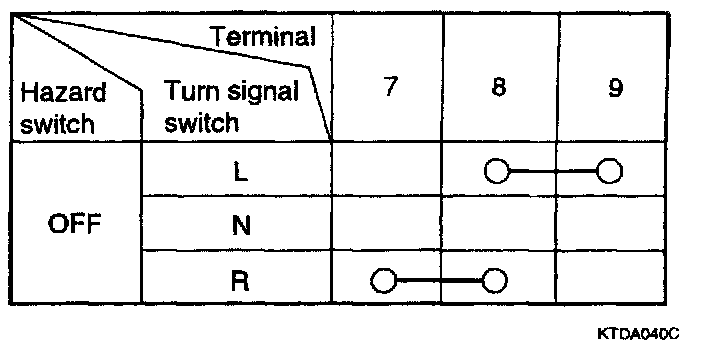

Turn Signal And Lane Change Switch [M01-1]:

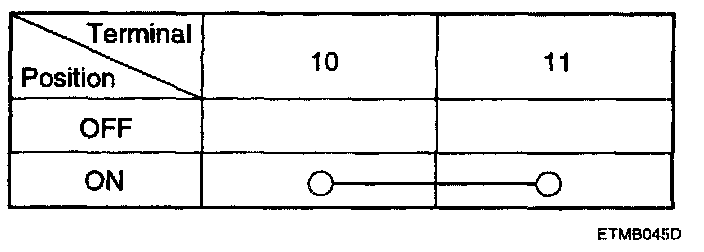

Front Fog Lamp Switch [M01-1]:

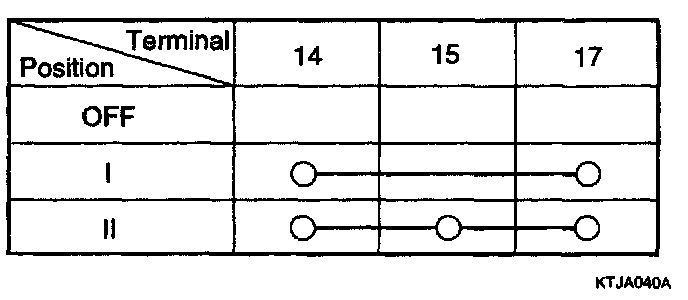

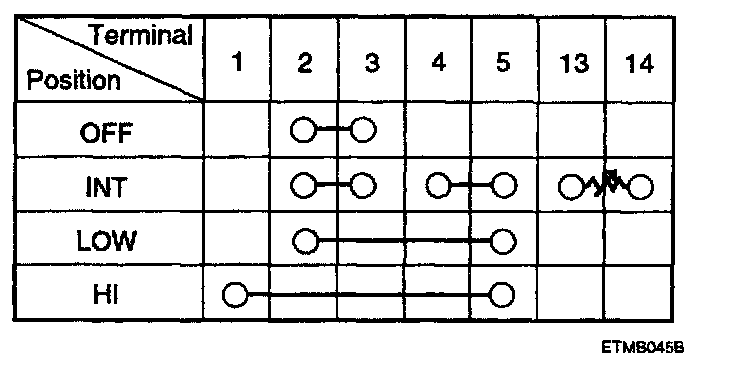

Wiper And Intermittent Volume Switch [M01-2]:

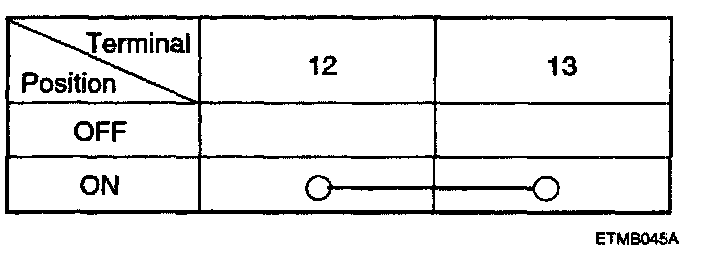

Washer Switch [M01-2]:

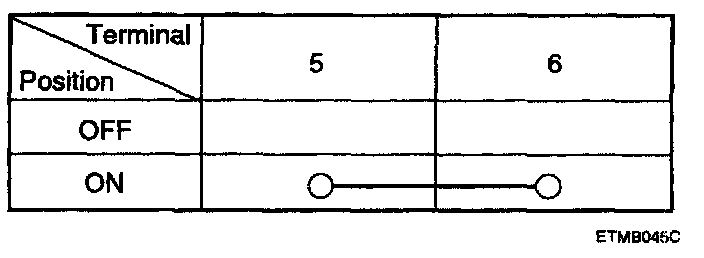

Mist Switch [M01-2]:
Check the continuity between the terminals while operating the switch.
