System Specifications

FRONT SUSPENSION SYSTEM:

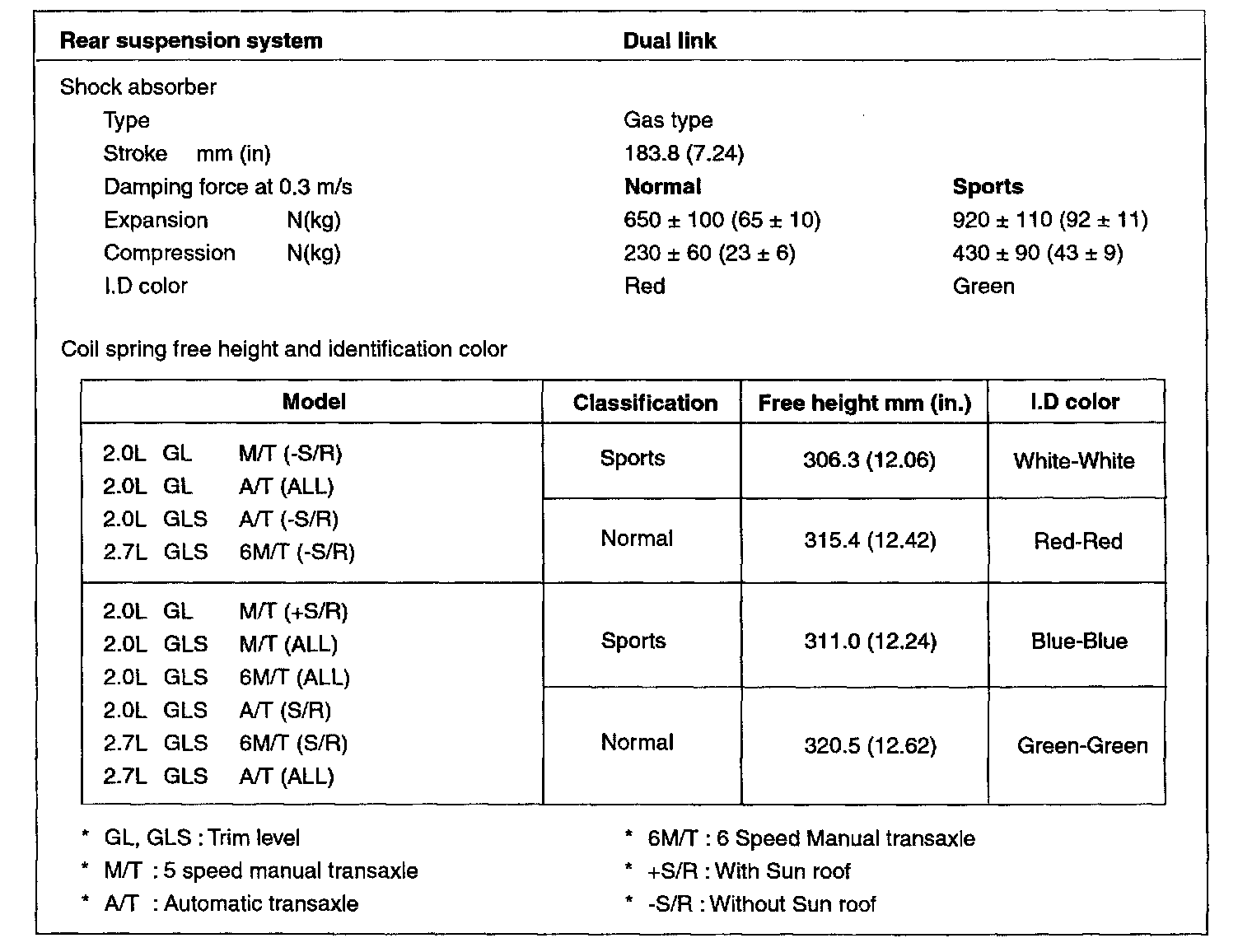

REAR SUSPENSION SYSTEM:

Alignment Specifications revised per TSB # 02-50-005

Tire Pressure PSI Front/Rear for P215/45ZR17 32/30
Tire Pressure PSI Front/Rear others 30/30
Total Toe (Cross):
Front 0 ± 2 mm (1.5 mm)
Rear 4 + 3 mm - 1 mm (2 mm)
Camber (Cross):
Front 0.22° ± 0.5° * (0.5°)
Rear - 1.18° ± 0.5° * (0.5°)
Caster (Cross):
Front 2.97° ± 0.5° * (0.5°)

* = Angle is not adjustable


ALIGNMENT

CAUTION: When rotating the "215/45 ZR17" Tires, ensure to follow the "ROTATION" direction marked on the sidewall of tires.

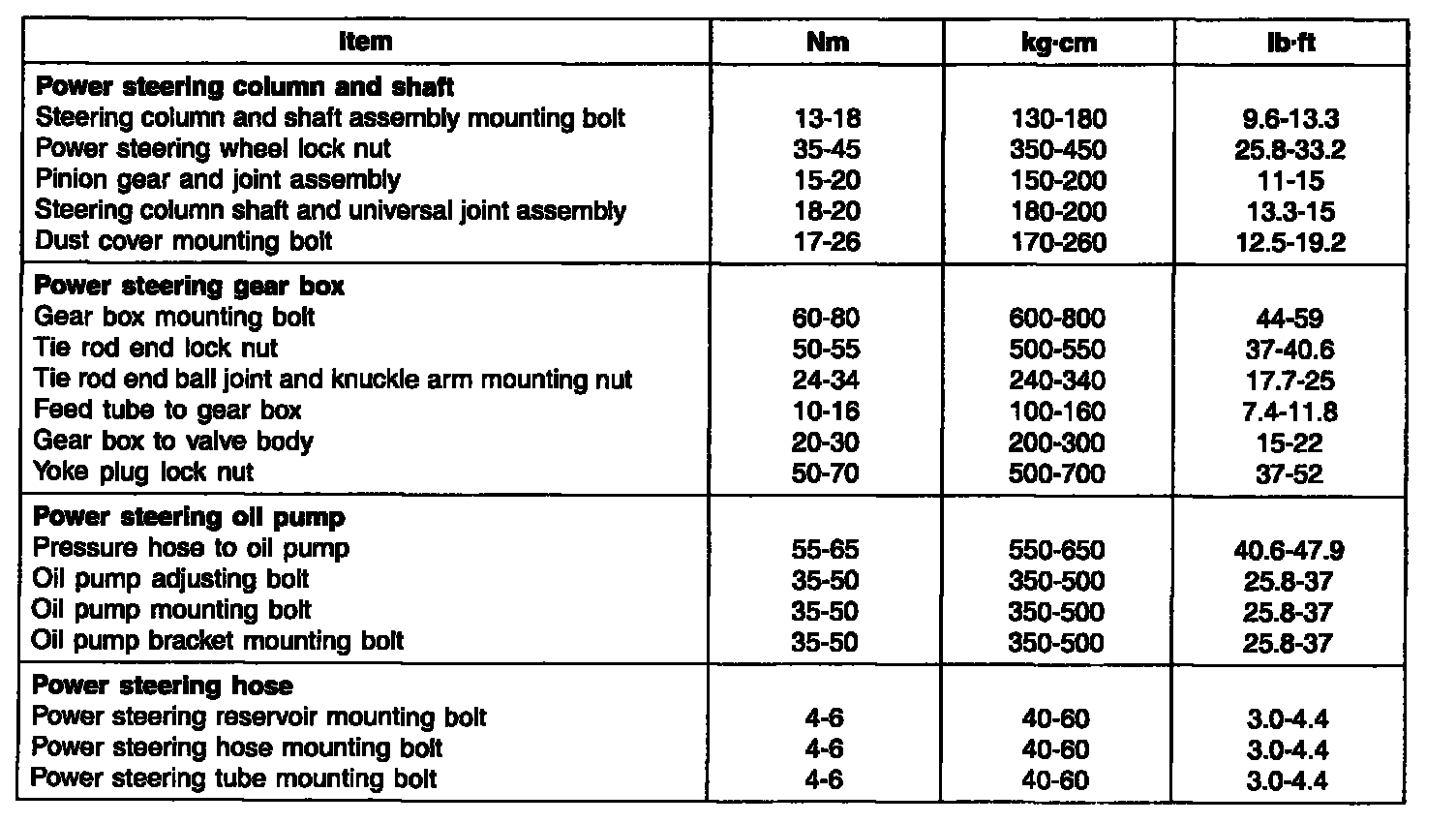

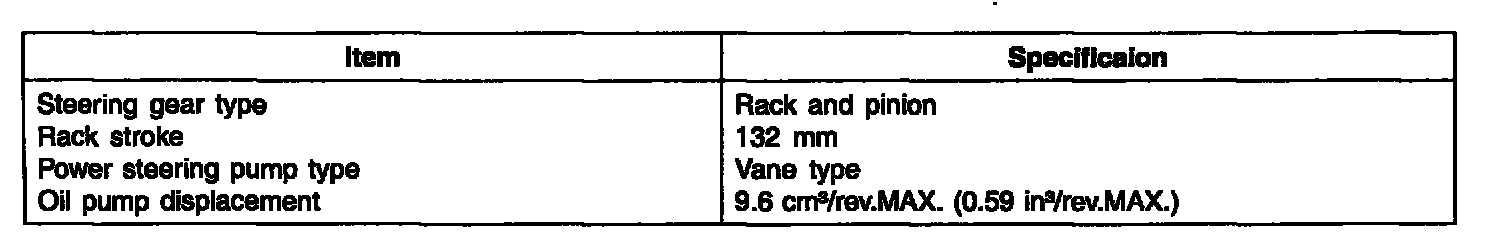

STEERING 1 Of 3:

STEERING 2 Of 3:

STEERING 3 Of 3:

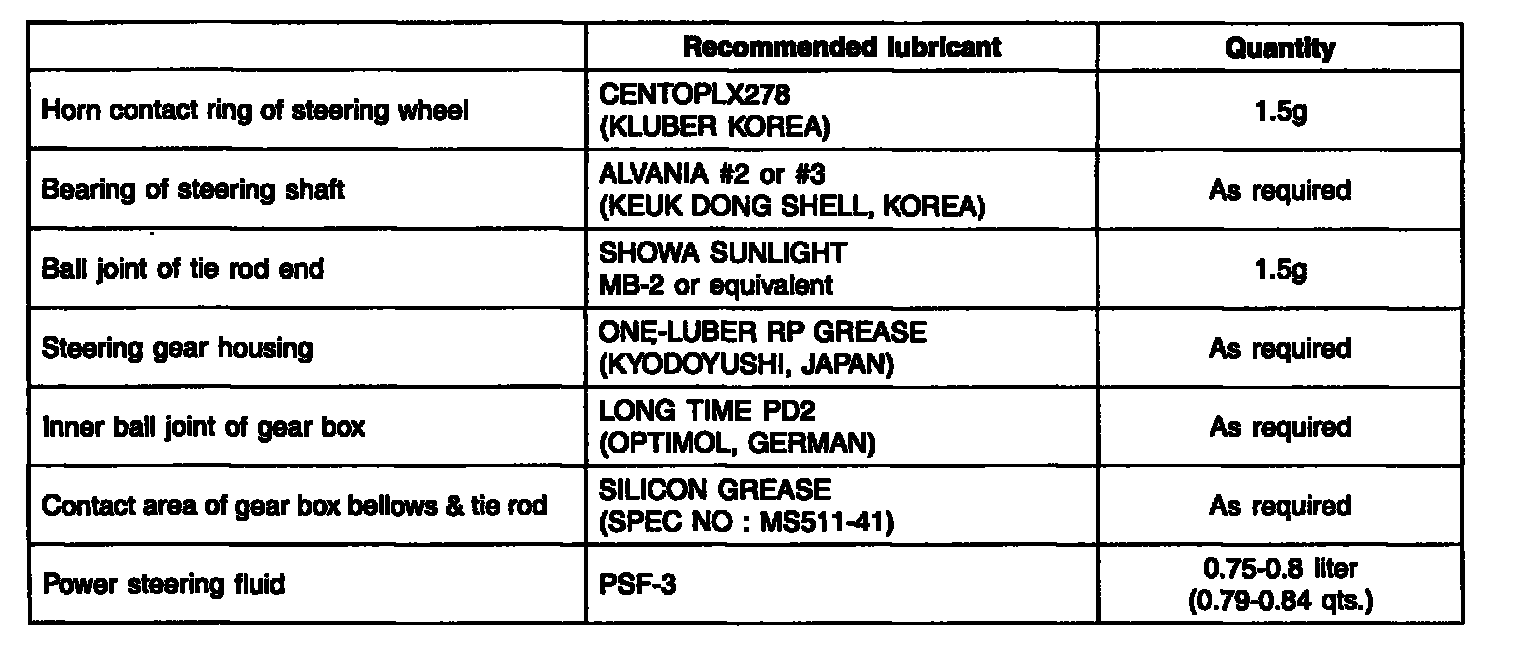

STEERING LUBRICANTS:

STEERING



SUSPENSION

FRONT SUSPENSION SYSTEM:

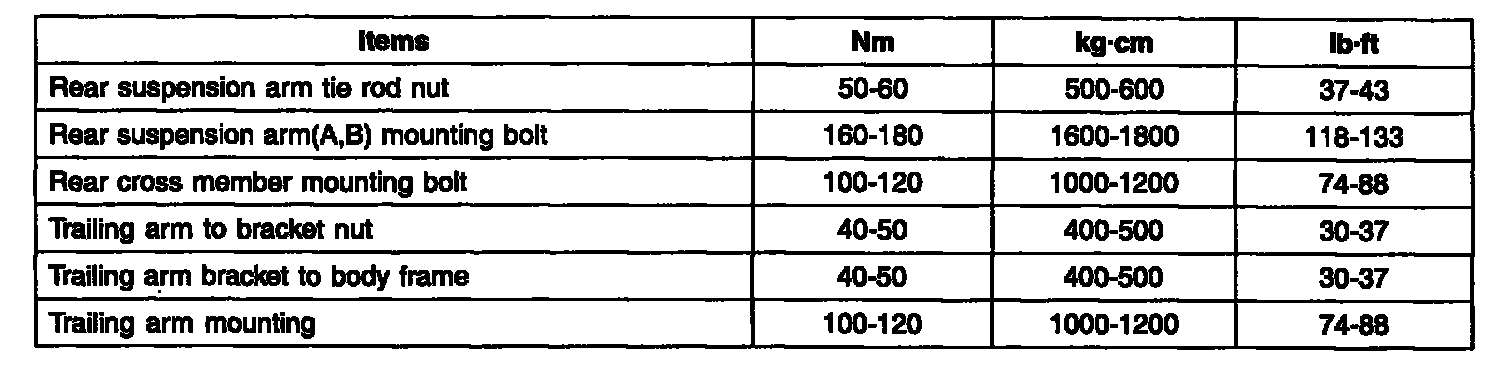

REAR SUSPENSION SYSTEM:

REAR SUSPENSION SYSTEM:

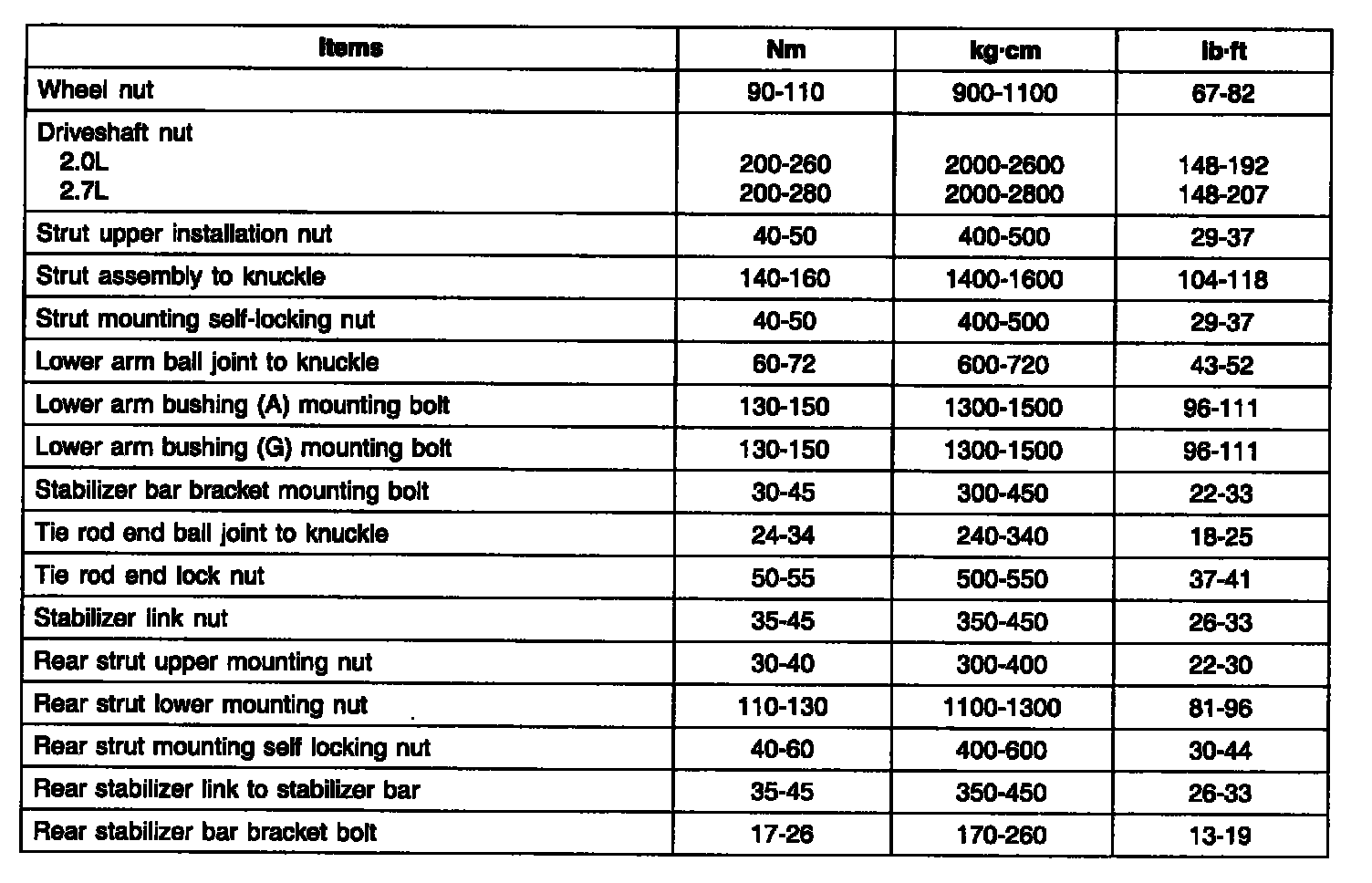

ALIGNMENT and TIRES:

CAUTION: When rotating the "215/45 ZR17" Tires, ensure to follow the "ROTATION" direction marked on the sidewall of tires (See WHEEL ROTATION).

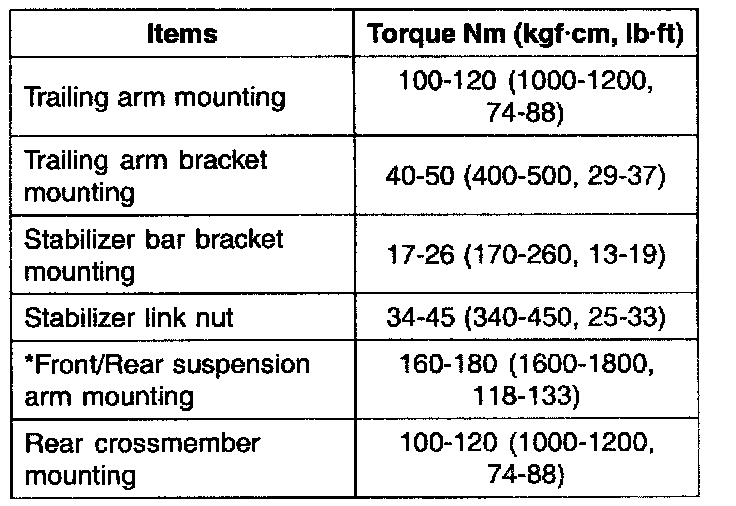

REAR SUSPENSION SYSTEM:

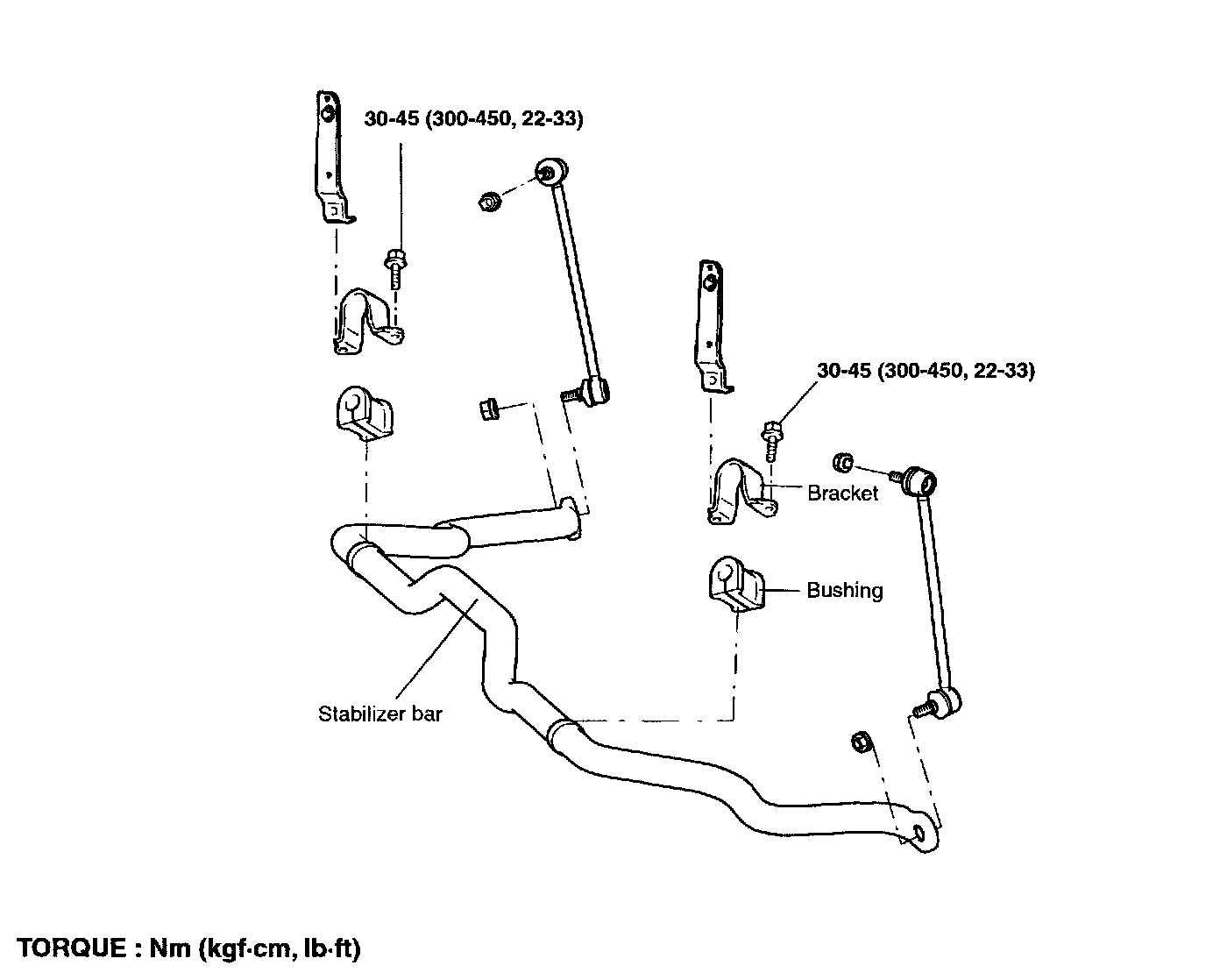

FRONT STABILIZER BAR:

LOWER ARM (Front):

FRONT STRUT ASSEMBLY:

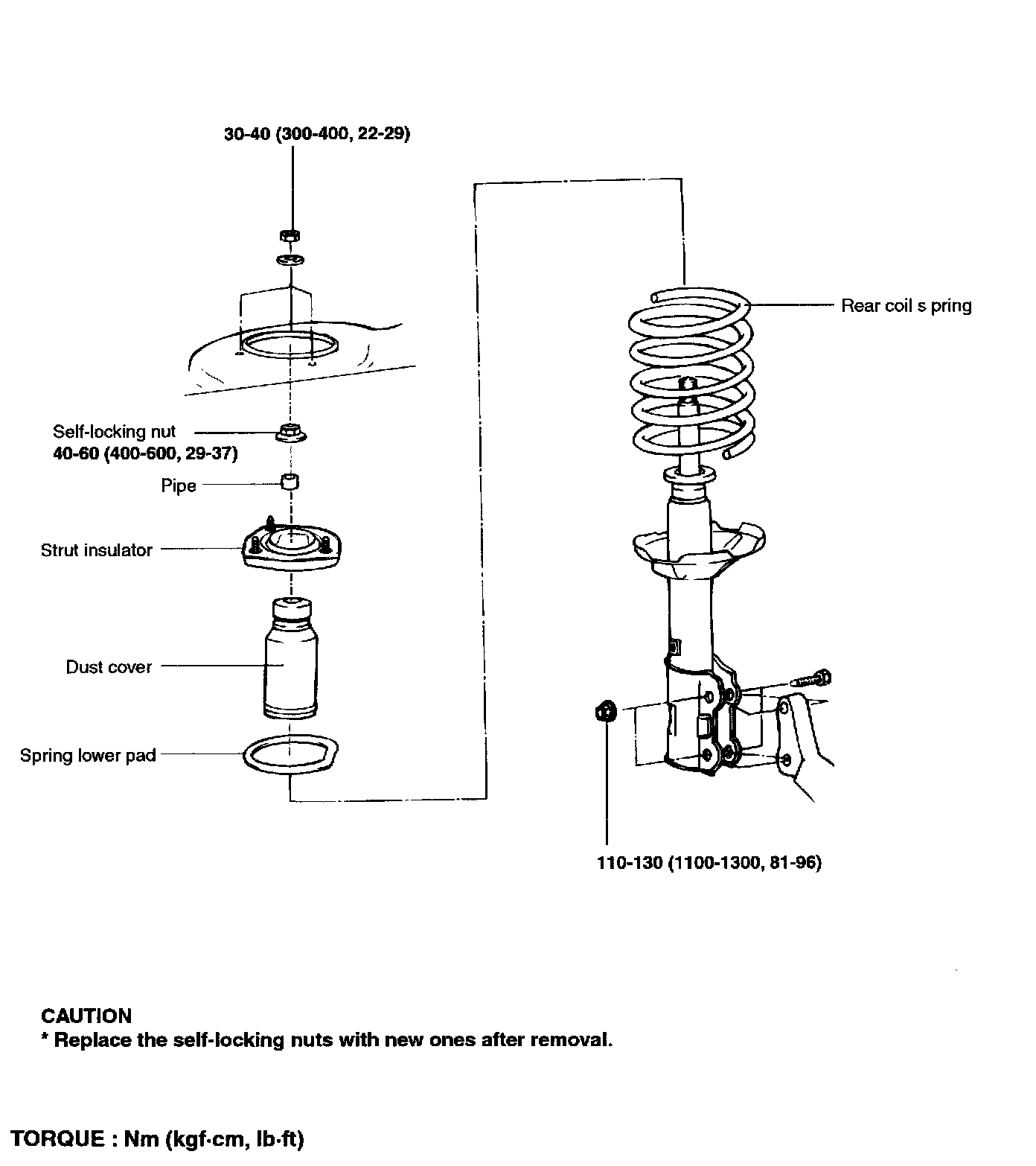

REAR STRUT:

CAUTION: Replace the self-locking nuts with new ones after removal.
