Console

REMOVAL AND INSTALLATION

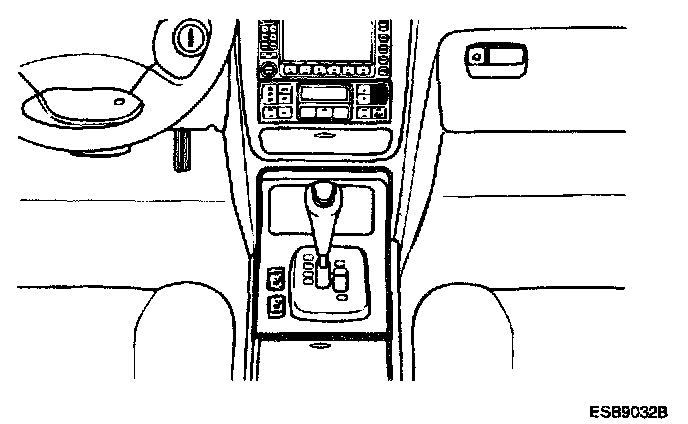

1. Remove the console upper cover and disconnect the switch connectors.

CAUTION: When prying the console upper cover loose with a fiat-bladed screwdriver, wrap it with a shop towel to prevent damage.

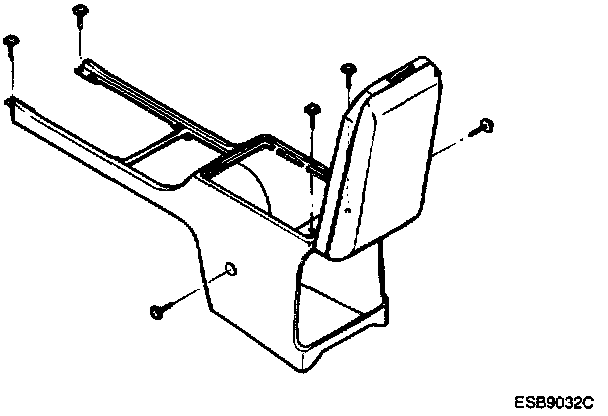

2. Remove the floor console.






3. Installation is the reverse of removal.
