Engine Control Module

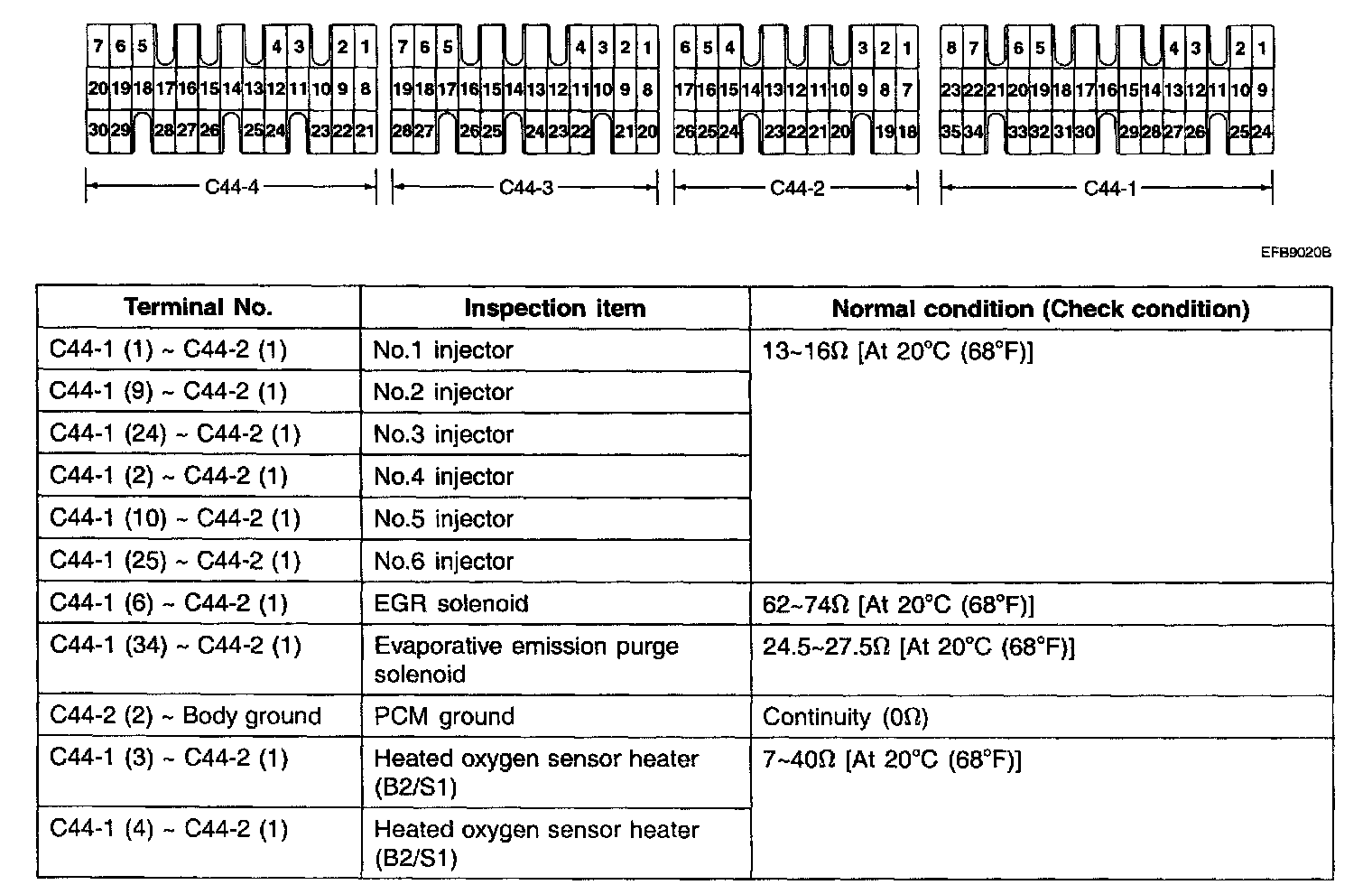

Power-Train Control Module(PCM) Connector Terminal Arrangement Part 2:

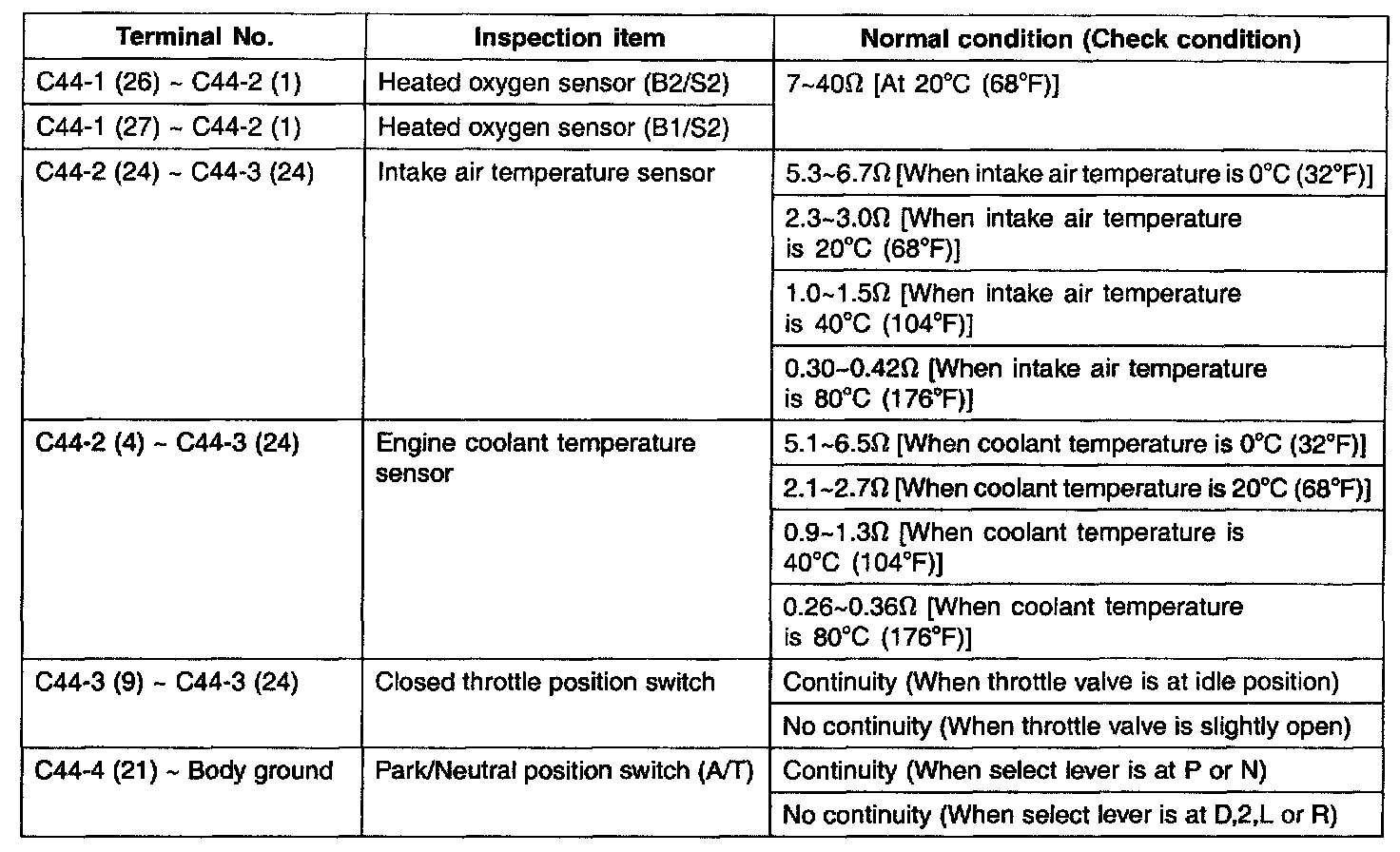

Power-Train Control Module(PCM) Connector Terminal Arrangement Part 3:

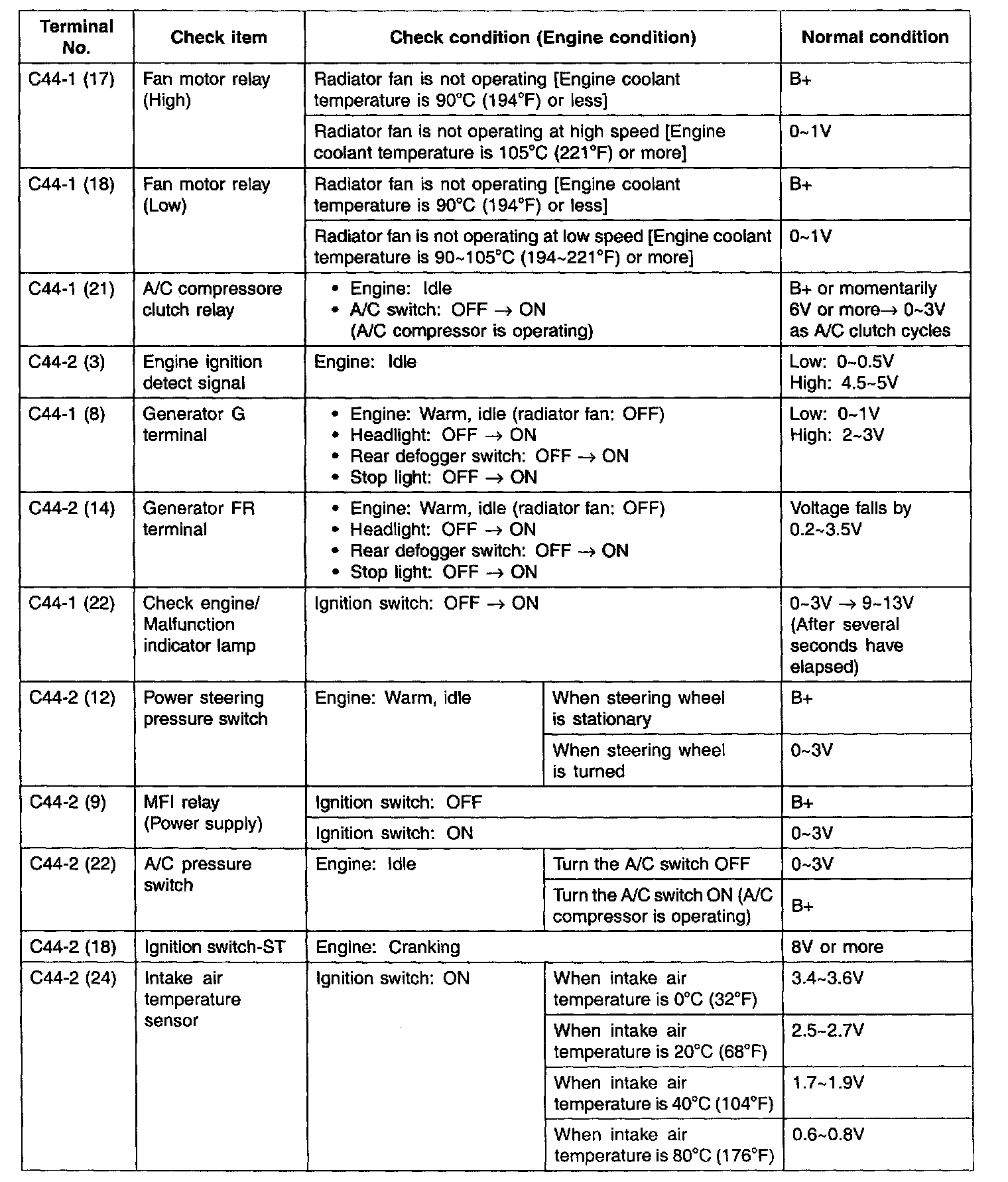

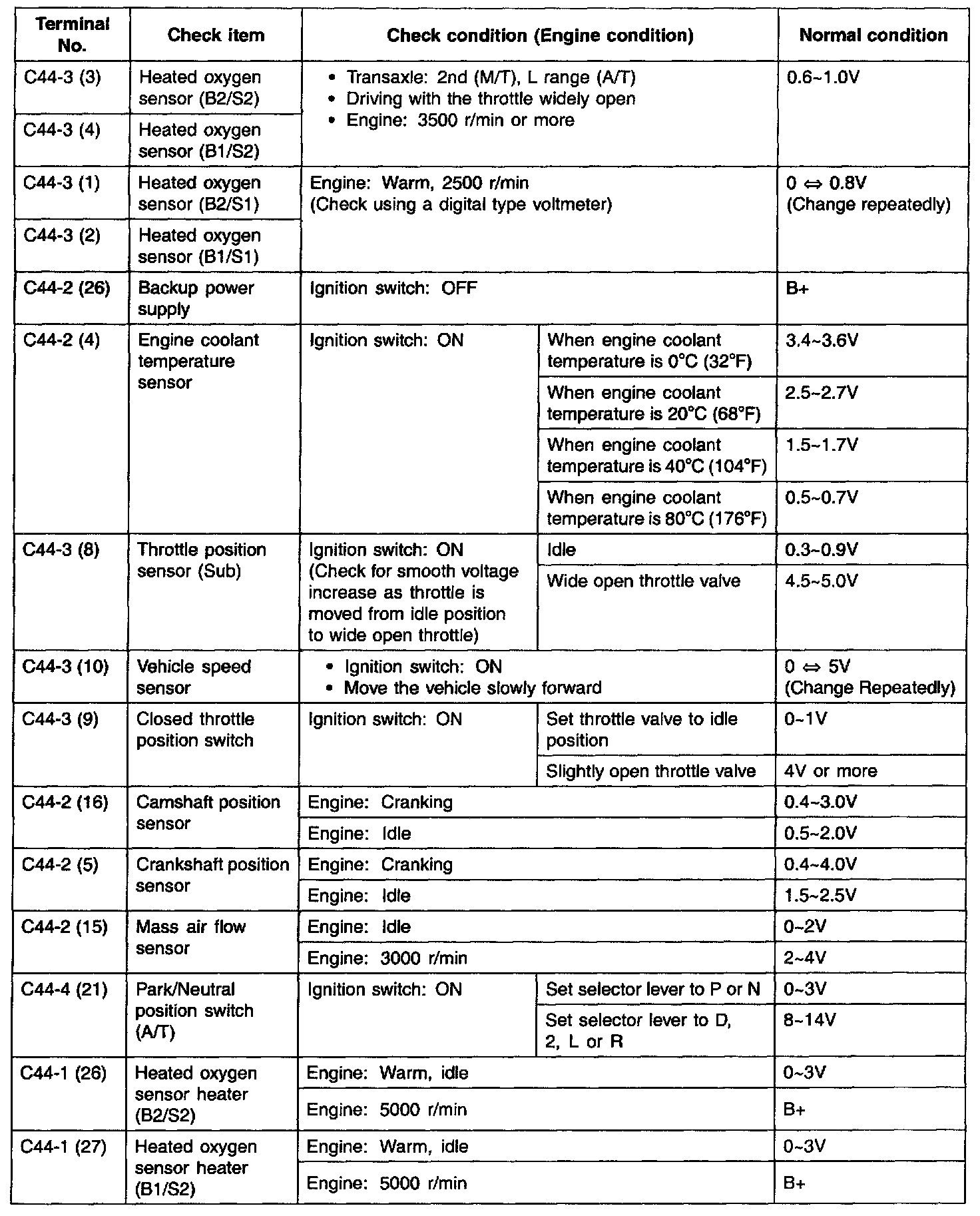

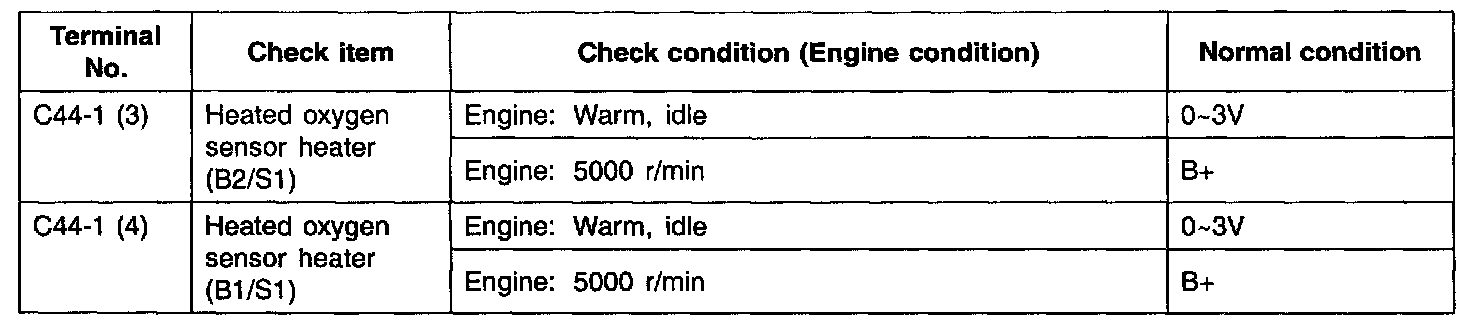

Power-Train Control Module(PCM) Connector Terminal Arrangement Part 4:

PCM Configuration:
