Power Outside Mirrors

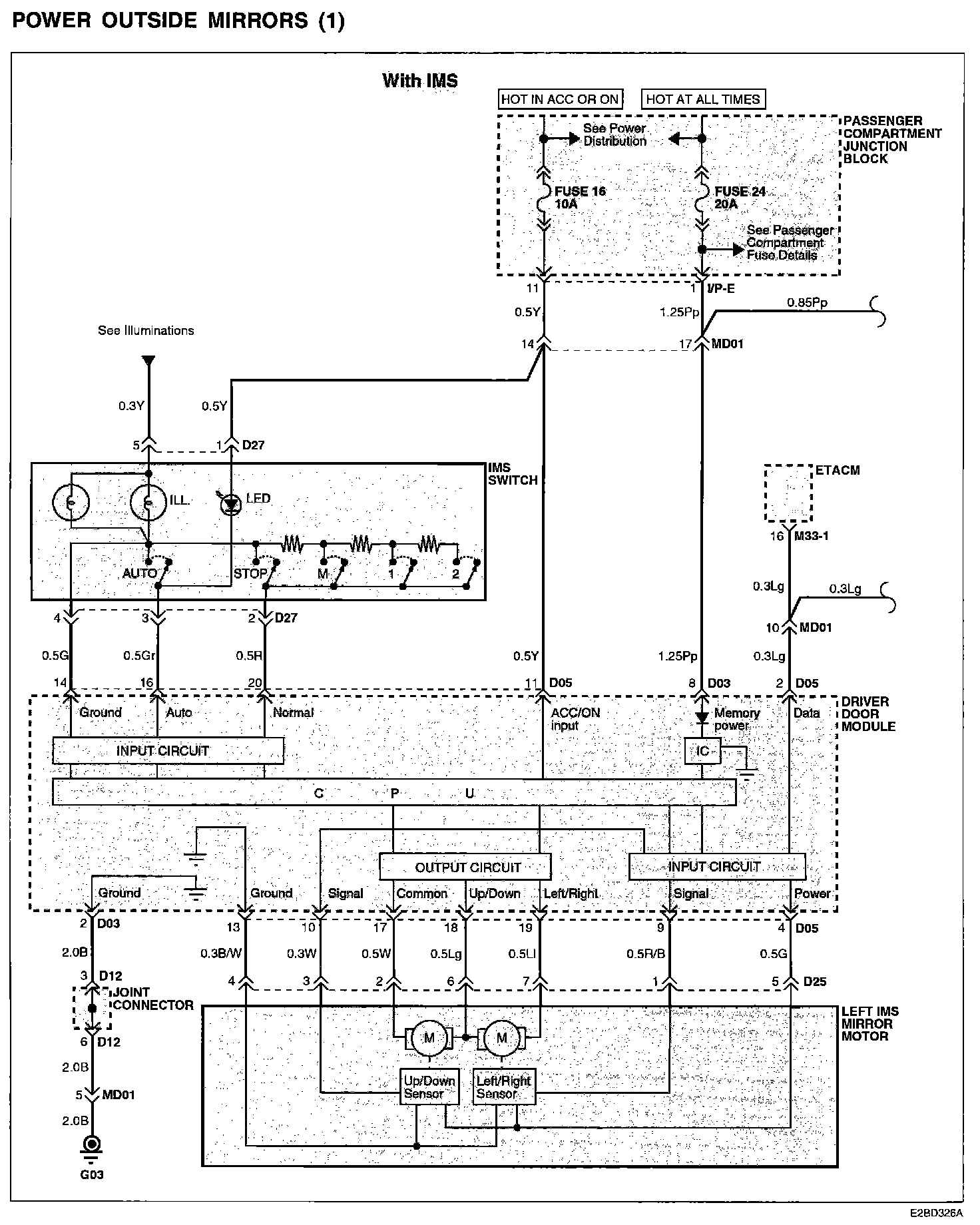

Power Outside Mirrors (1):

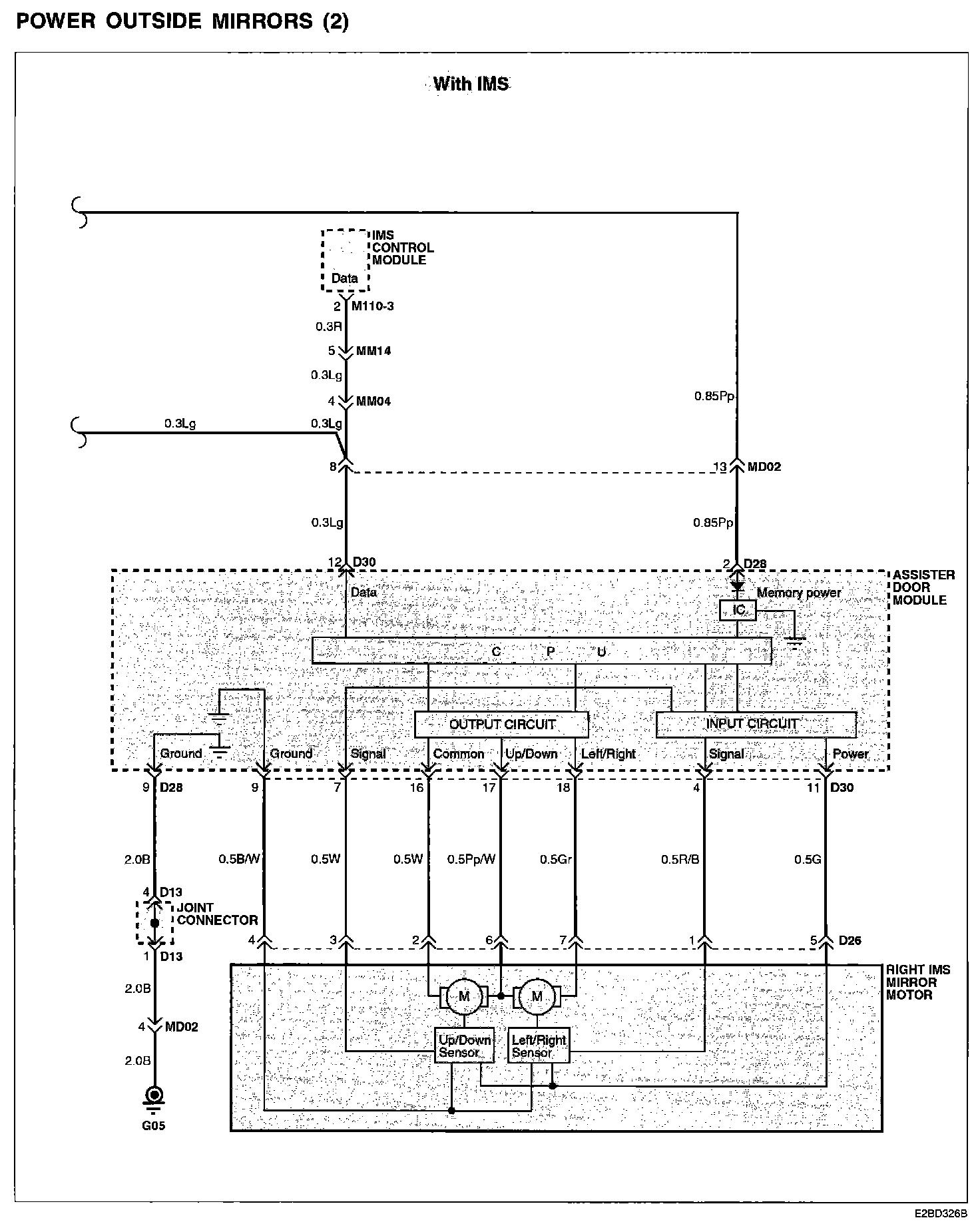

Power Outside Mirrors (2):

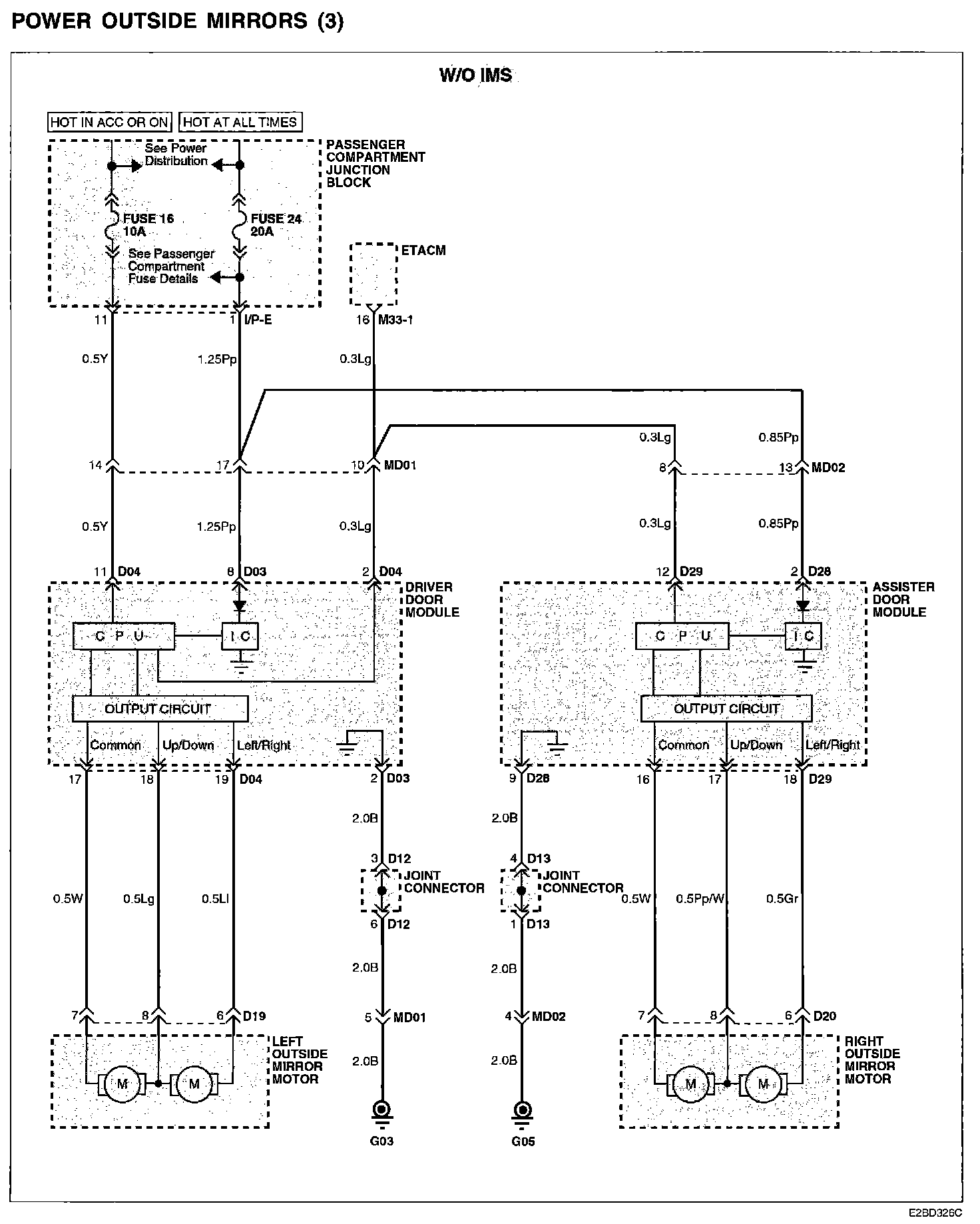

Power Outside Mirrors (3):

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
