MFI Control System (5)

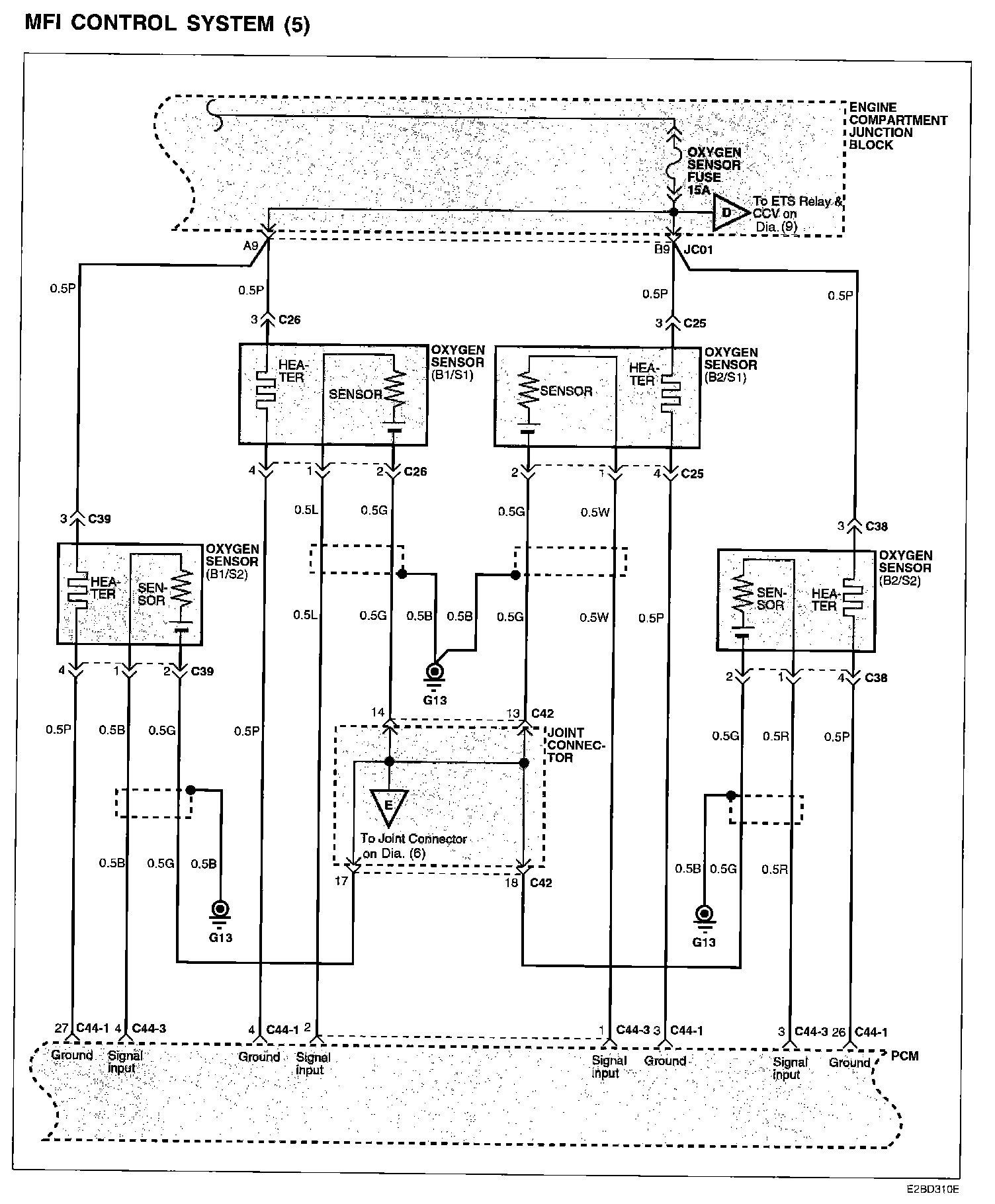

MFI Control System (5):






Next Diagram MFI Control System (6)

Previous Diagram MFI Control System (4)

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
