Radio, Stereo, and Compact Disc

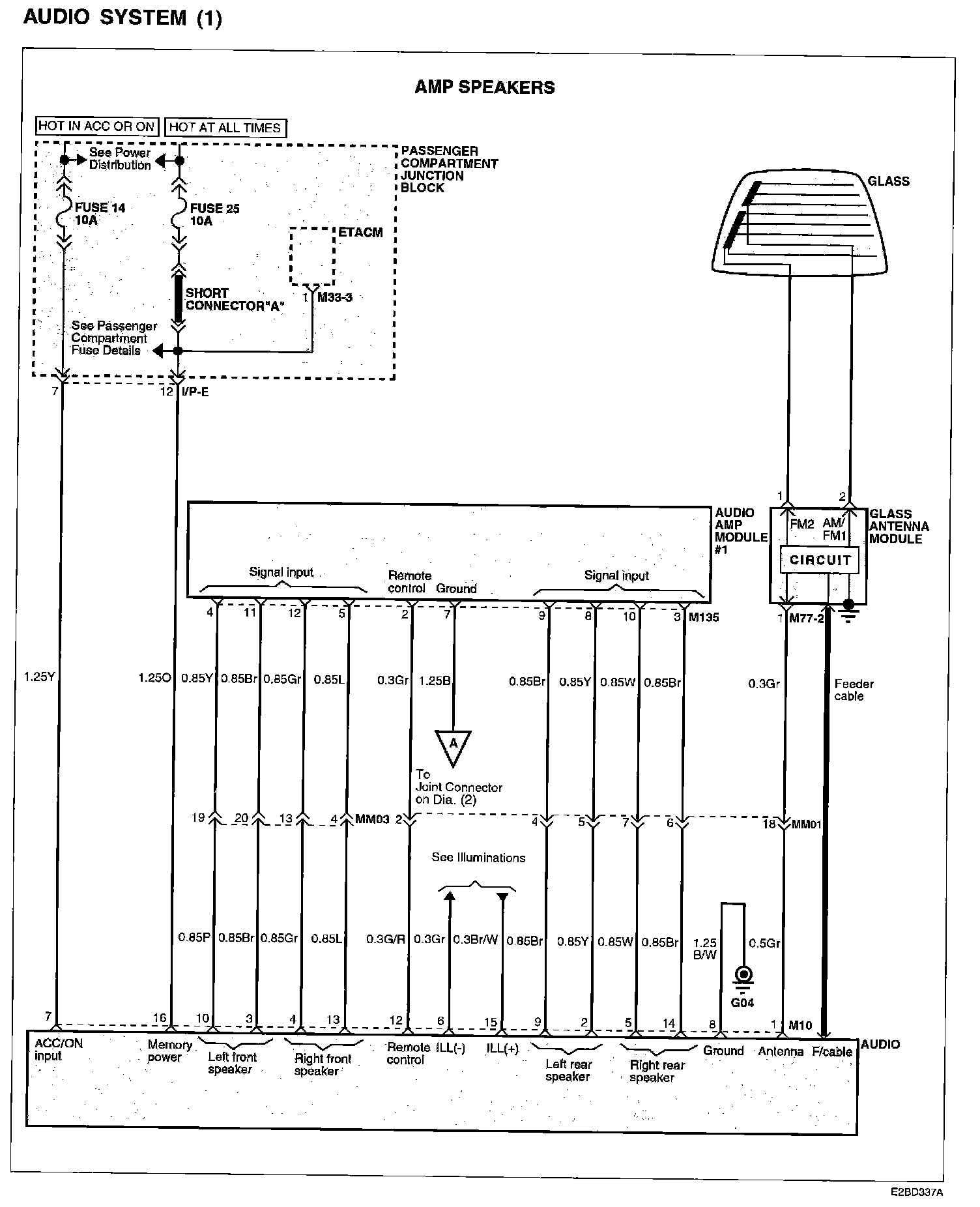

Audio System (1):

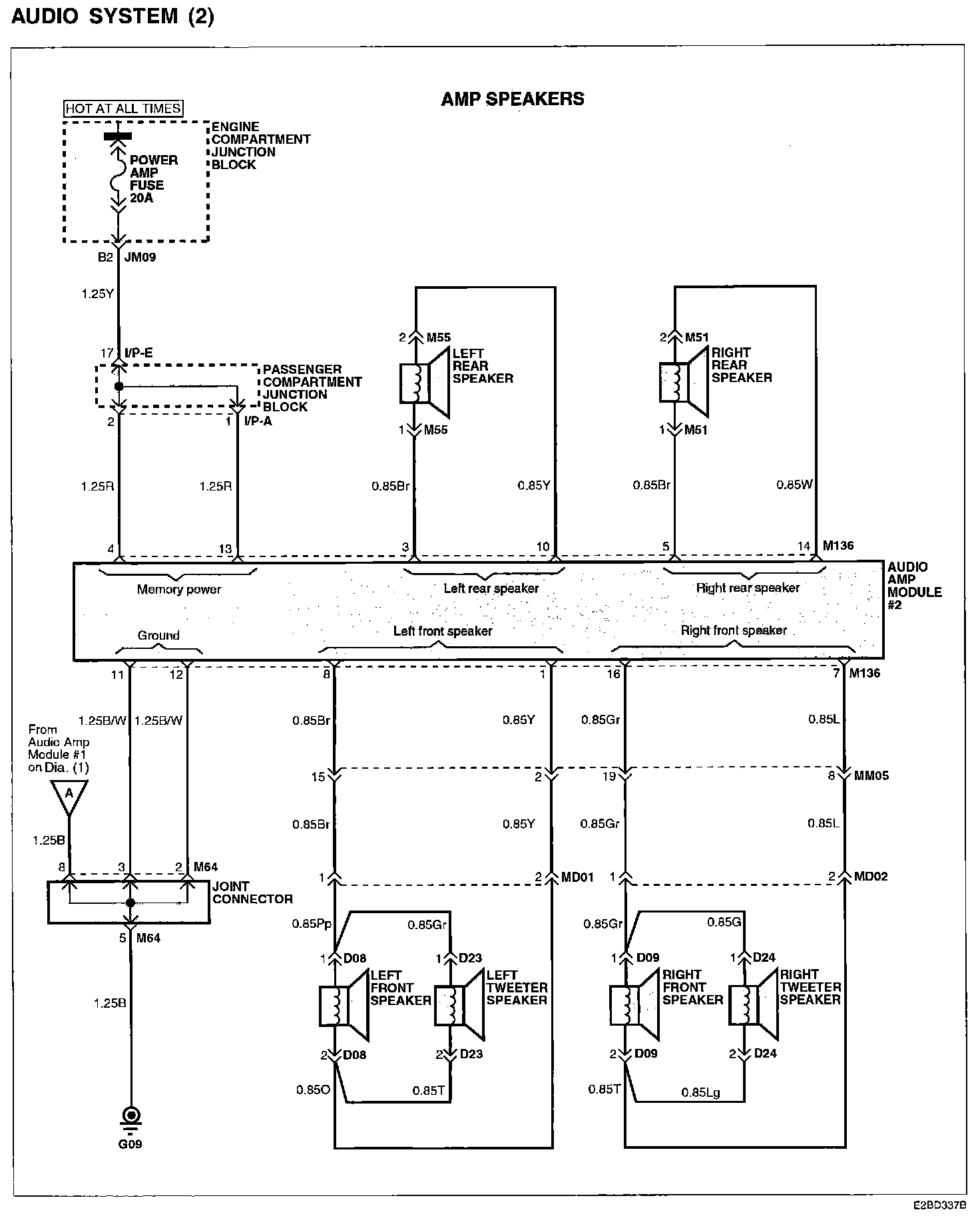

Audio System (2):

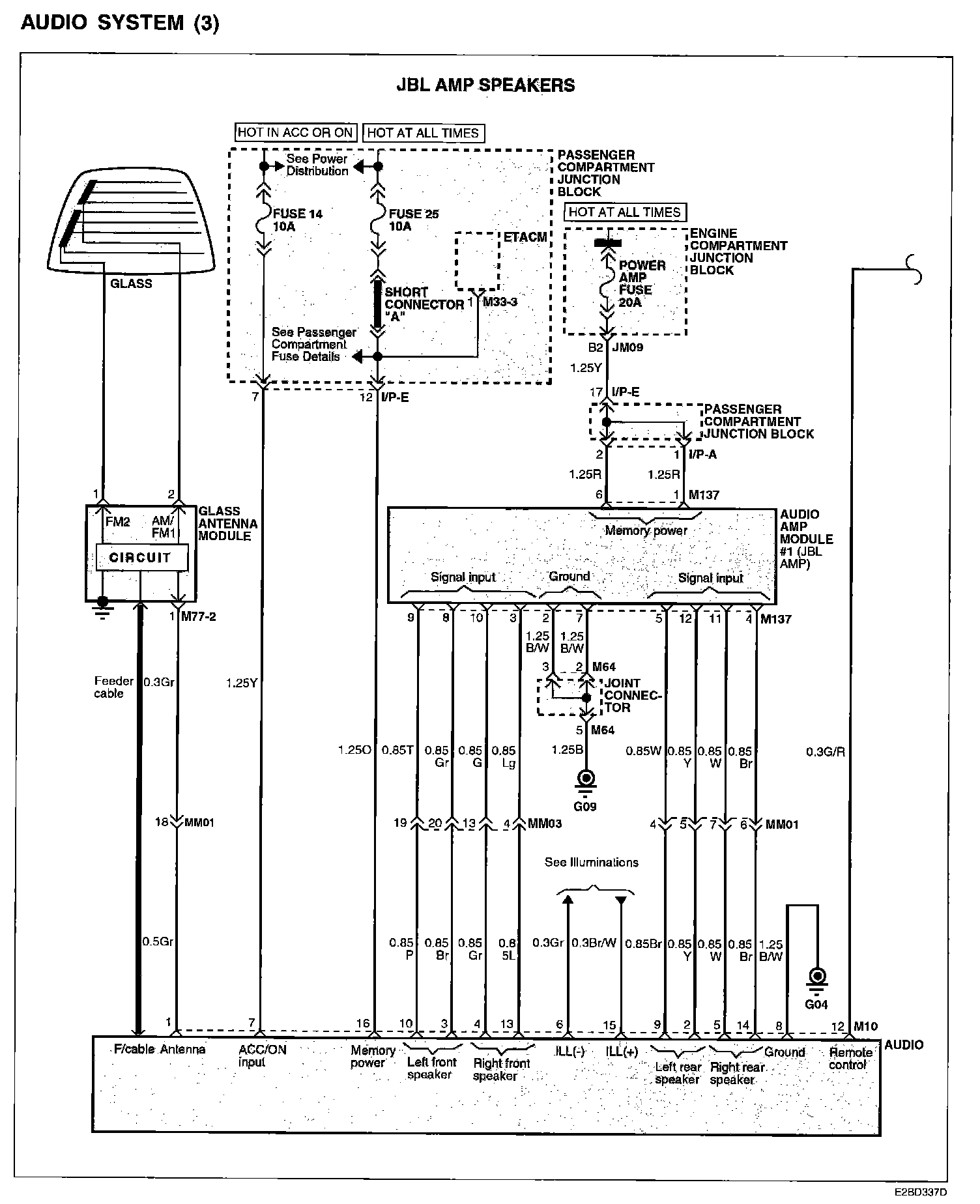

Audio System (3):

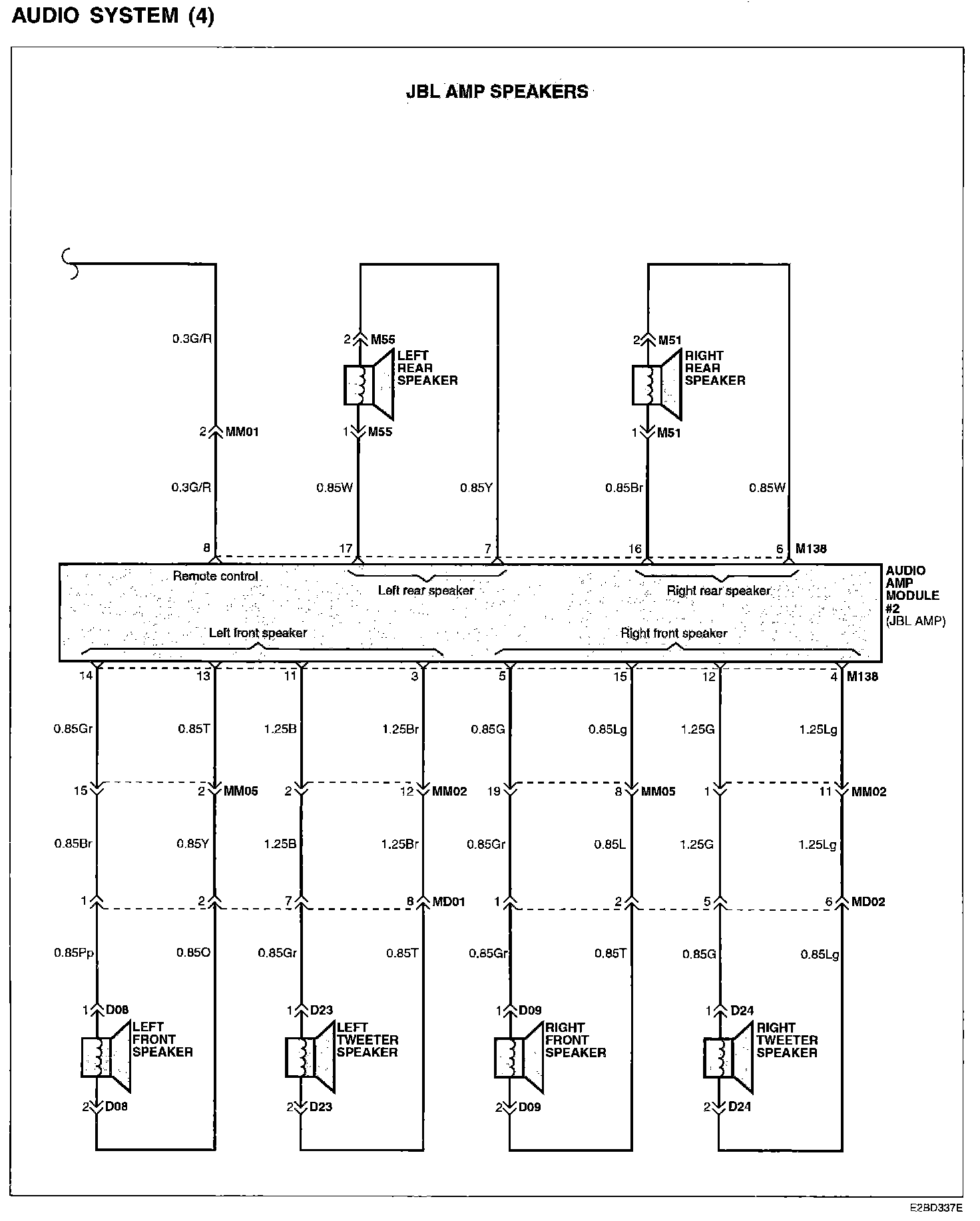

Audio System (4):

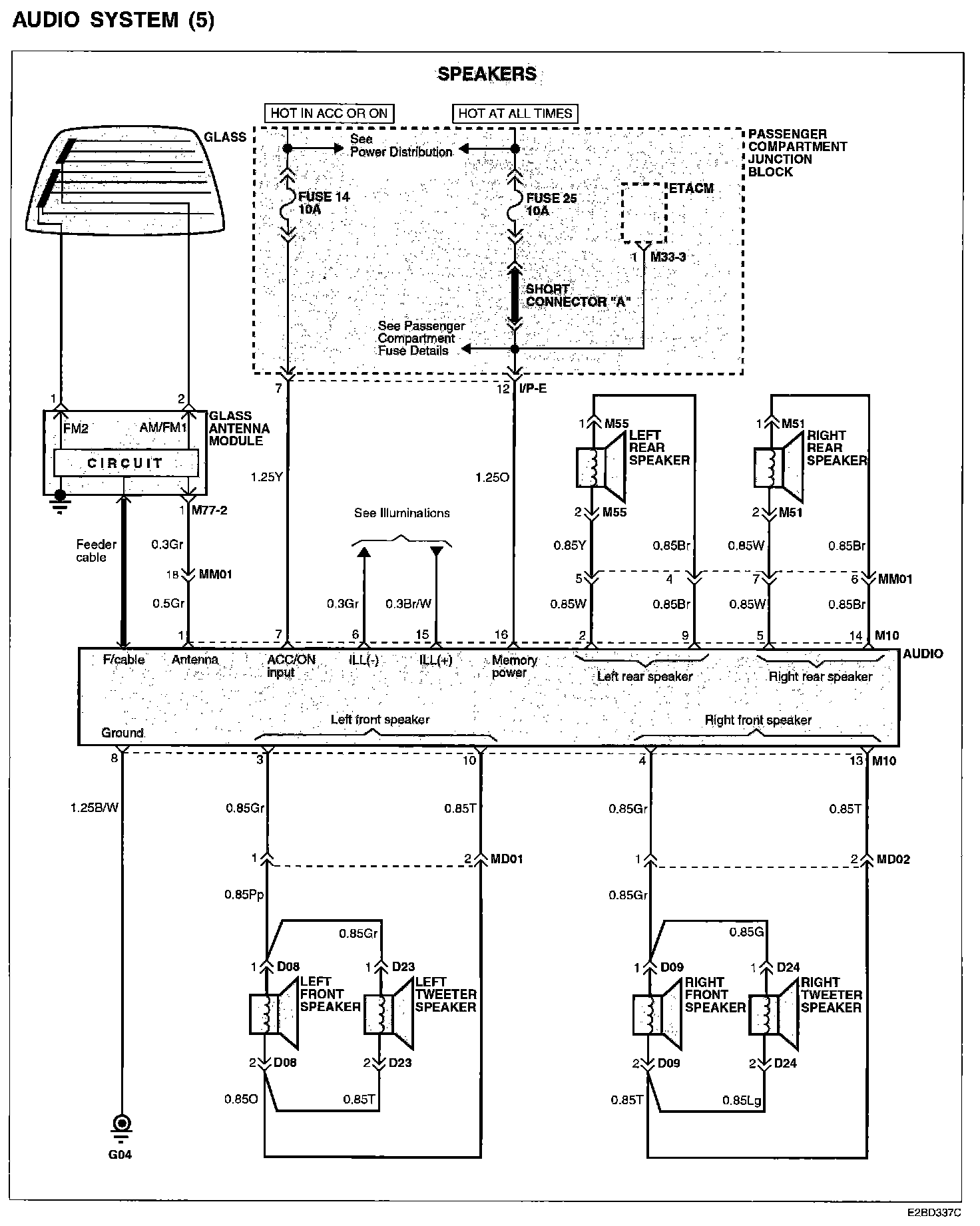

Audio System (5):

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
