Electronic Brake Control Module
Electronic Brake Control Module

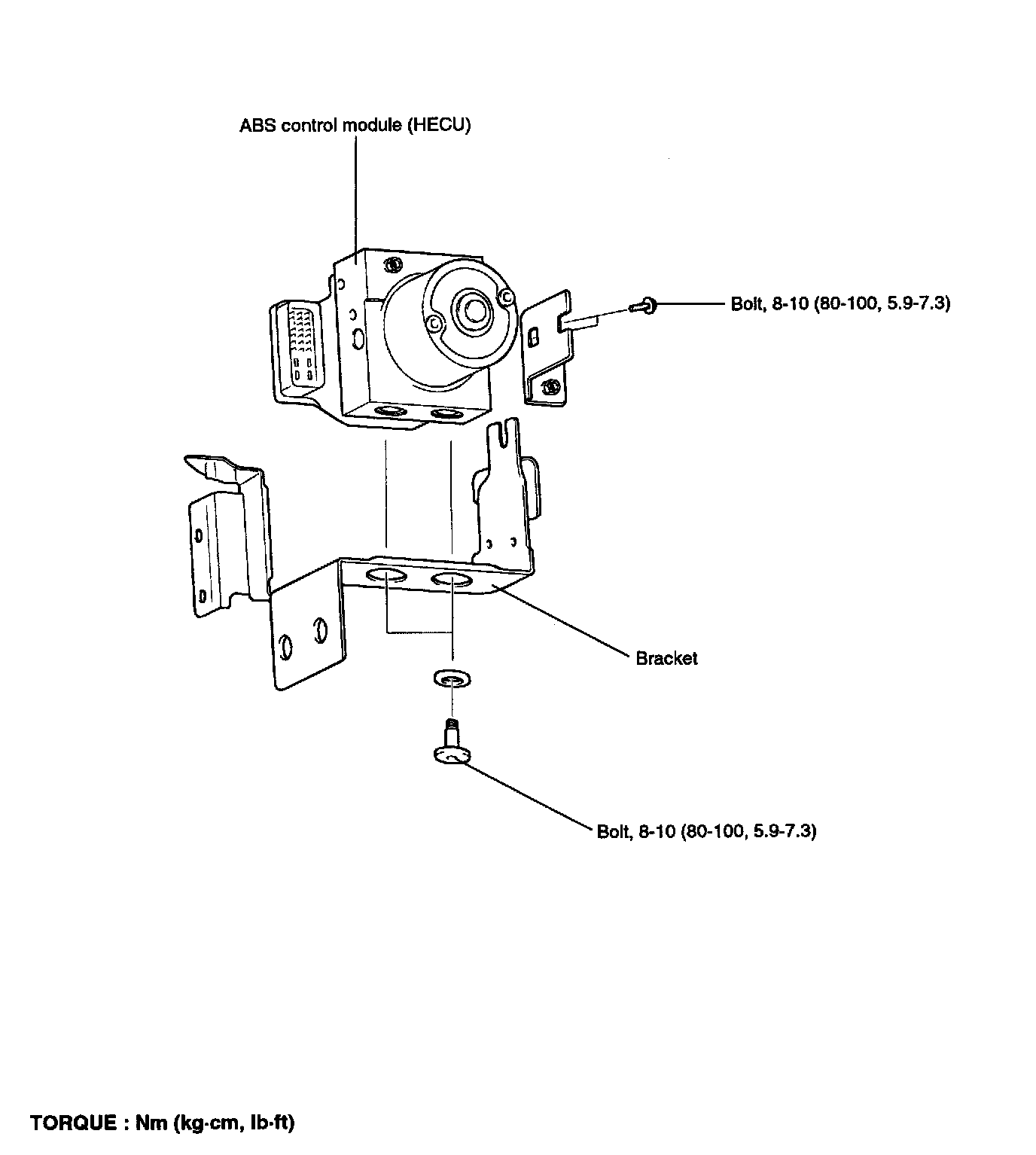

ANTI-LOCK BRAKING SYSTEM CONTROL MODULE
COMPONENTS
