Home
>>
Hyundai
>>
2004
>>
XG 350 V6-3.5L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Main Harness
Main Harness
Main Harness View:

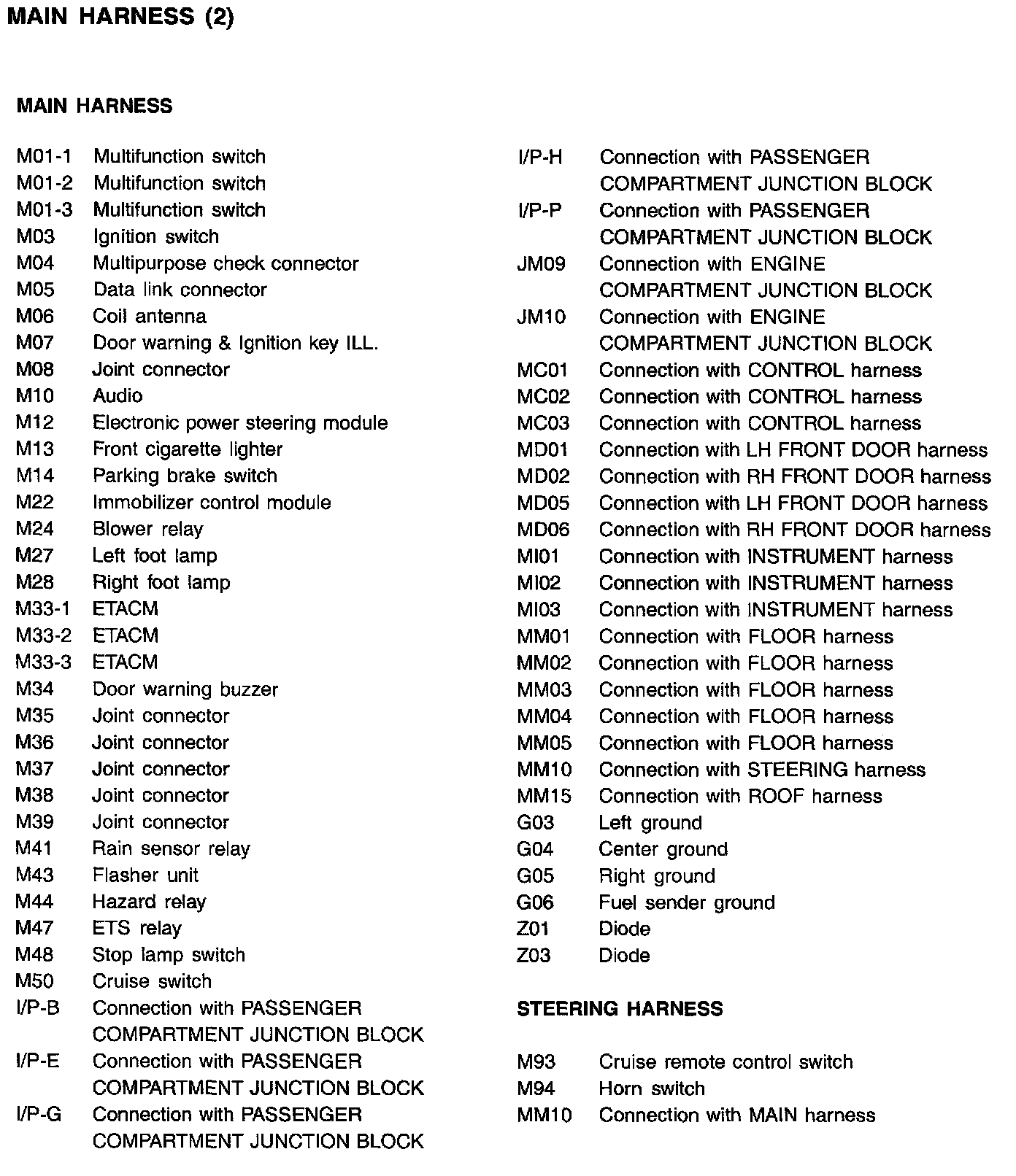

Main Harness Index:

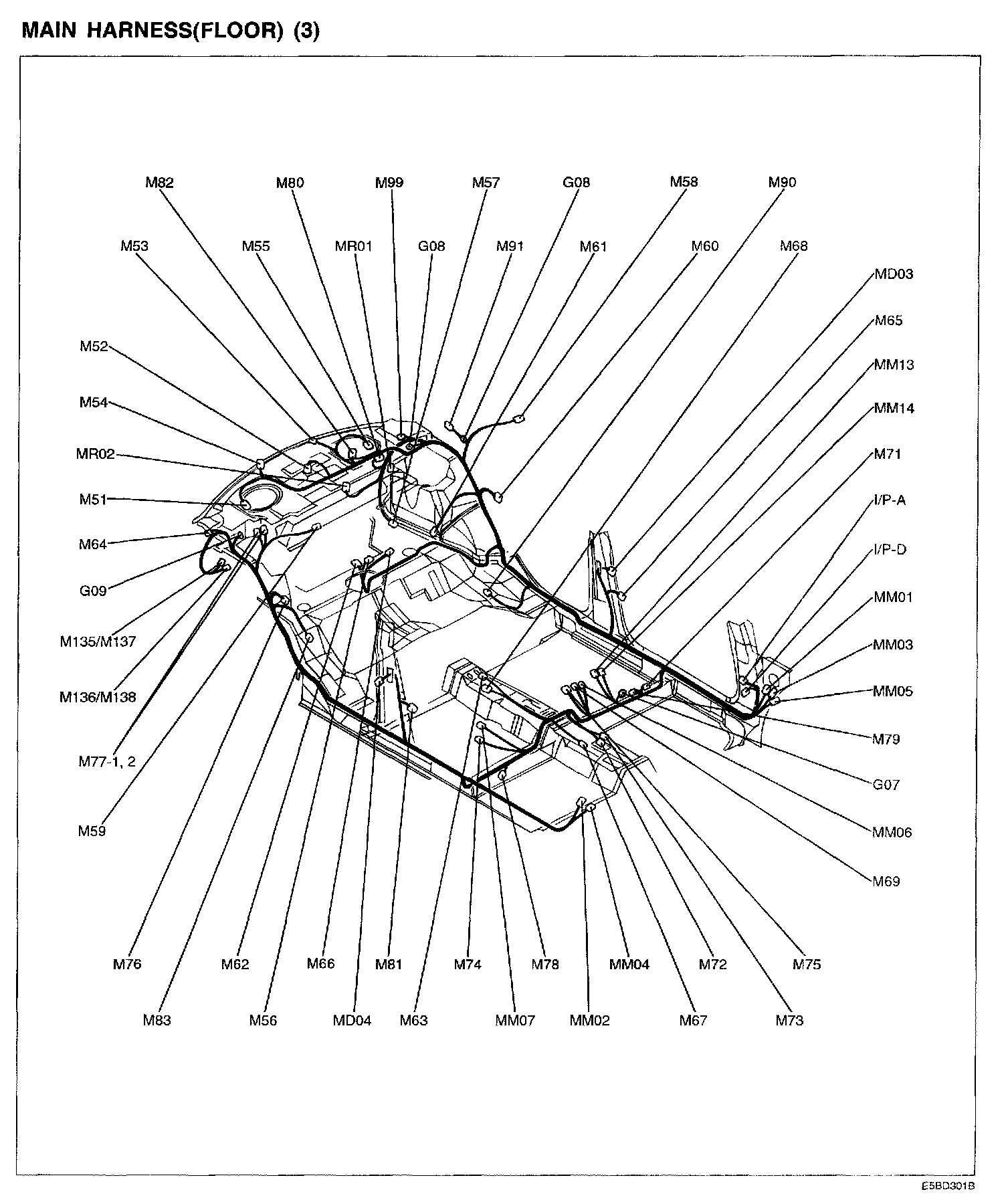

Main Harness (Floor) View:

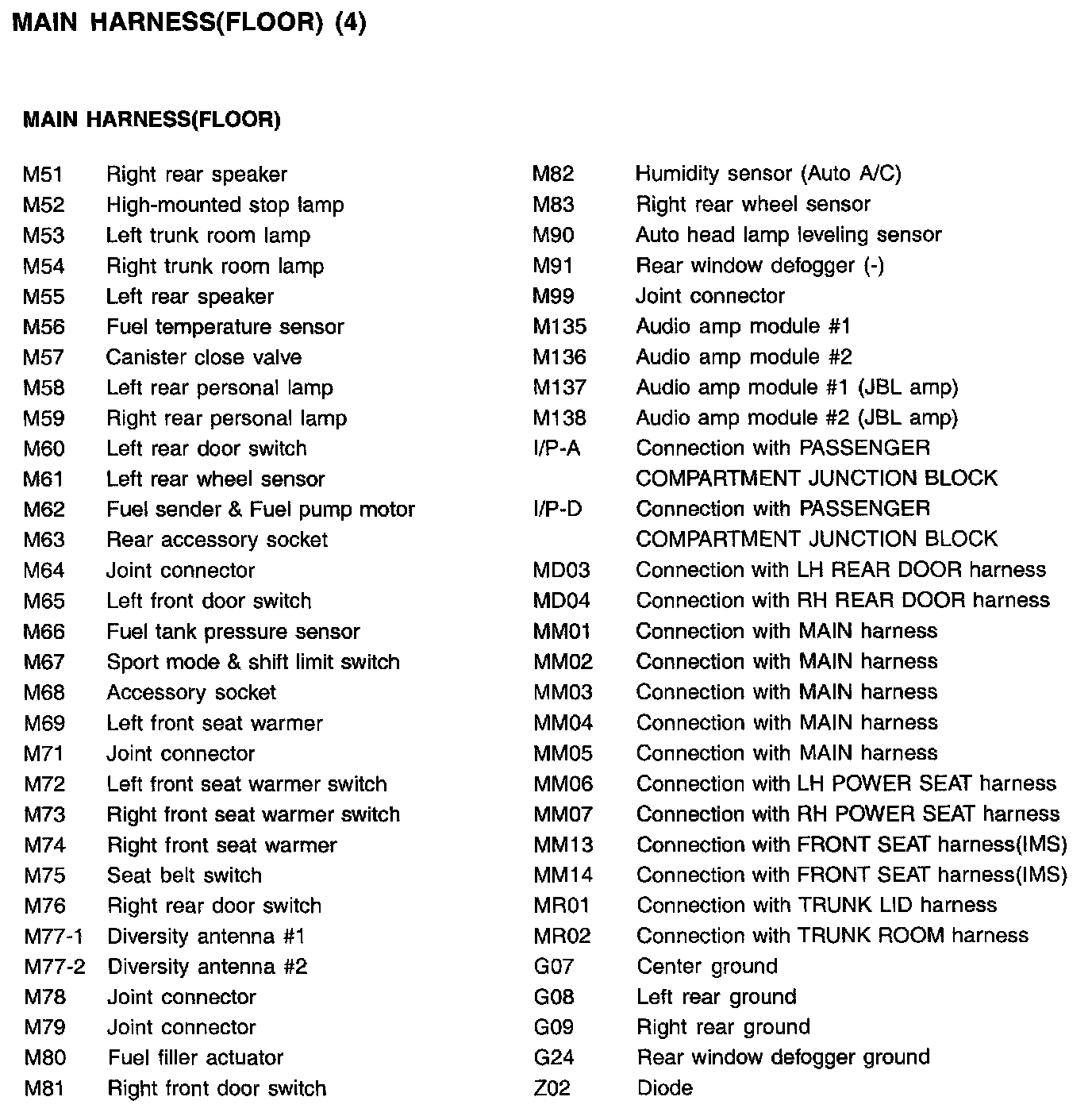

Main Harness (Floor) Index:

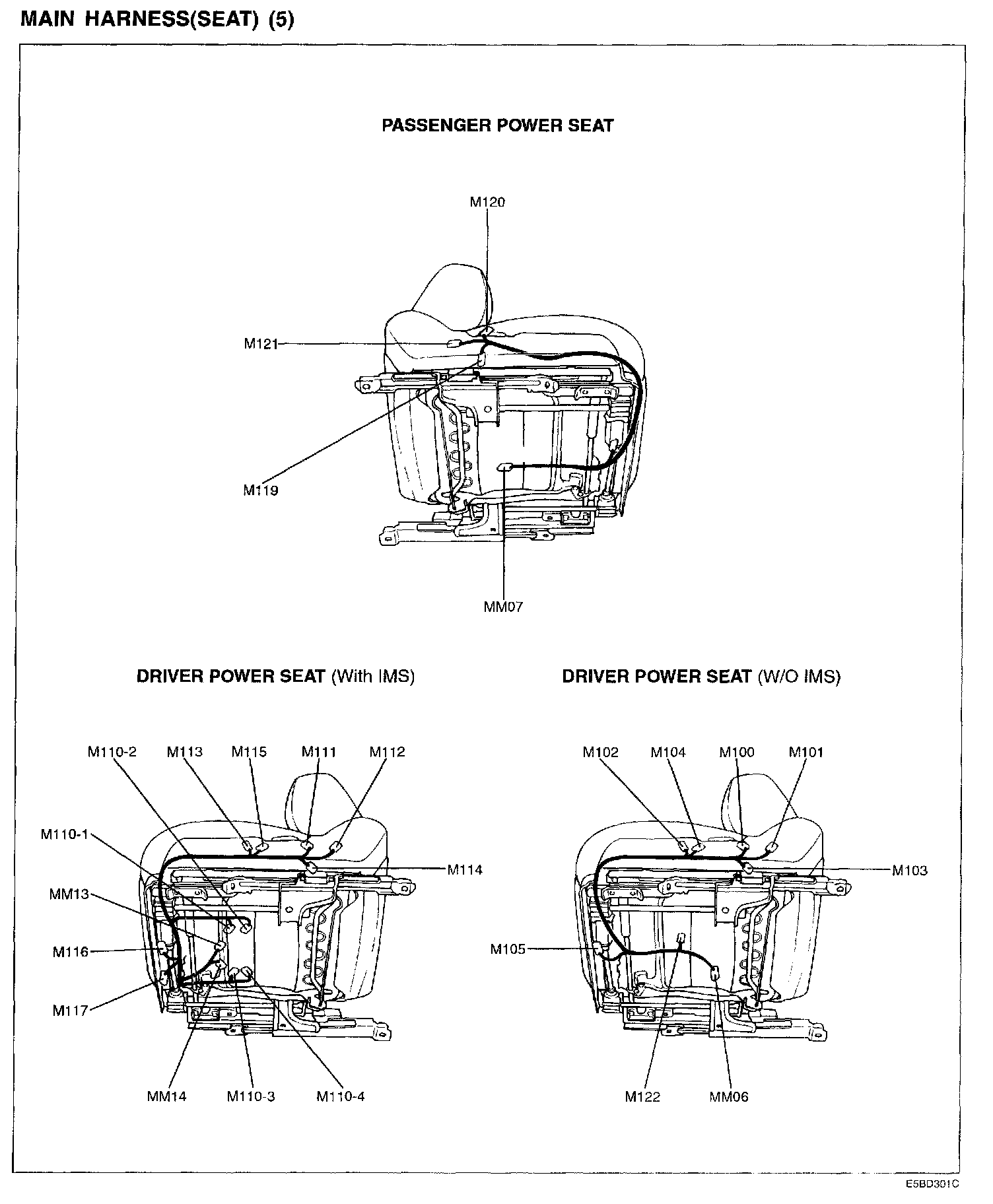

Main Harness (Seat) View:

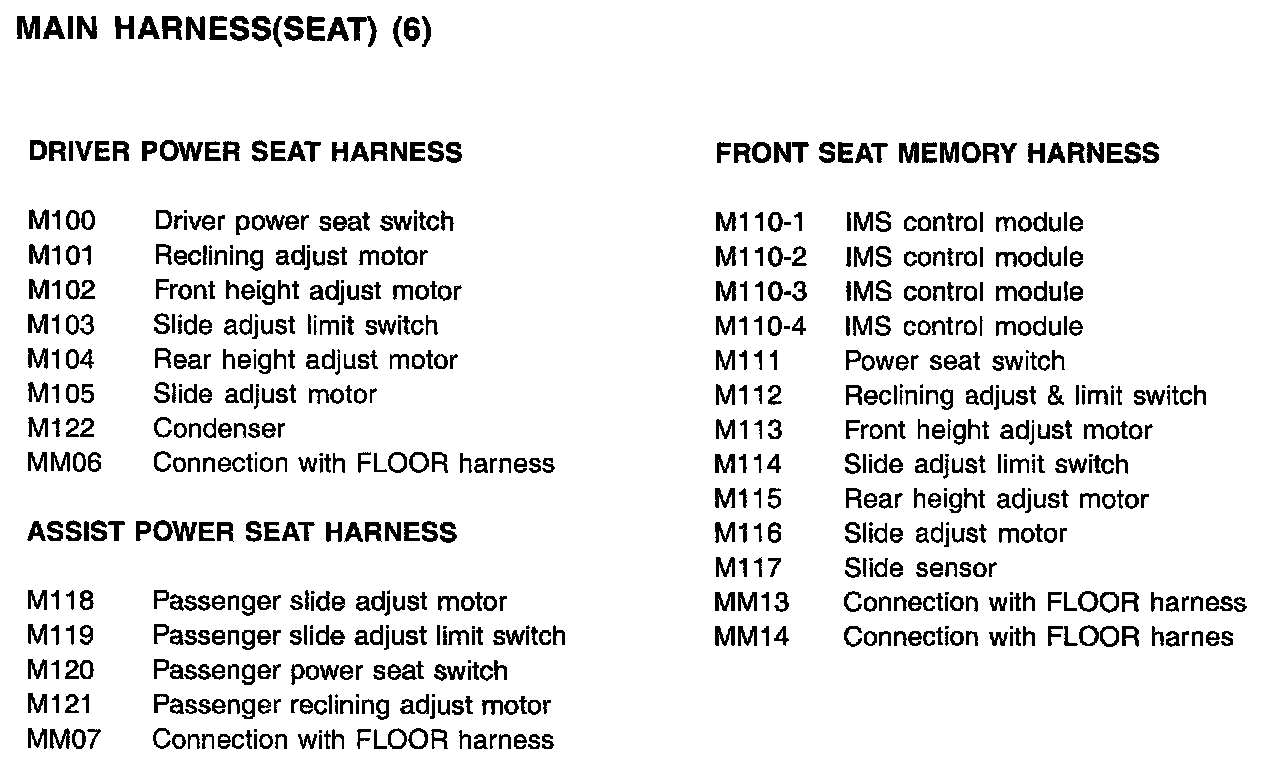

Main Harness (Seat) Index:

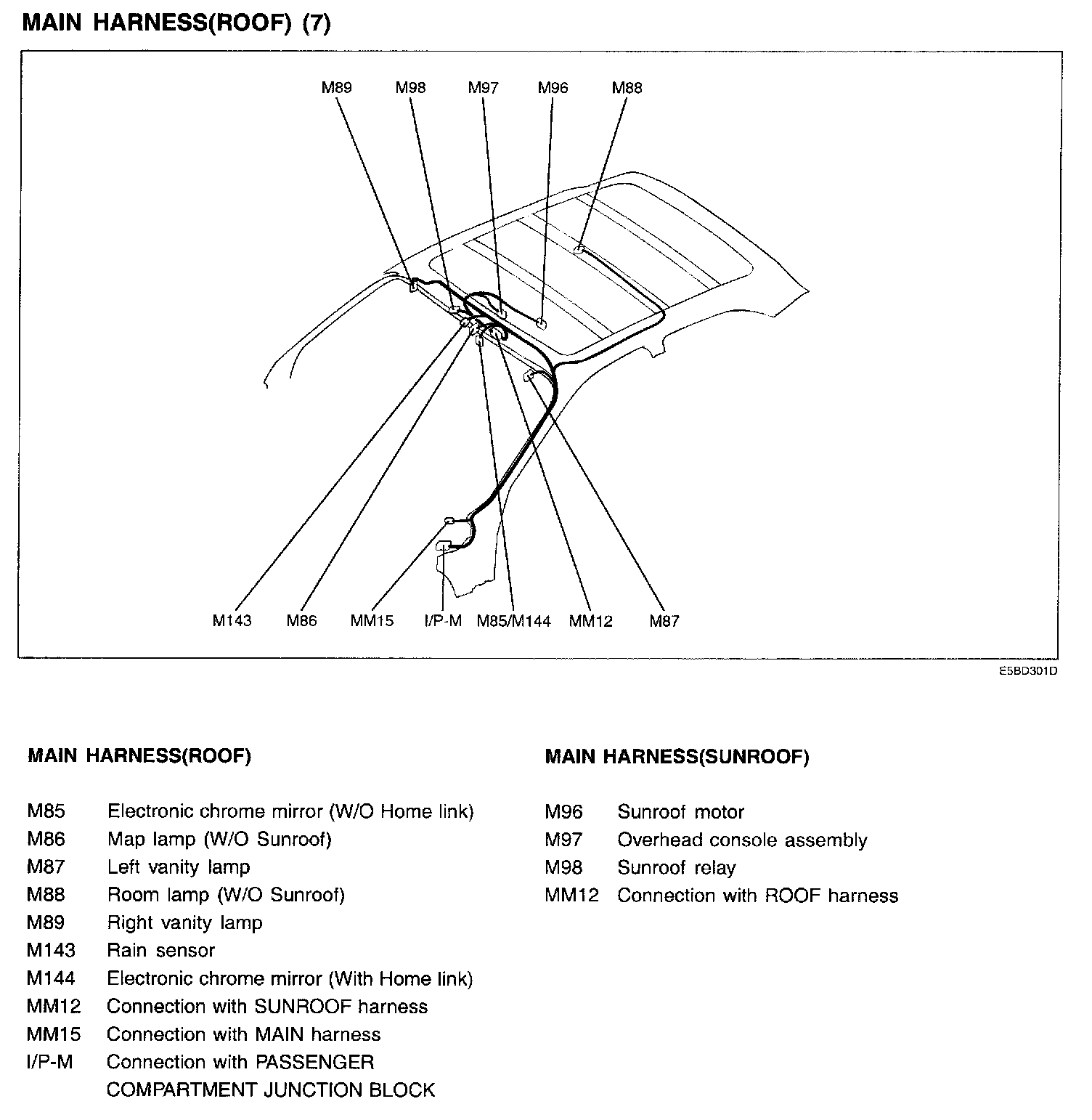

Main Harness (Roof):
