MFI Control System (4)

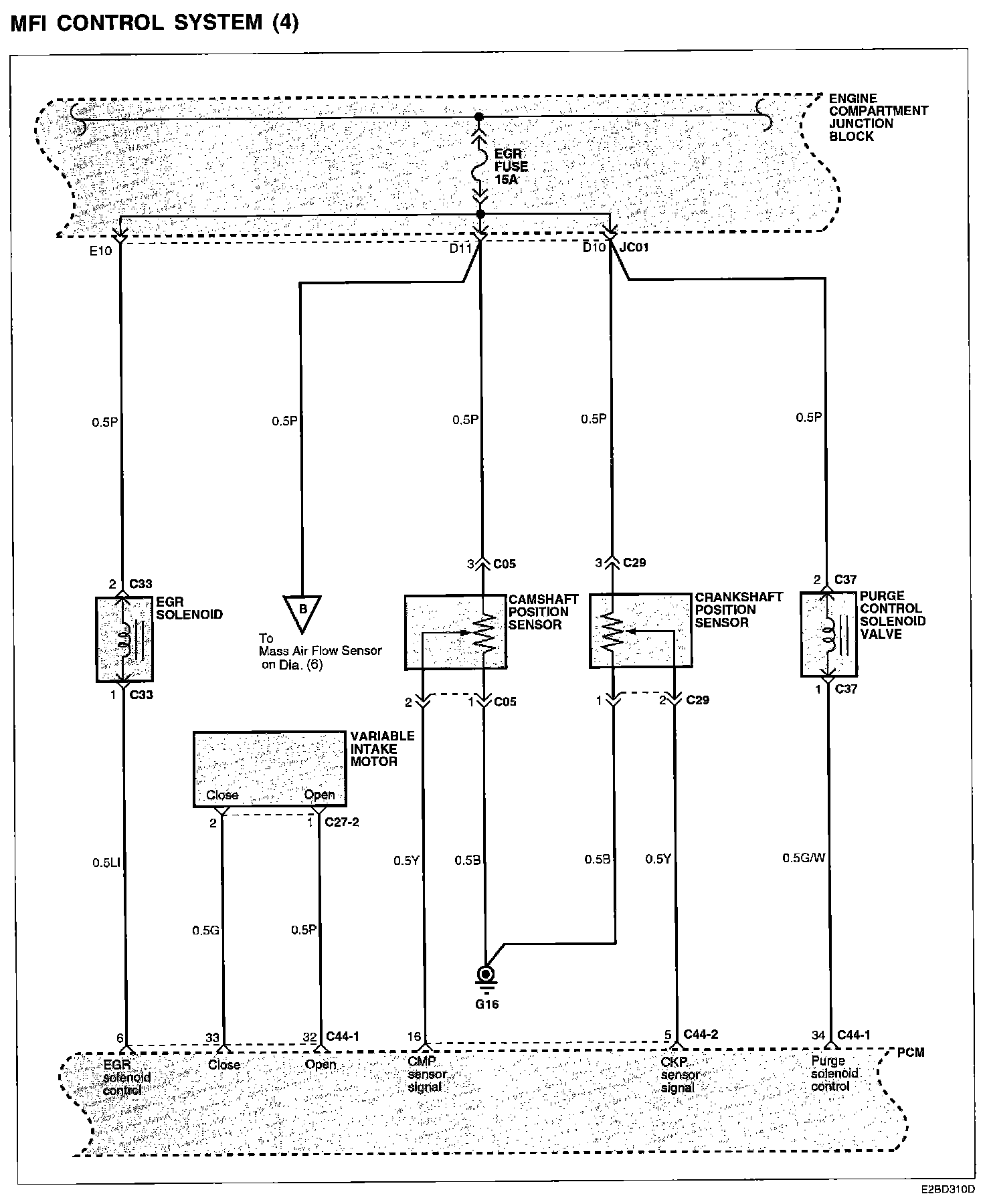

MFI Control System (4):

Next Diagram MFI Control System (5)

Previous Diagram MFI Control System (3)

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
