Checking Steering Wheel Free Play

CHECKING STEERING WHEEL FREE PLAY
1. Start the engine and with the steering wheel in the straight ahead position.

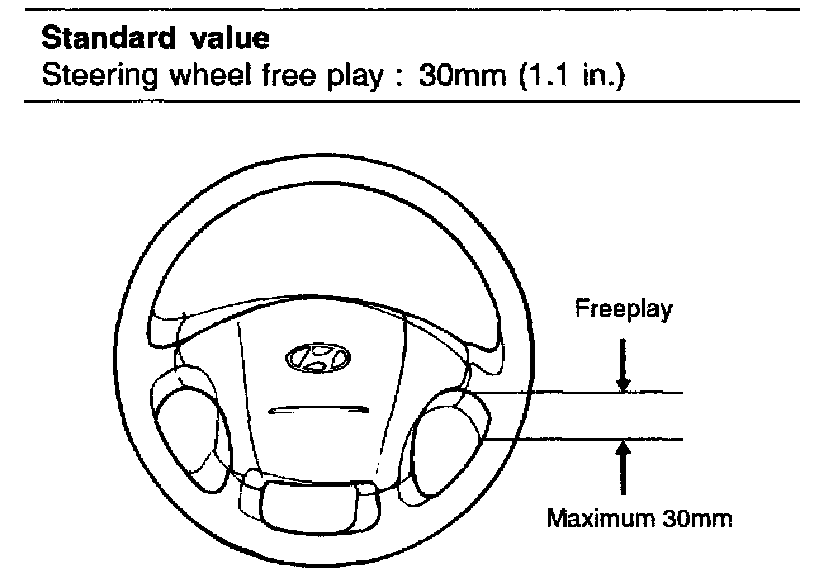

2. Measure the play while turning the steering wheel to the left and right.
Standard value Steering wheel free play: 30 mm (1.1 inch)
3. If the play exceeds the standard value, inspect the connection between the steering shaft and tie rod ends.
