Installation
AUTOMATIC TRANSAXLE SHIFT CONTROLINSTALLATION
1. Apply a coating of the specified grease to the interior of the bushing.

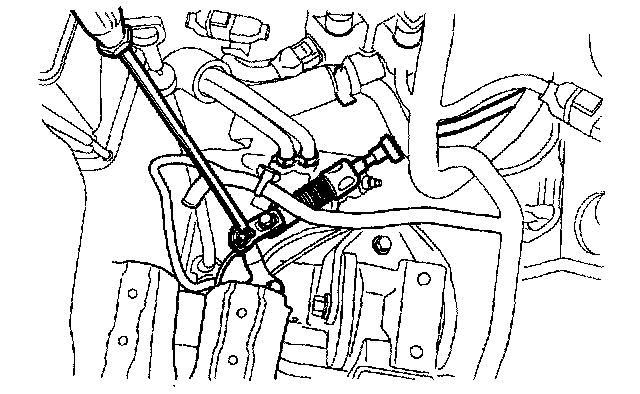

2. Move the shift lever and the transaxle range switch to the N position, and install the control cable.

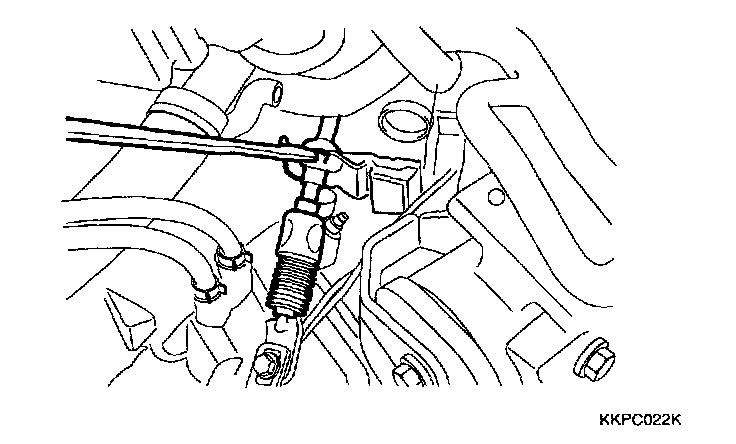

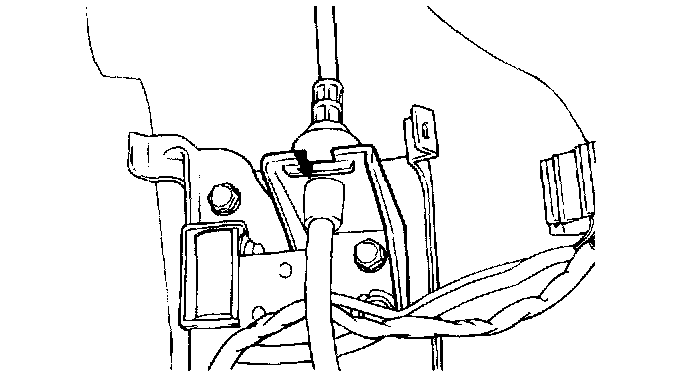

3. When connecting the control cable to the transaxle mounting bracket, install the clip until it contacts the control cable.

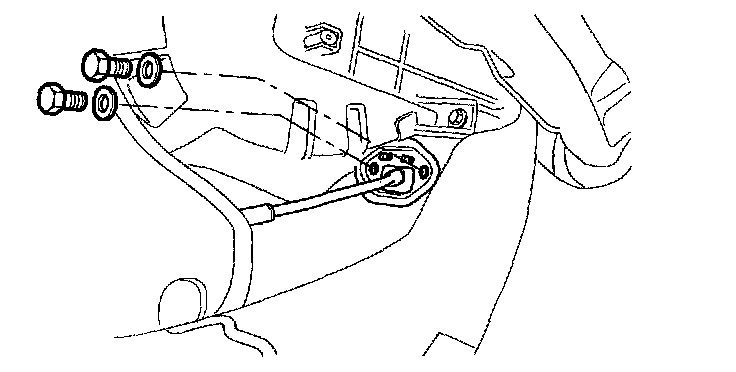

4. Install the bolt-washer assembly and nut.
5. Install the clip pin and self lock pin.
6. Install the cotter pin.
7. Connect the position indicator light connector, the O/D switch connector, the parking position switch connector, normal economy select switch connector and the shift lock solenoid connector.

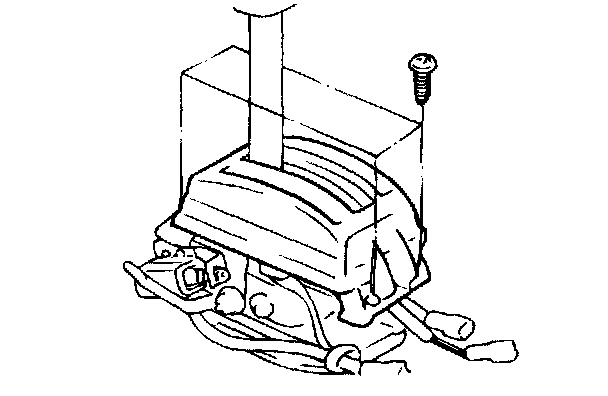

8. Install the shift lever indicator assembly.

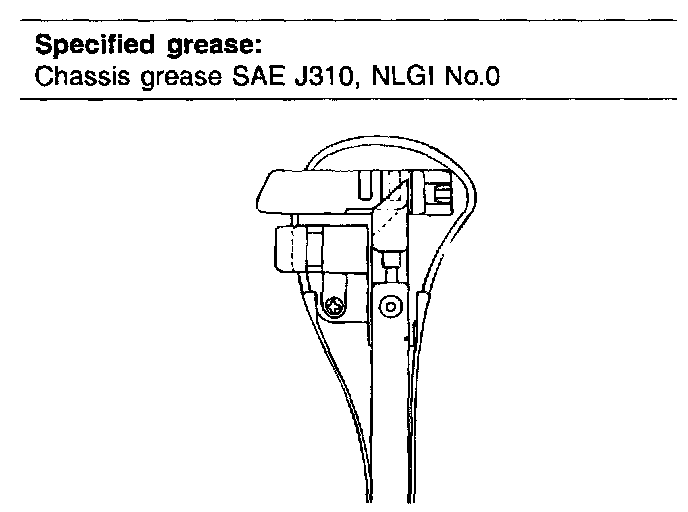

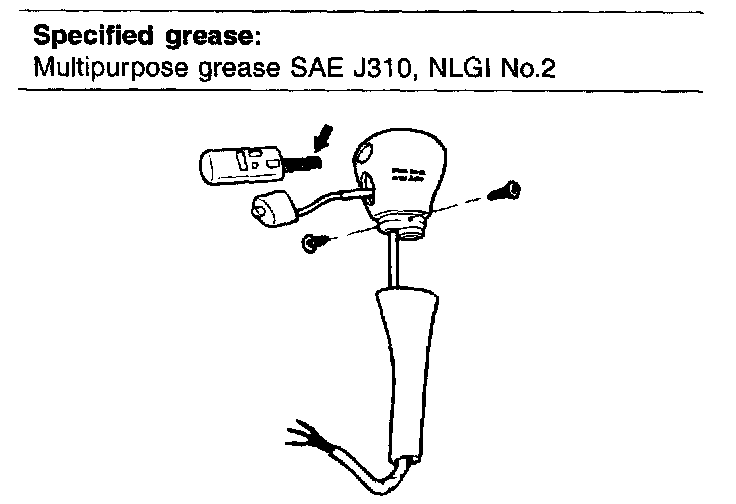

9. Apply the specified grease at the place shown in the figure.
10. Install the shift lever assembly.

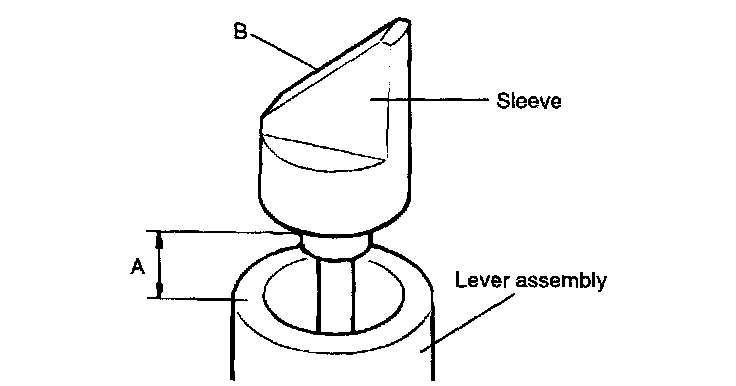

11. Place the shift lever in the N position, and then turn the cam adjusting so that the clearance between the cam adjusting and the lever assembly end in within the standard value.
Standard value (A) 15.2 - 15.9 mm (0.598 - 0.625 inch)
NOTE: Be sure to face B of the adjusting cam to the push button (driver's side).
12. Insert the O/D switch wiring to the shift lever cover, and then assemble the pin into the O/D switch connector.

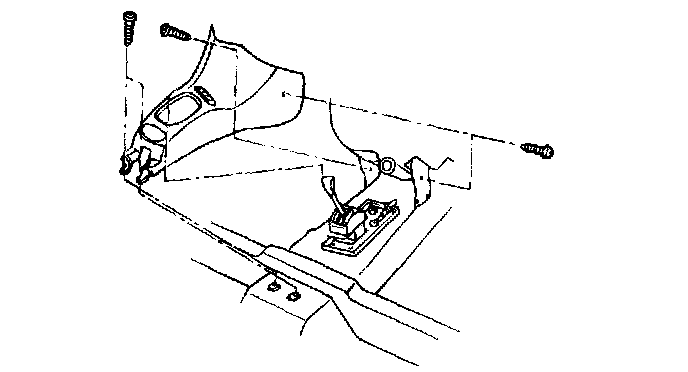

13. Install the front console.

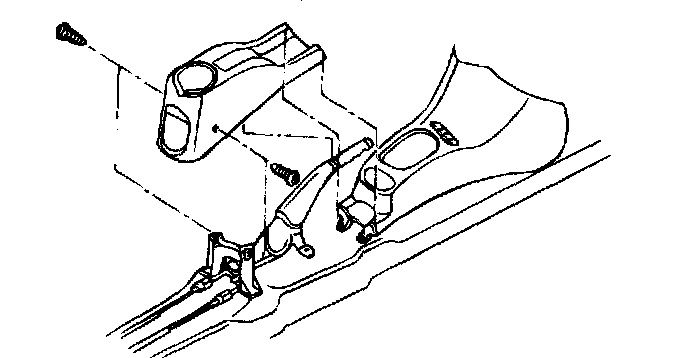

14. Install the rear console.
