Removal and Replacement

MIRROR

Mirror:

REMOVAL AND INSTALLATION

CAUTION: Wear gloves to remove and install the mirror holder.

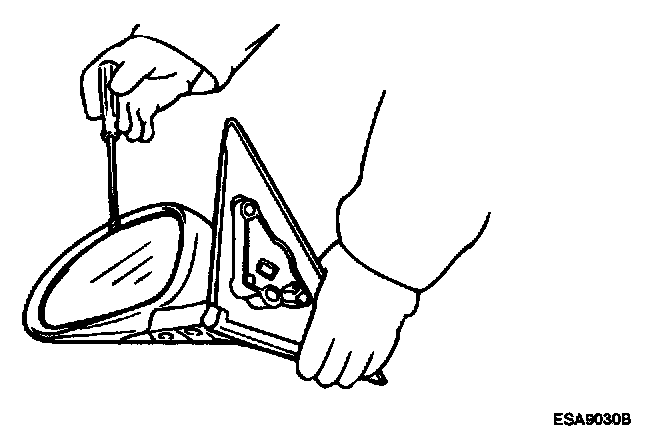

1. Insert flat bladed screwdriver between the outside rear view mirror holder and the mirror assembly.






CAUTION: When prying with a flat bladed screwdriver, wrap it with a shop towel to prevent damage.

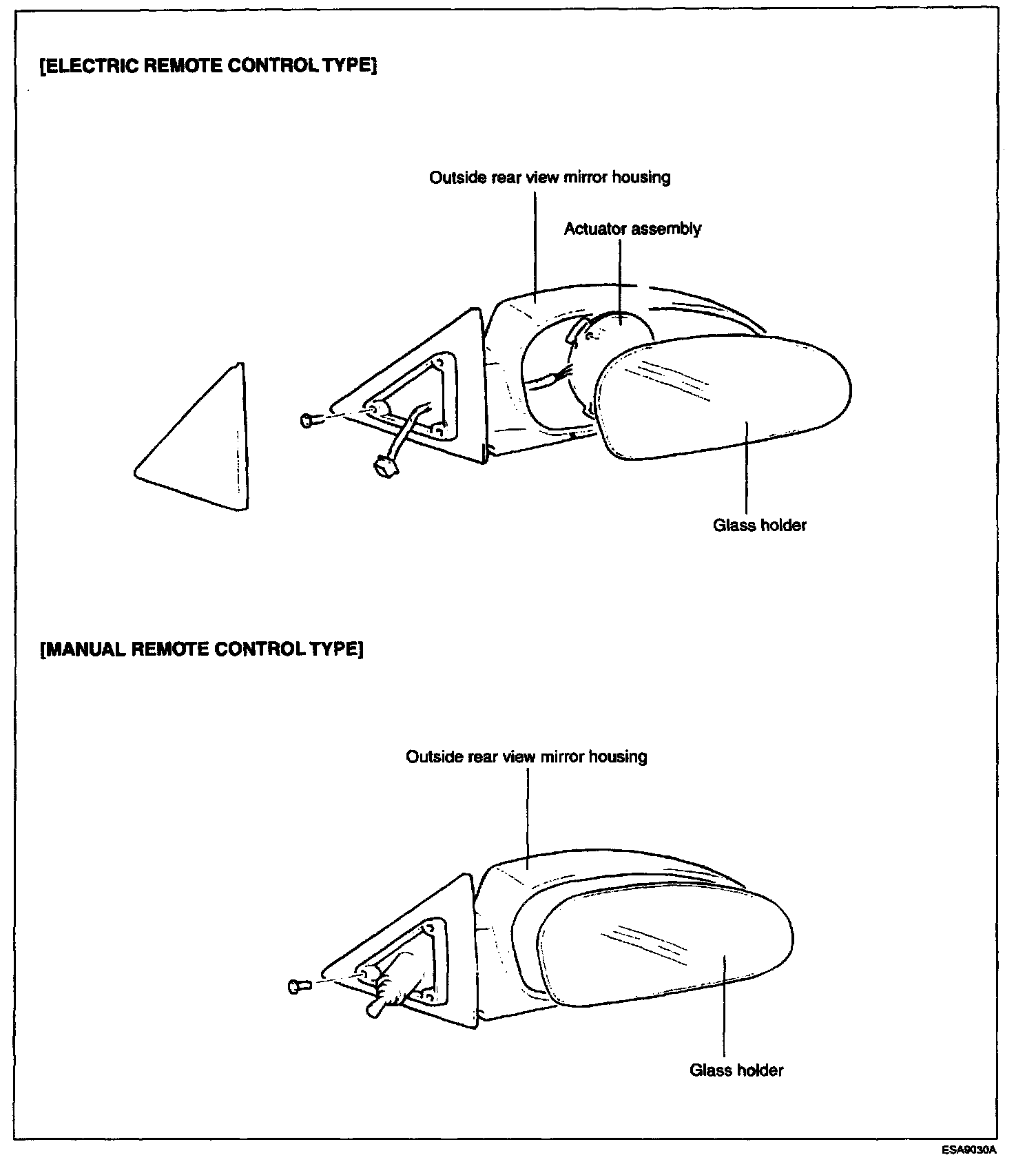

2. Remove the outside rear view mirror actuator from the outside rear view mirror housing.






3. Installation is the reverse of removal.
