Air Bag Control Module

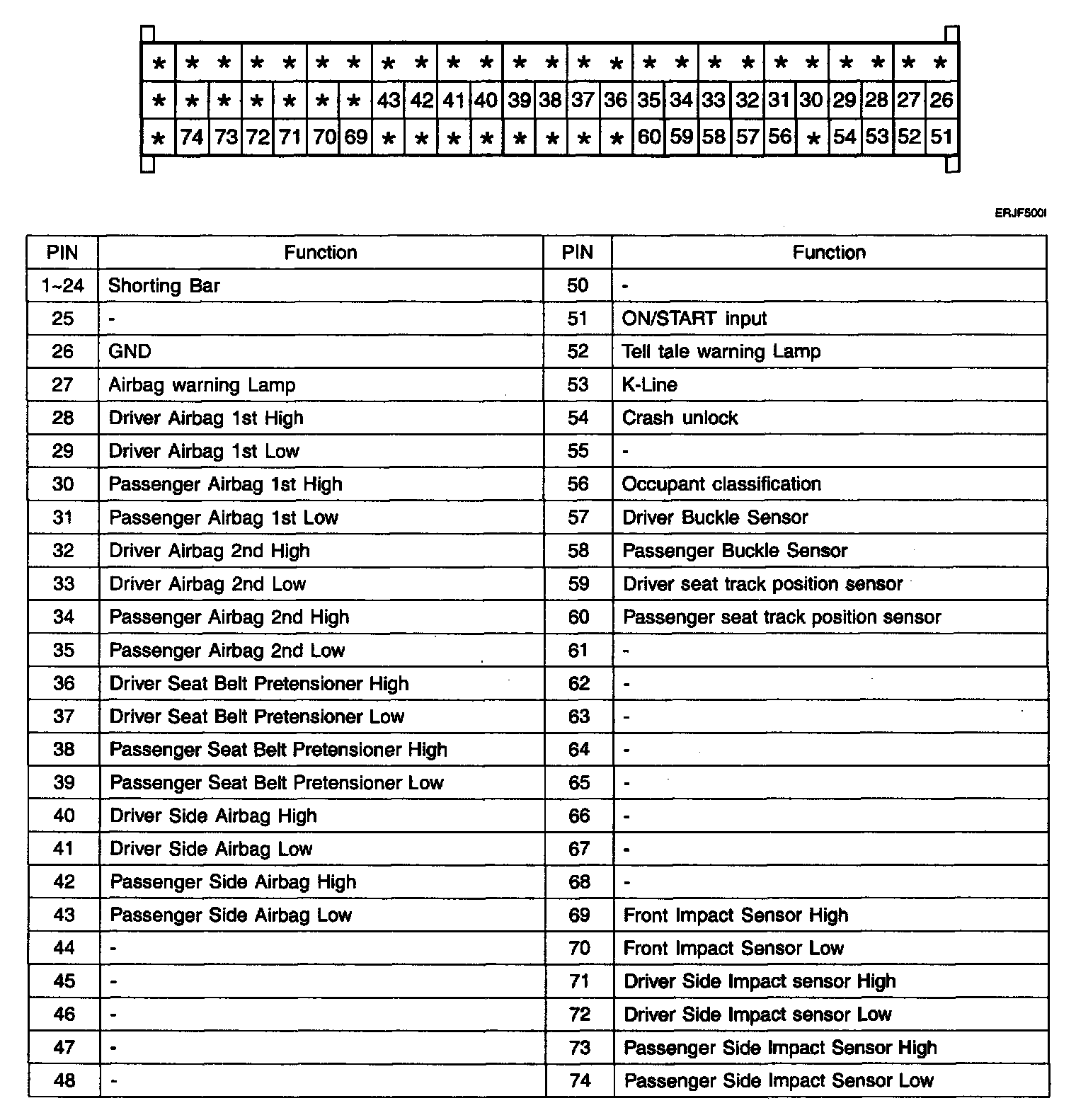

SRSCM Connector Terminal(USA) PIN No.1 to 74:

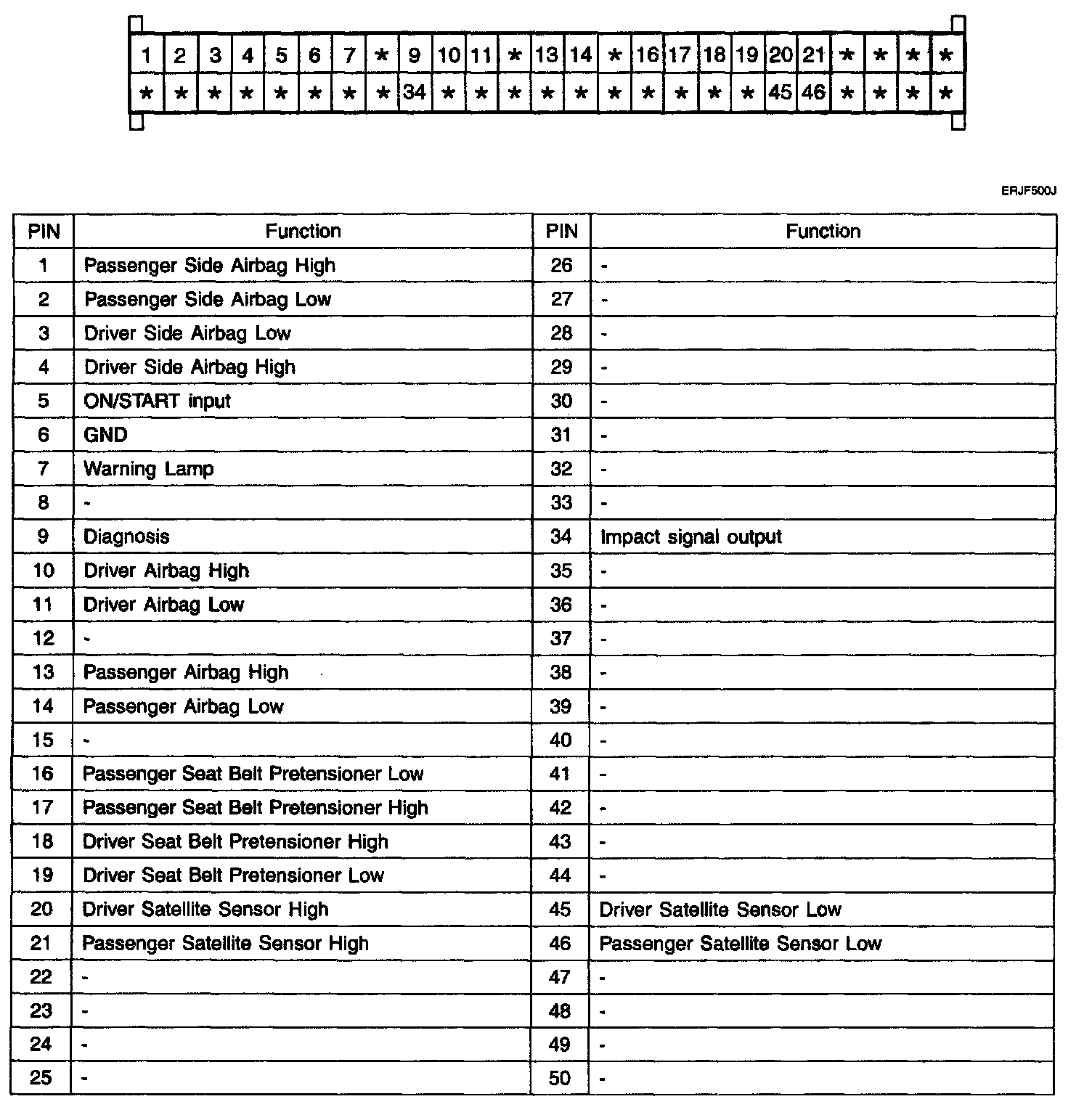

SRSCM Connector Terminal(CANADA) PIN No.1 to 50:
