Blower Motor Resistor: Testing and Inspection

Blower Resistor (Manual Temperature Control)

Inspection

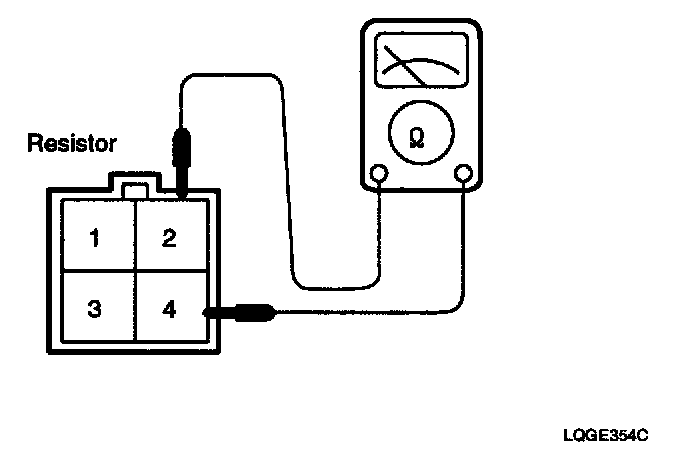

1. Measure terminal-to-terminal resistance of the blower resistor.

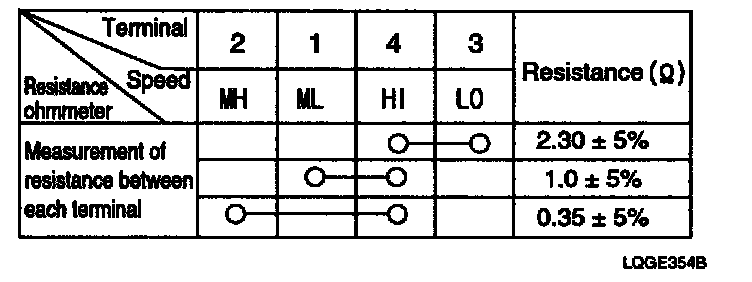

Ohm Specs:

Terminal Id:

2. If measured resistance is not within specification, the blower resistor must be replaced. (After removing the resistor).
