Power Transistor HVAC: Testing and Inspection
Power TransistorInspection
1. Manually operate the control switch and measure the voltage of blower motor between pin 1 and 2.

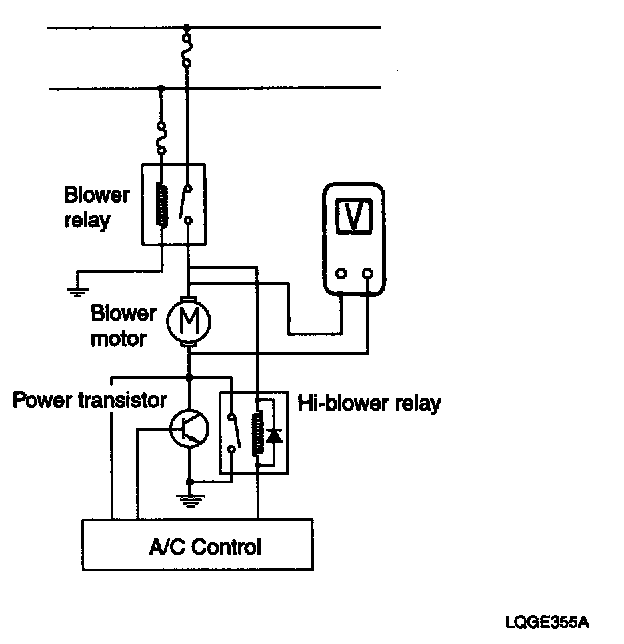

Voltmeter Shown In Blower Motor Circuit (Auto Temp):

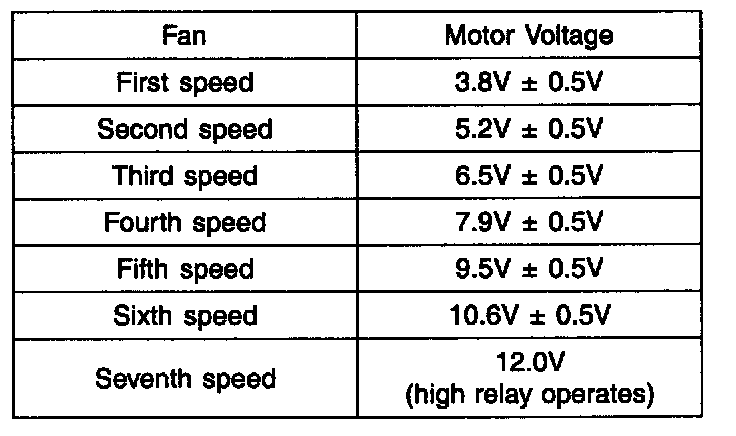

Blower Motor Specifications (Auto Temp):
2. Select the control switch to raise voltage until high relay operates.
