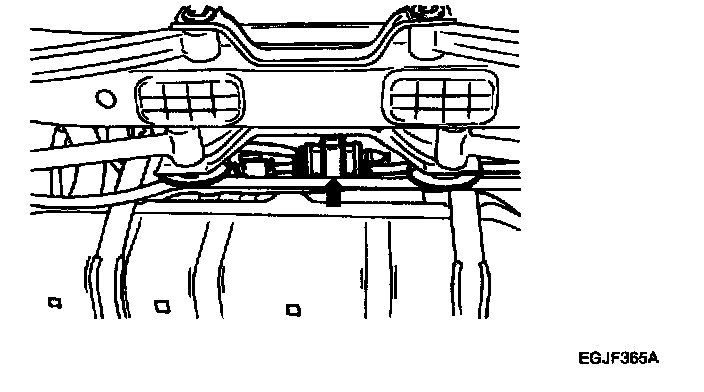

FUEL TANK PRESSURE SENSOR (FTPS)




The fuel tank pressure sensor is a pressure sensitive variable resistor that measures the change of pressure in the fuel tank to monitor for leaks. It is used in the EVAP leak test monitoring with the canister close and purge solenoid valves.

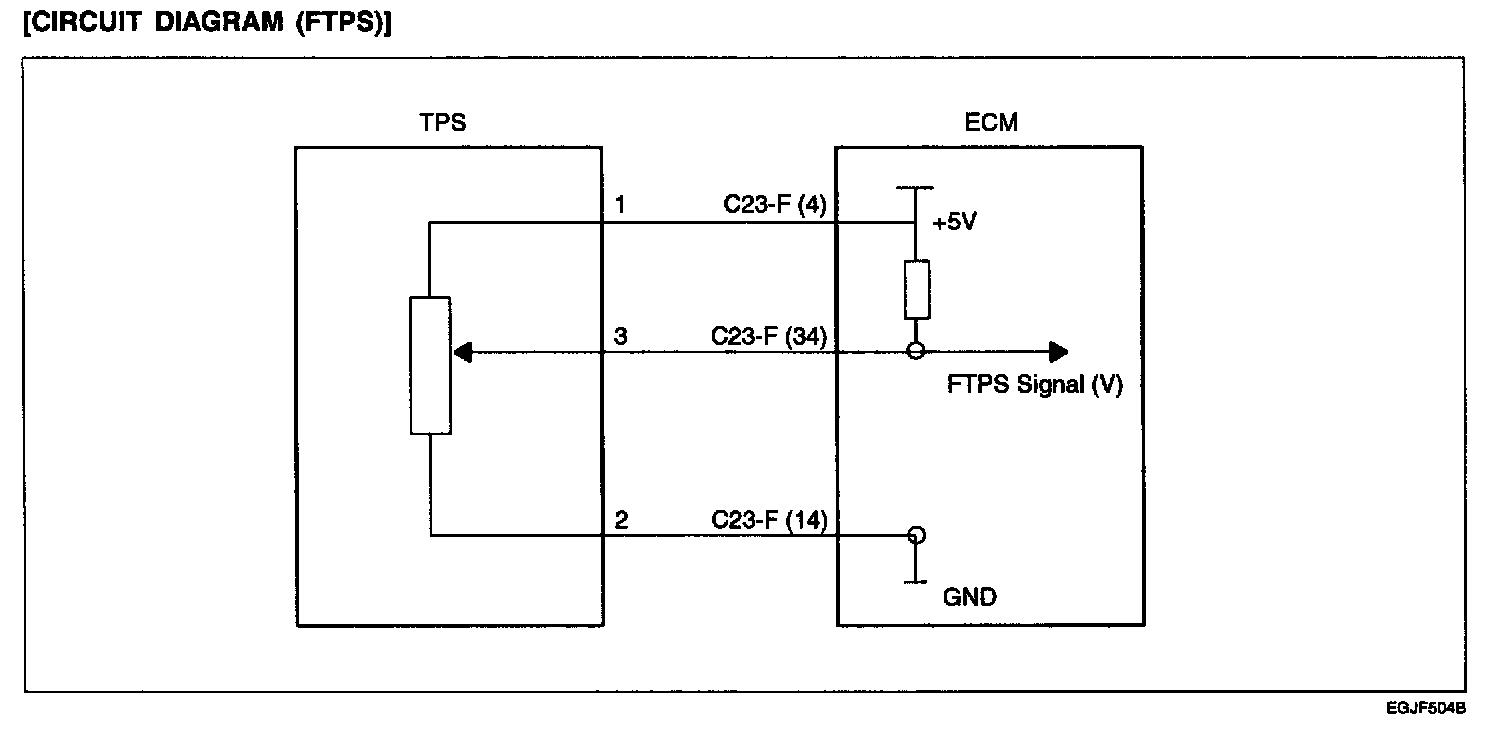

Circuit Diagram (FTPS):

CIRCUIT DIAGRAM (FTPS)

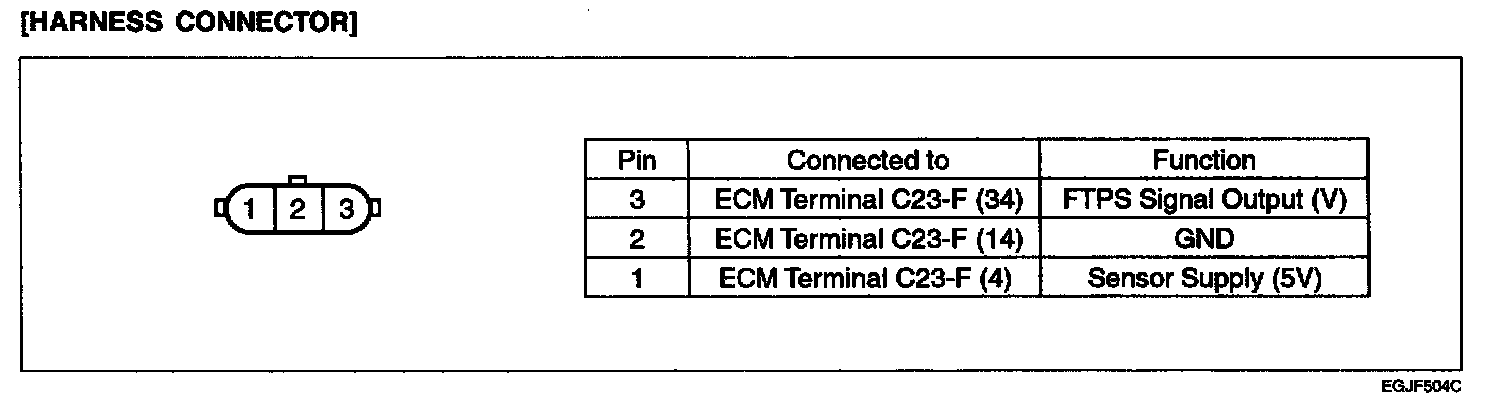

Harness Connector:

HARNESS CONNECTOR

Troubleshooting Procedures:

TROUBLESHOOTING PROCEDURES

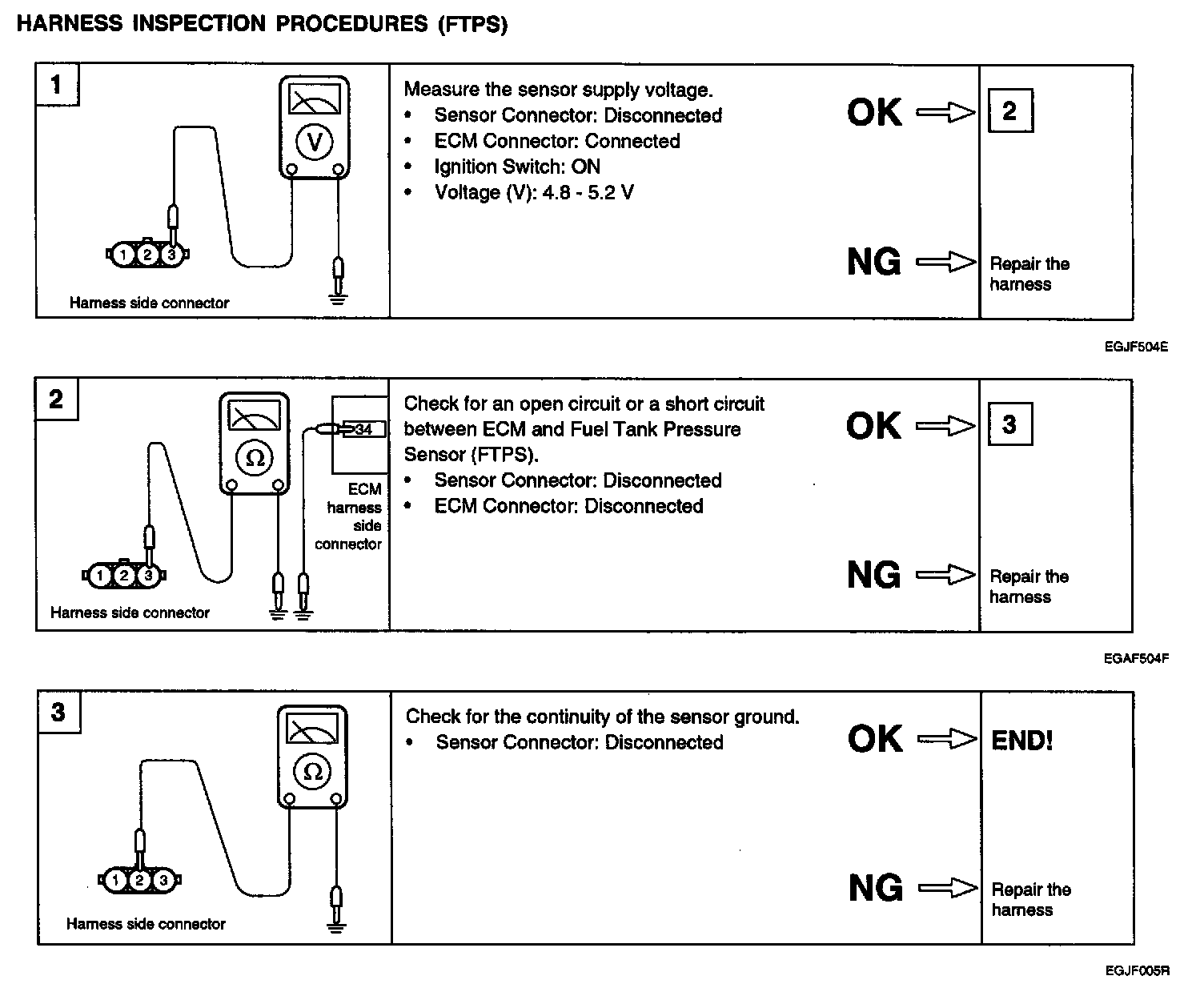

Harness Inspection Procedures (FTPS):

HARNESS INSPECTION PROCEDURES (FTPS)
