Refueling Control Valve: Testing and Inspection

OVERFILL LIMITER (TWO WAY VALVE)

INSPECTION

TWO-WAY VALVE

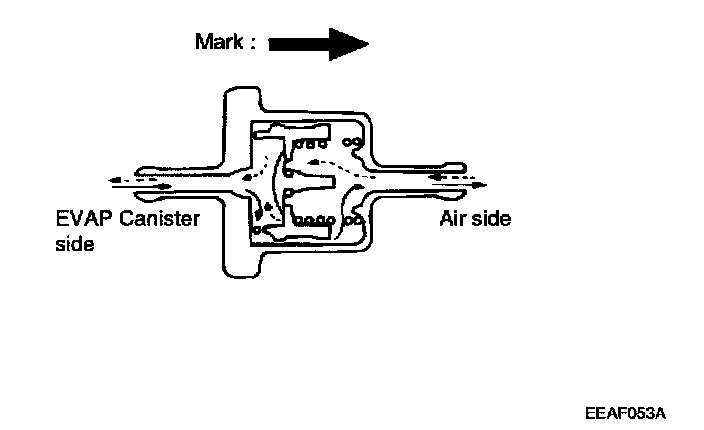

1. Inspect that air flows as shown.




2. Check to connect correctly such as the arrow mark on the valve.
