Camshaft Position Sensor: Testing and Inspection

CAMSHAFT POSITION (TDC) SENSOR




The TDC Sensor is a Hall-effect sensor that detects the camshaft position on the compression stroke of the No.1 cylinder, converts it into a pulse signal, and inputs it to the ECM. The ECM then computes the fuel injection sequence, etc. based on the input signal.

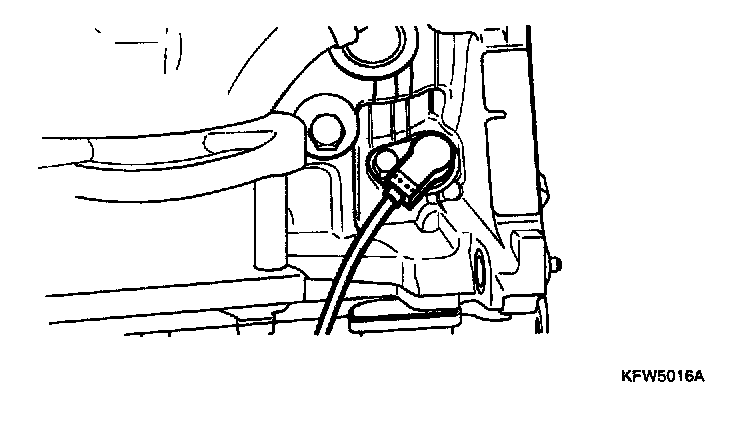

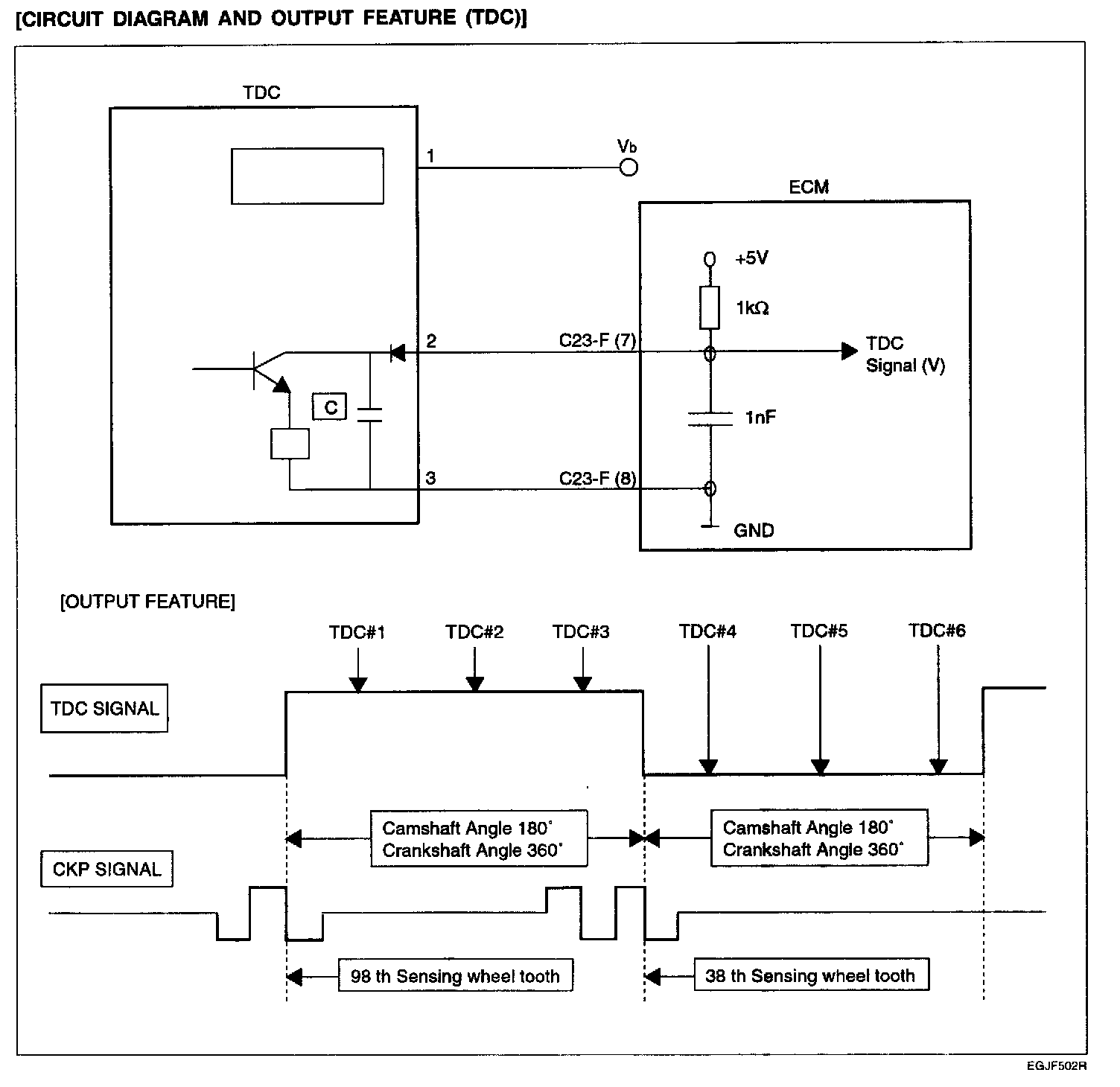

Circuit Diagram And Output Feature (TDC):




CIRCUIT DIAGRAM

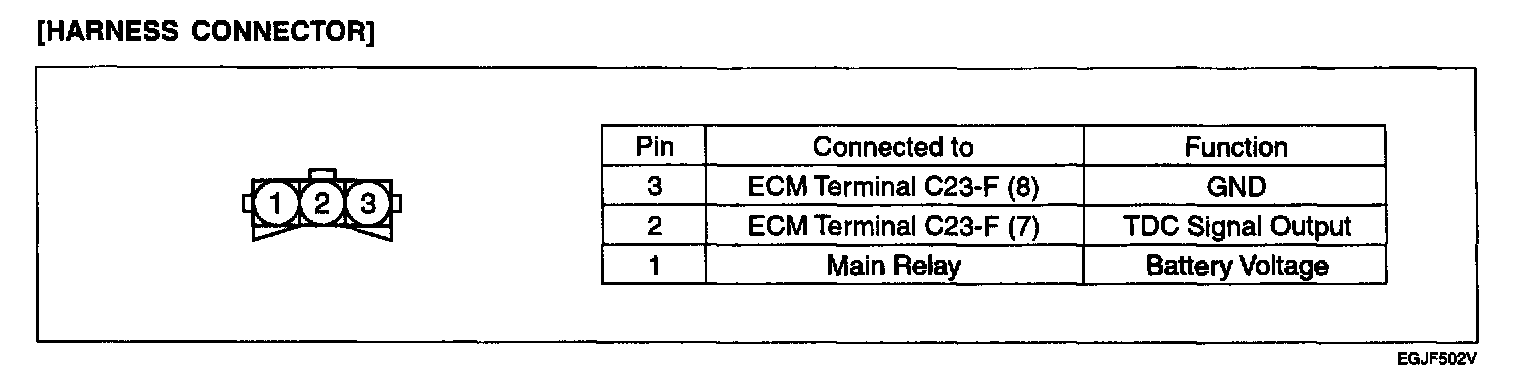

Harness Connector:




HARNESS CONNECTOR

TROUBLESHOOTING HINTS

If the TDC Sensor does not operate correctly, sequential injection is may not occur and the engine may stall or run irregularly at idle or tail to accelerate normally.

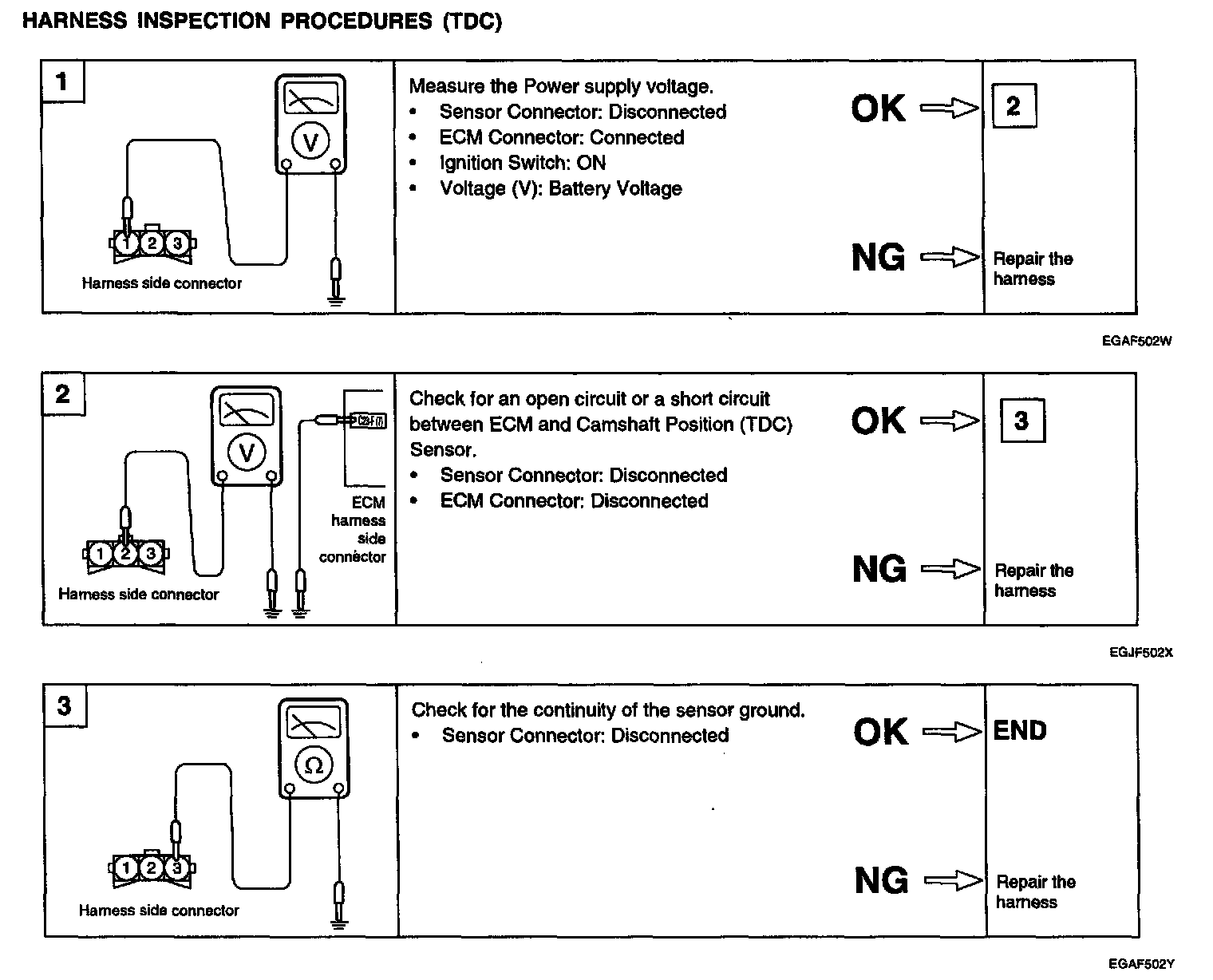

Harness Inspection Procedures (TDC):




HARNESS INSPECTION PROCEDURES (TDC)
