Transmission Temperature Sensor/Switch: Testing and Inspection

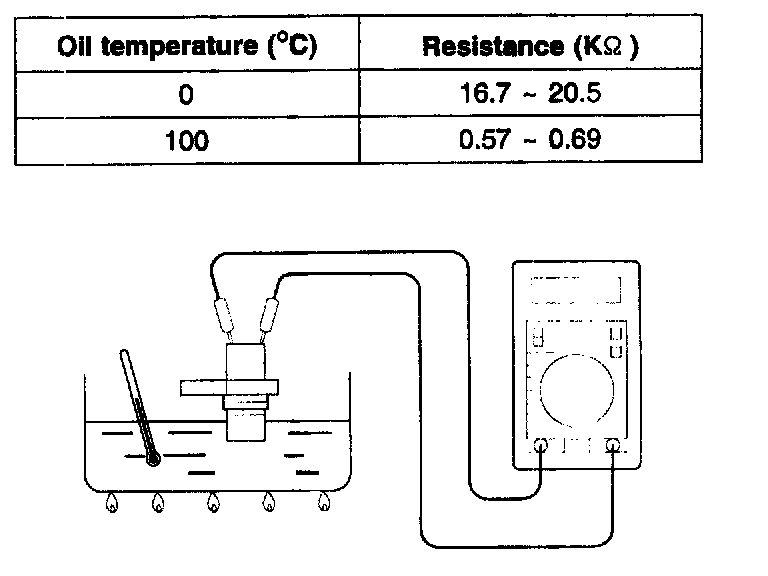

OIL TEMPERATURE SENSOR CHECK
1) Remove the oil temperature sensor.
2) Measure the resistance between terminals 1 and 2 of the oil temperature sensor connector.





STANDARD VALUE
