Reassembly

COUPLING ASSEMBLY

REASSEMBLY

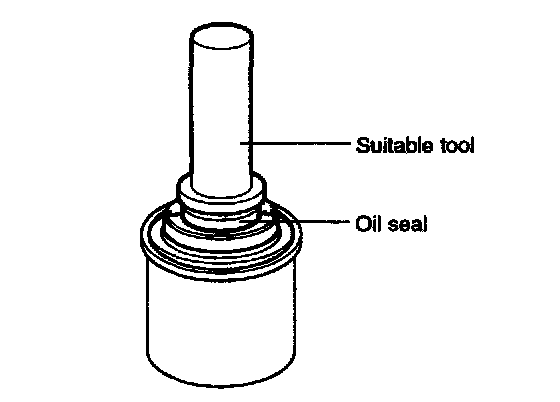

1. When reassembling the back plate oil seal, reassemble it using a suitable tool.

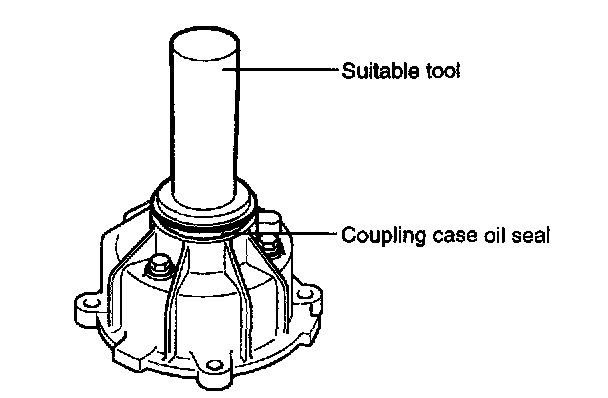

2. In case of the coupling case oil seal, too, reassemble it using a suitable tool.

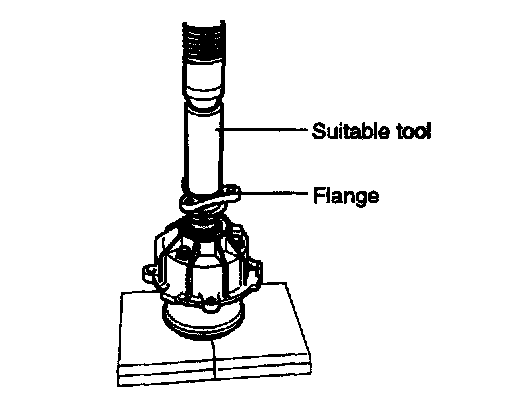

3. When reassembling the 4WD coupling assembly and the flange, too, reassemble them using a suitable tool.

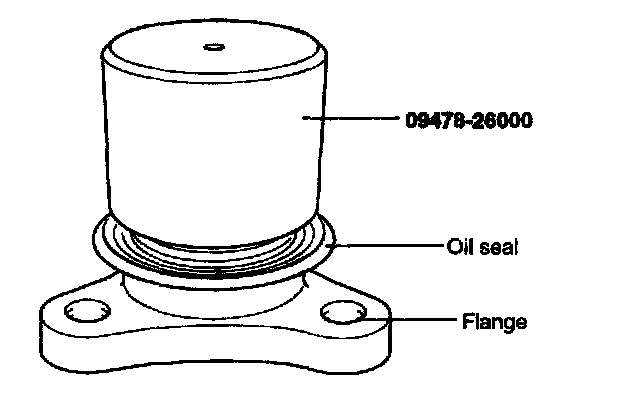

4. Install the flange oil seal using special tool.
