DAB Resistance Too High (R >= 6.7 Ohms) - CANADA

B1347 DAB RESISTANCE TOO HIGH (R ≥ 6.7 Ohms) - CANADA

DESCRIPTION
The DAB squib circuit consists of the SRSCM, clock spring and DAB. It causes the airbag to deploy when the airbag deployment conditions are satisfied. The above DTCs are recorded when the DAB resistance is too high or low in the DAB squib circuit.

DTC Detecting Condition:

Wiring Diagram:

Steps 1 - 2:

Step 3:

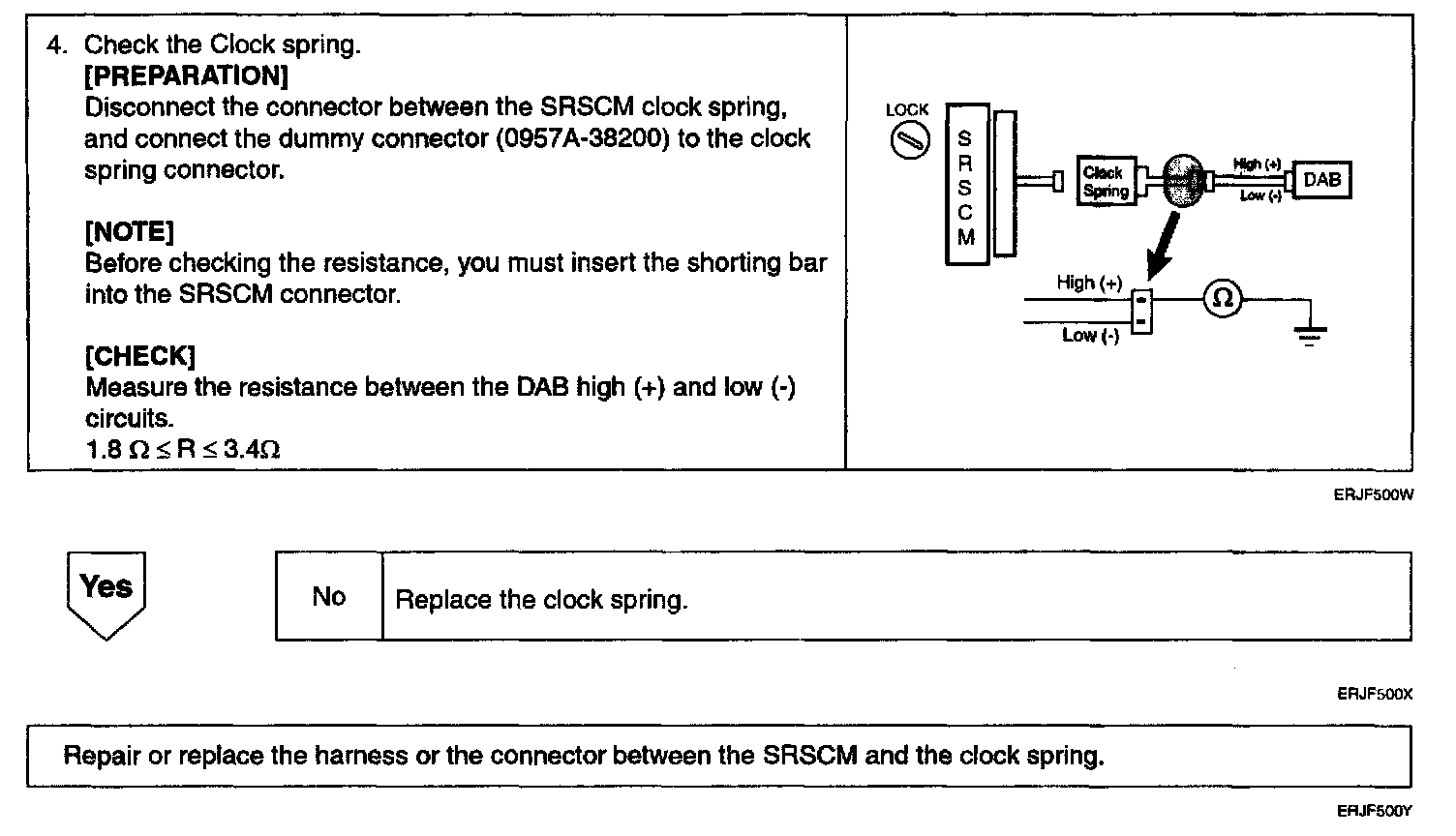

Step 4:

INSPECTION PROCEDURES
