Coolant: Testing and Inspection

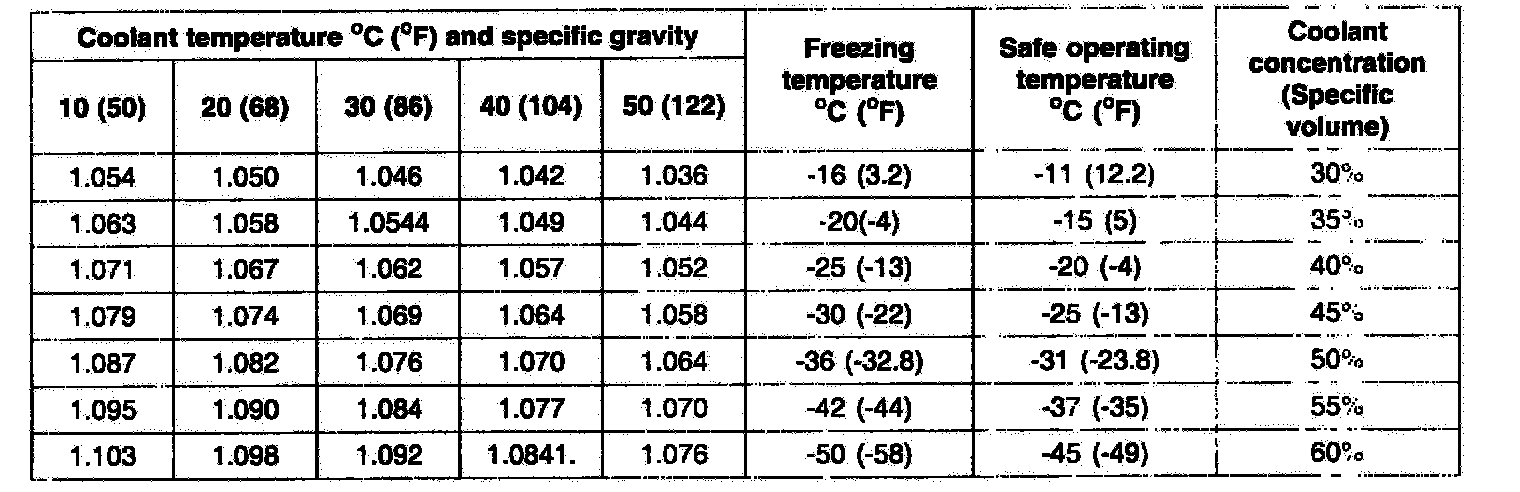

RELATION BETWEEN COOLANT CONCENTRATION AND SPECIFIC GRAVITY





EXAMPLE
The safe operating temperature is -15°C (5°F) when the measured specific gravity is 1.058 at coolant temperature of 20°C (OFF)

CAUTION:
^ If the concentration of the coolant is below 30%, its anti-corrosion property will be adversely affected.
^ If the concentration is above 60%, the engine cooling property will decrease, affecting the engine adversely. For these reasons. be sure to maintain the concentration level within the specified range.
^ Do not mix types of anti - freeze"





RECOMMENDED COOLANT
