Camshaft Position Sensor: Testing and Inspection

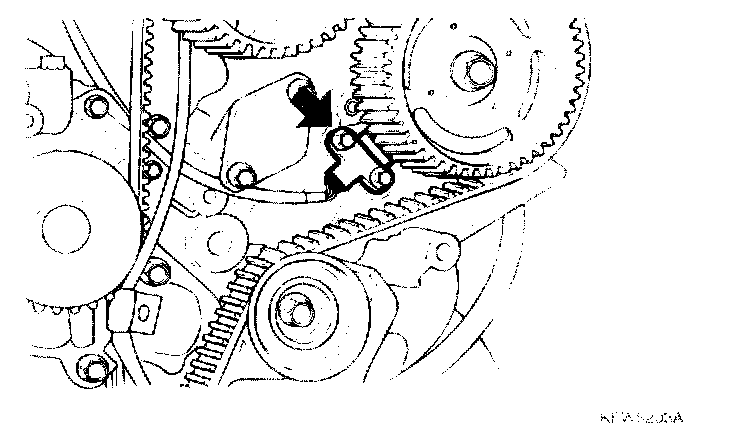

CAMSHAFT POSITION SENSOR




The CMP is a Hall-effect sensor that detects the camshaft position on the compression stroke of the No.1 cylinder, converts it into a pulse signal, and inputs it to the PCM. The PCM then computes the fuel injection sequence,etc. based on the input signal.

Circuit Diagram:

CIRCUIT DIAGRAM

HARNESS INSPECTION PROCEDURES
Refer to "P0340" DTC inspection procedures.

TROUBLESHOOTING HINTS

If the CMP Sensor does not operate correctly sequential injection is may not occur and the engine may start or run irregularly at idle or fail to accelerator normally
