Home >> Hyundai >> 2005 >> Santa Fe V6-3.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Crankshaft Position Sensor >> Locations

Crankshaft Position Sensor: Locations

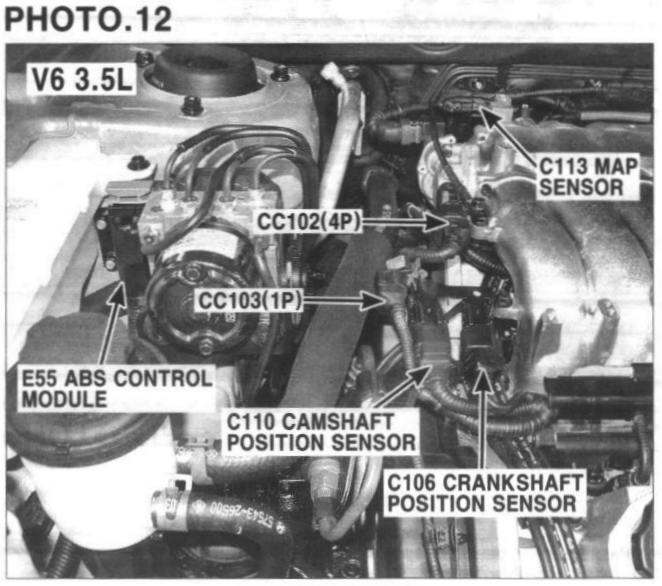

Photo 12:



Location Of MFI Components:
