Leak Detection Valve: Testing and Inspection

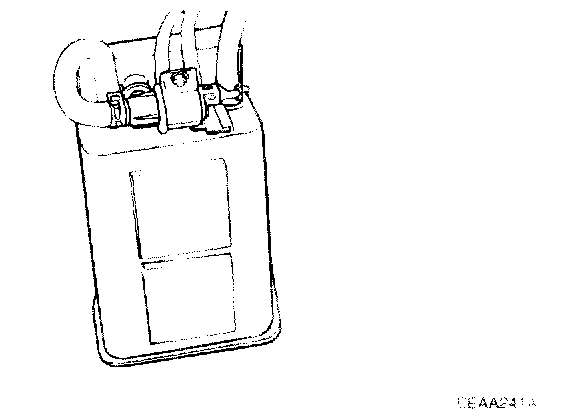

CANISTER CLOSE VALVE




The Canister Close Valve(CCV) is for monitoring of evaporative leakage detection. While the leakage monitoring is operated, the CCV be comes closed but it is normally open.

Circuit Diagram:

CIRCUIT DIAGRAM

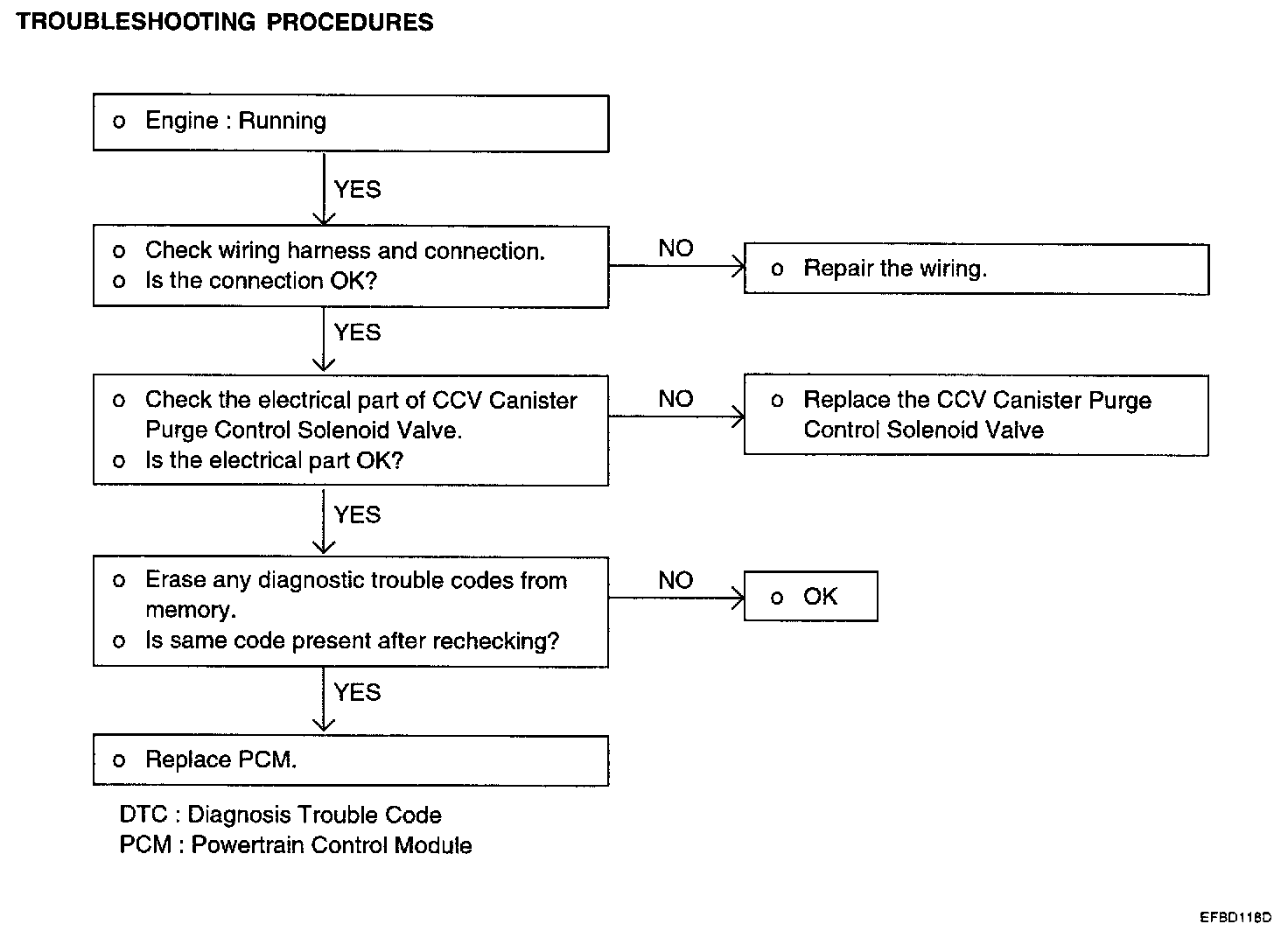

Troubleshooting Procedures:

TROUBLESHOOTING PROCEDURES

HARNESS INSPECTION PROCEDURES

Refer to "P0447, P048" DTC inspection procedures.
