Camshaft Bearing

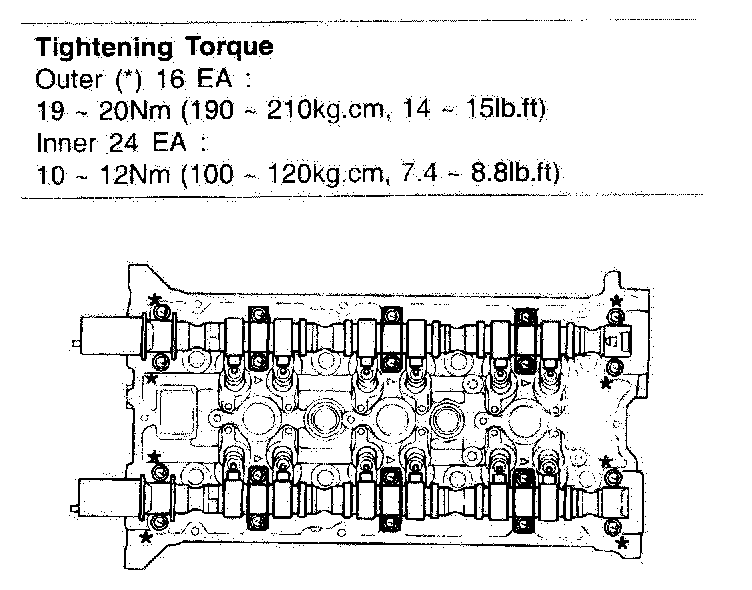

CAMSHAFT BEARING CAP

Tighten the bearing cap by 2 or 3 steps
Tightening Torque
Outer (a) 16 EA 19 - 20 Nm (190 - 21O kg-cm, 14 - 15 ft. lbs.)
Inner 24 EA 10 - 12 Nm (100 - 120 kg-cm, 7.4 - 8.8 ft. lbs.)
