Oil Pan, Engine

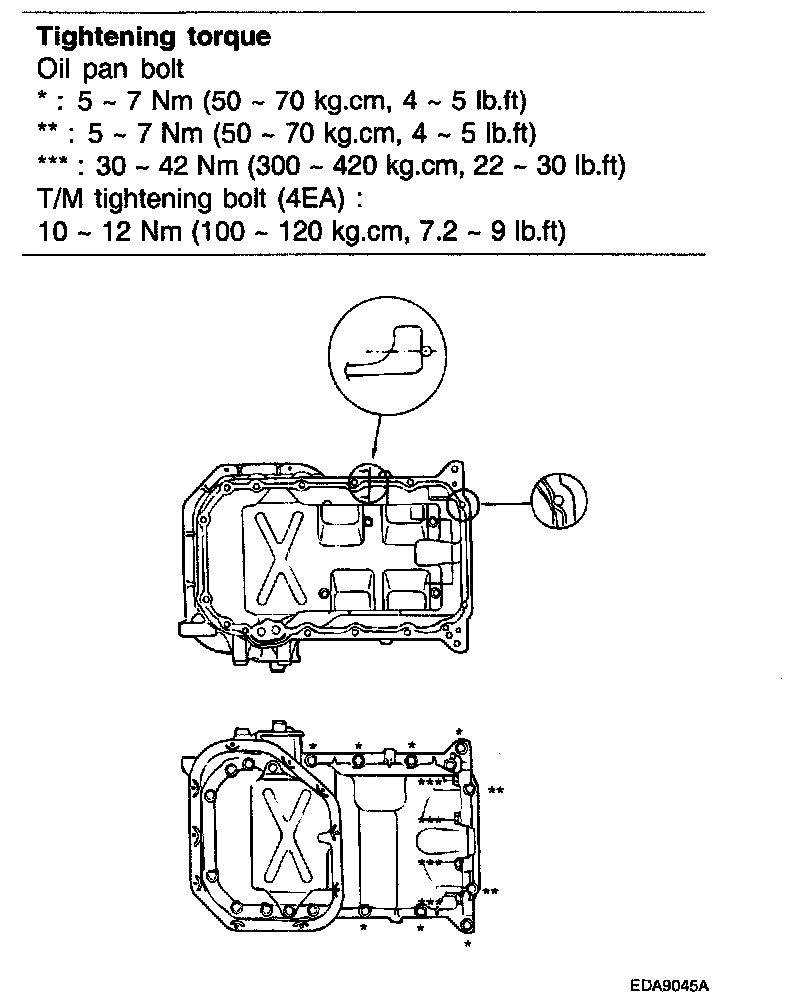

- Install the oil pan and tighten the bolts to the specified torque.

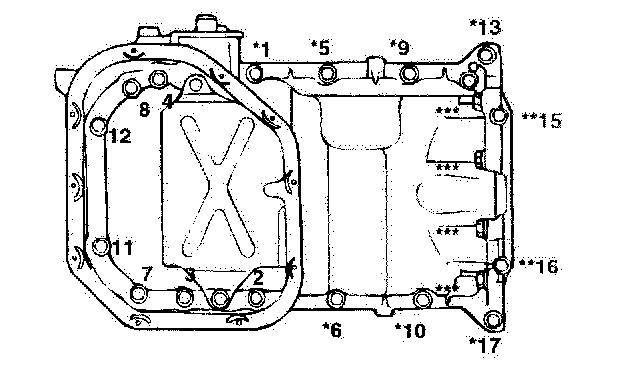

- Tighten the oil pan bolts as shown in the illustration

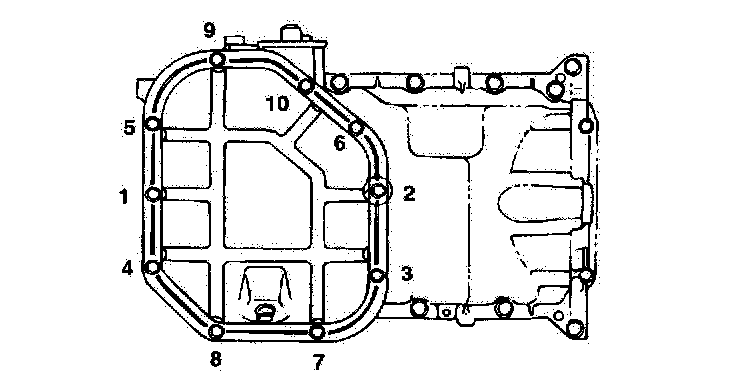

- Tighten the lower oil pan bolts as shown in figure.
