Compressor Clutch Hub: Service and Repair

CLUTCH HUB AND PULLEY

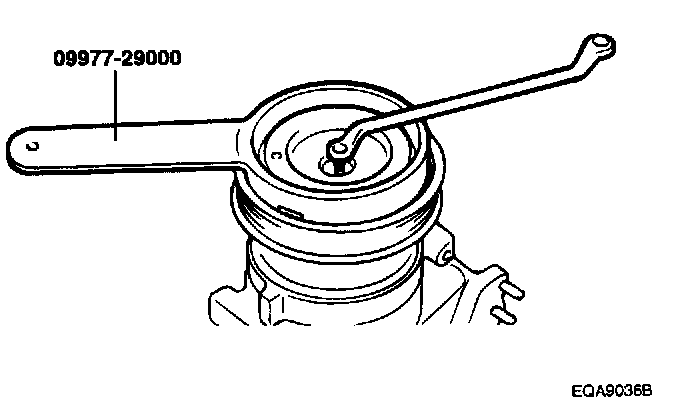

1. Remove the clutch hub retaining bolt with the aid of a spanner wrench.

2. Pull the clutch hub. If the hub can not be pulled from the compressor shaft, screw an 8 mm bolt into the shaft hole of the clutch hub to force the hub from the shaft.

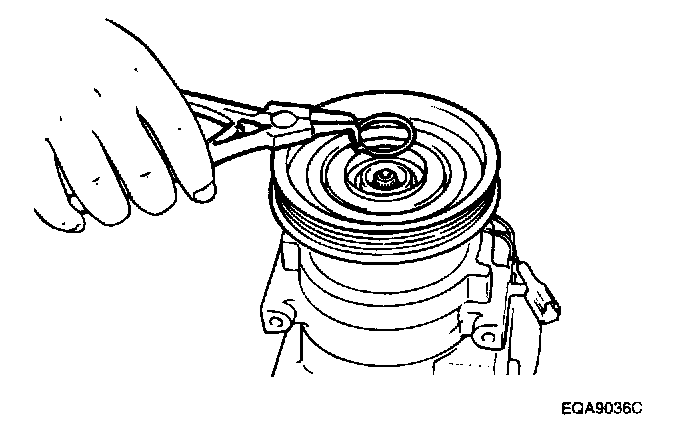

3. Remove the pulley retaining snap ring and then pull the pulley and bearing assembly from the compressor.
