Control Assembly: Description and Operation

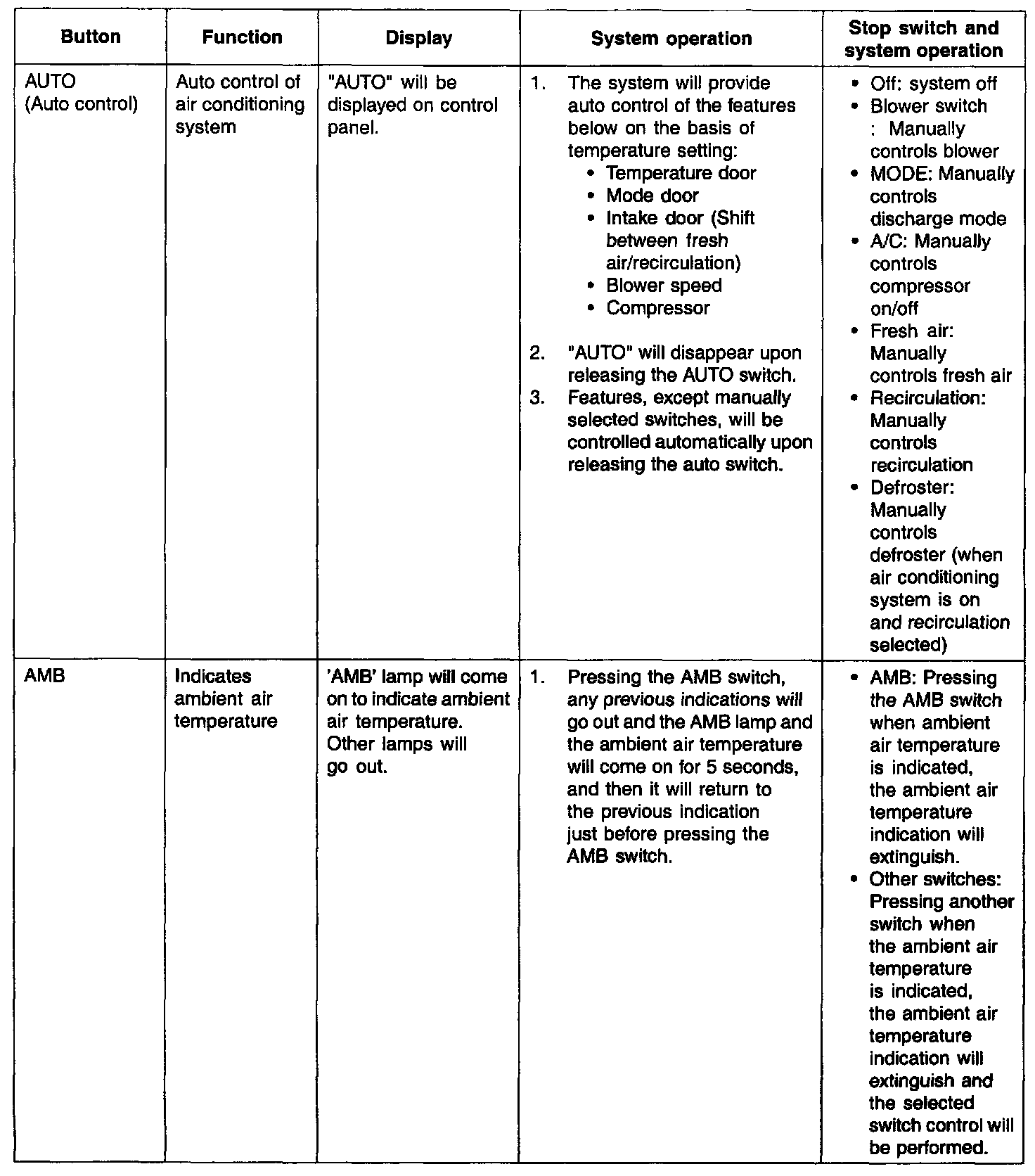

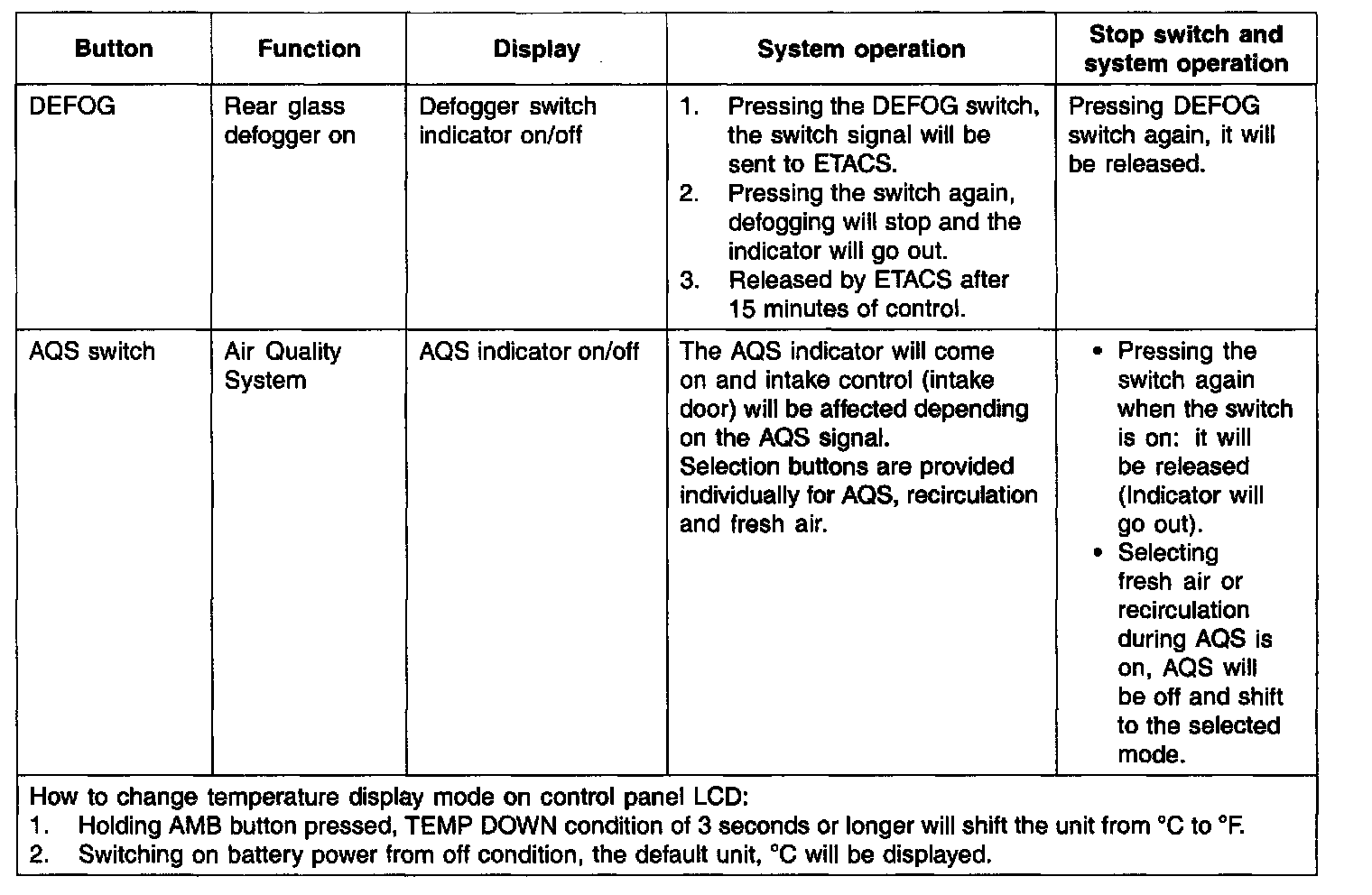

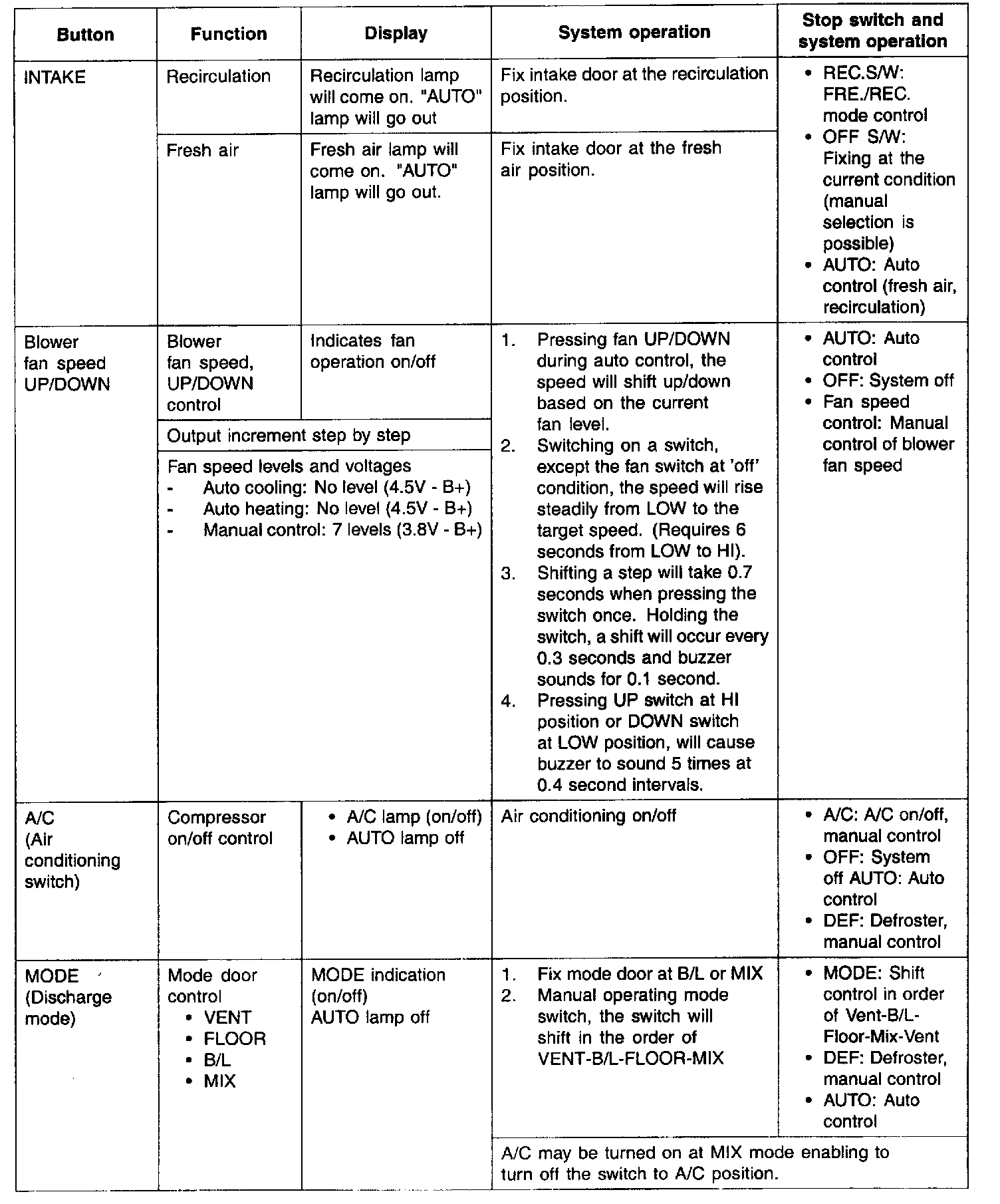

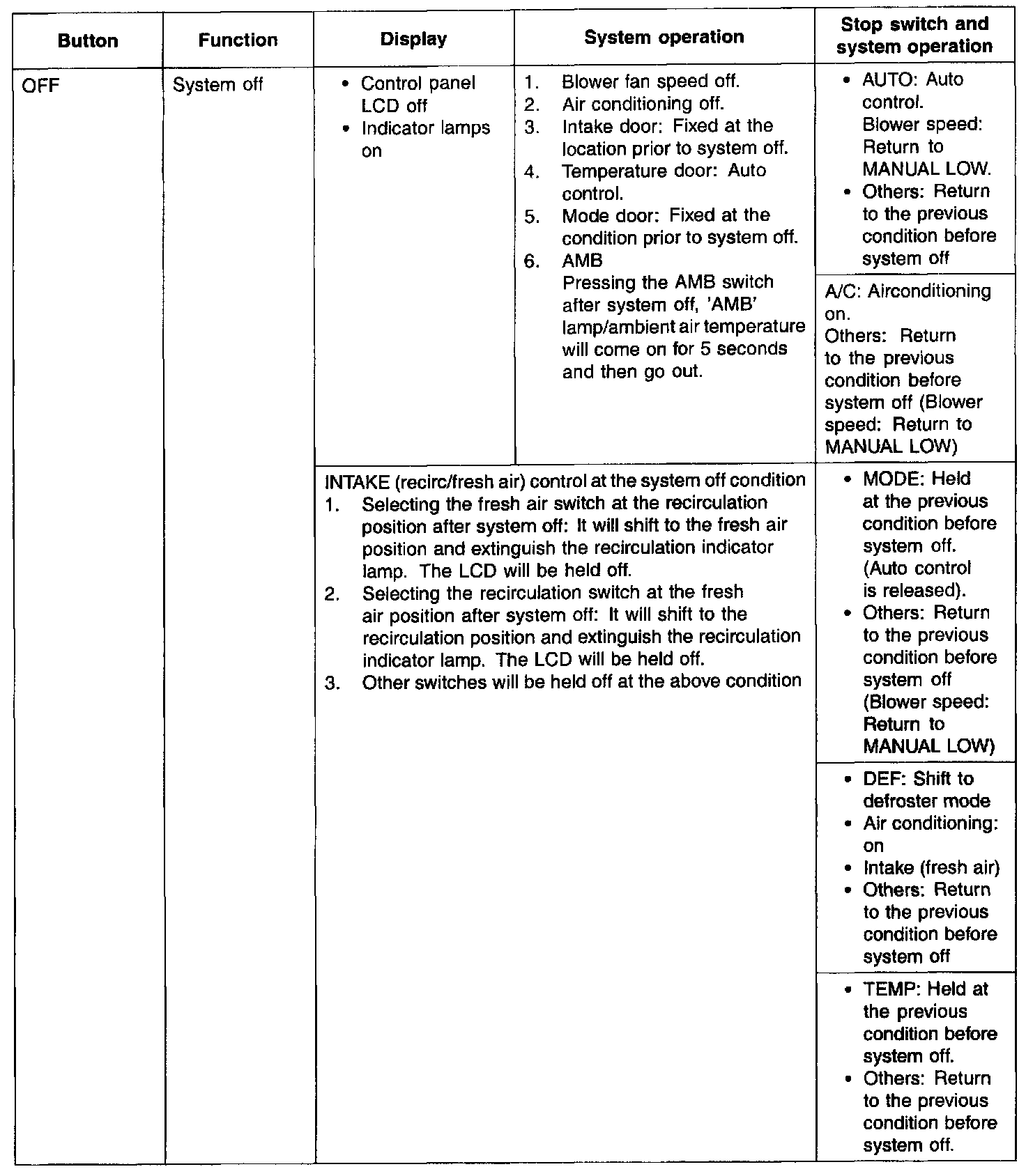

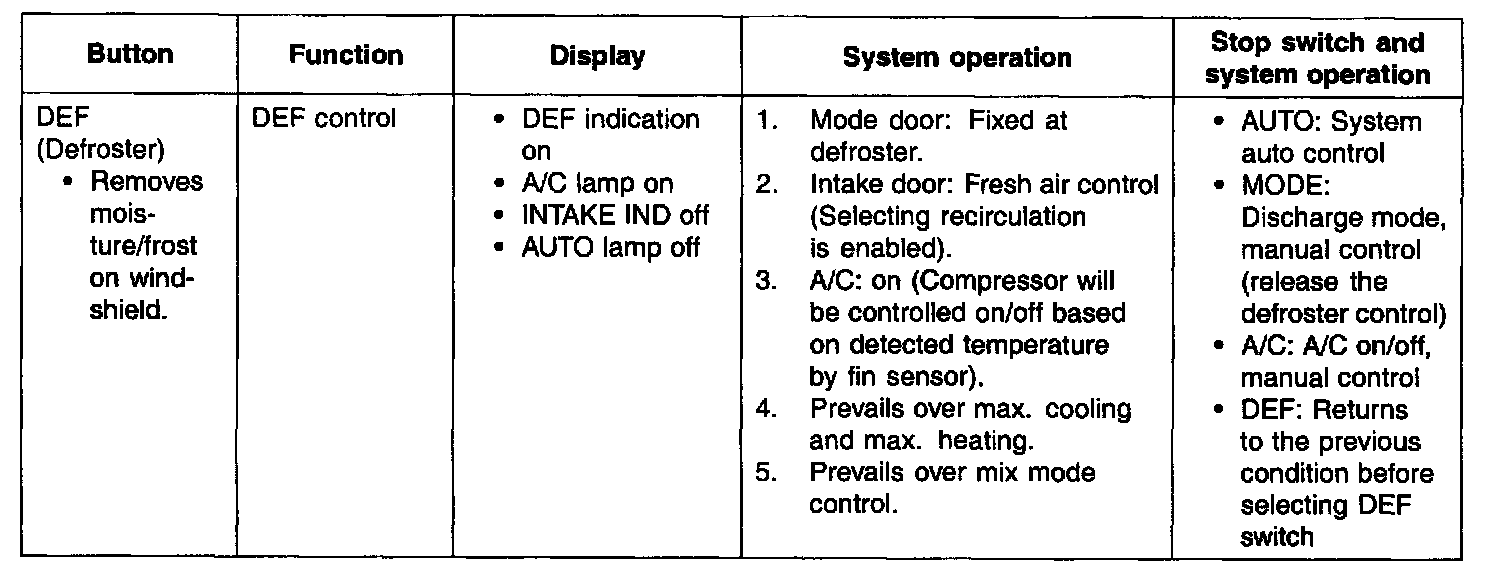

SWITCH OPERATION AND FEATURES

Control Panel Switches Will Generate Buzzer Sound On Operation:

1. Full auto air conditioning system: One-touch button type.
2. Manual air conditioning system: Combination of dial switch and a one-touch button.

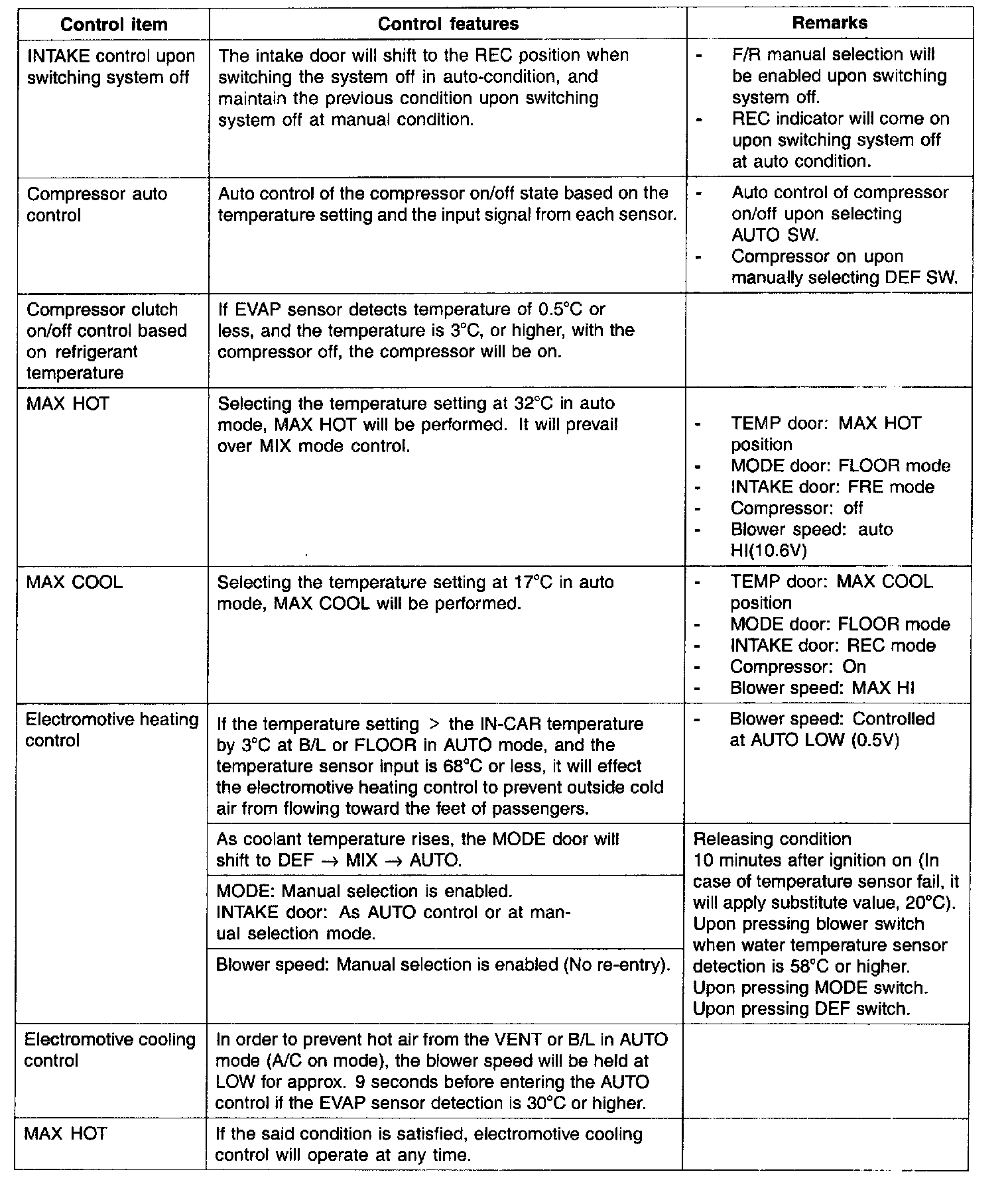

SYSTEM CONTROL FEATURES

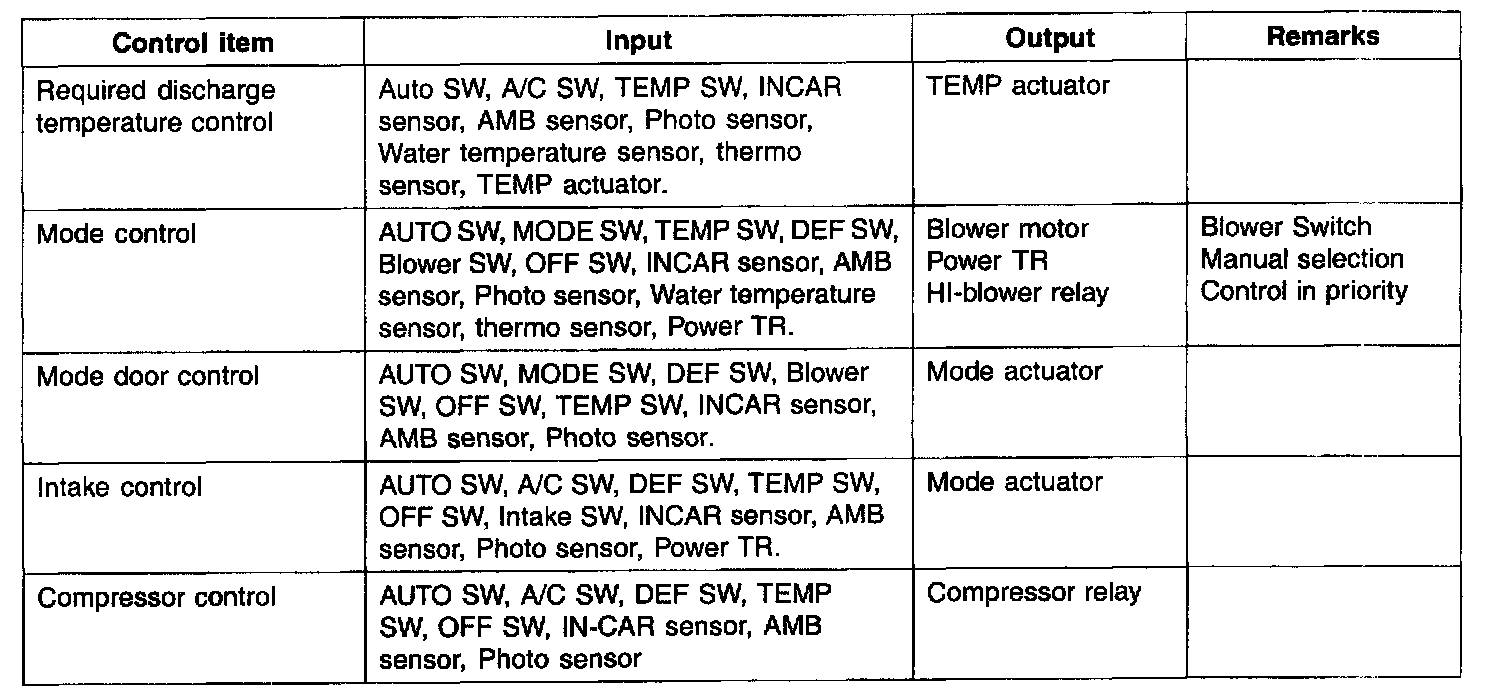

Signal I/O For Each Control Module Feature:

- During mode control, the A/C may operate during DEF or MIX mode. in order to enable dehumidification, the driver may select A/C OFF during the A/C on condition.

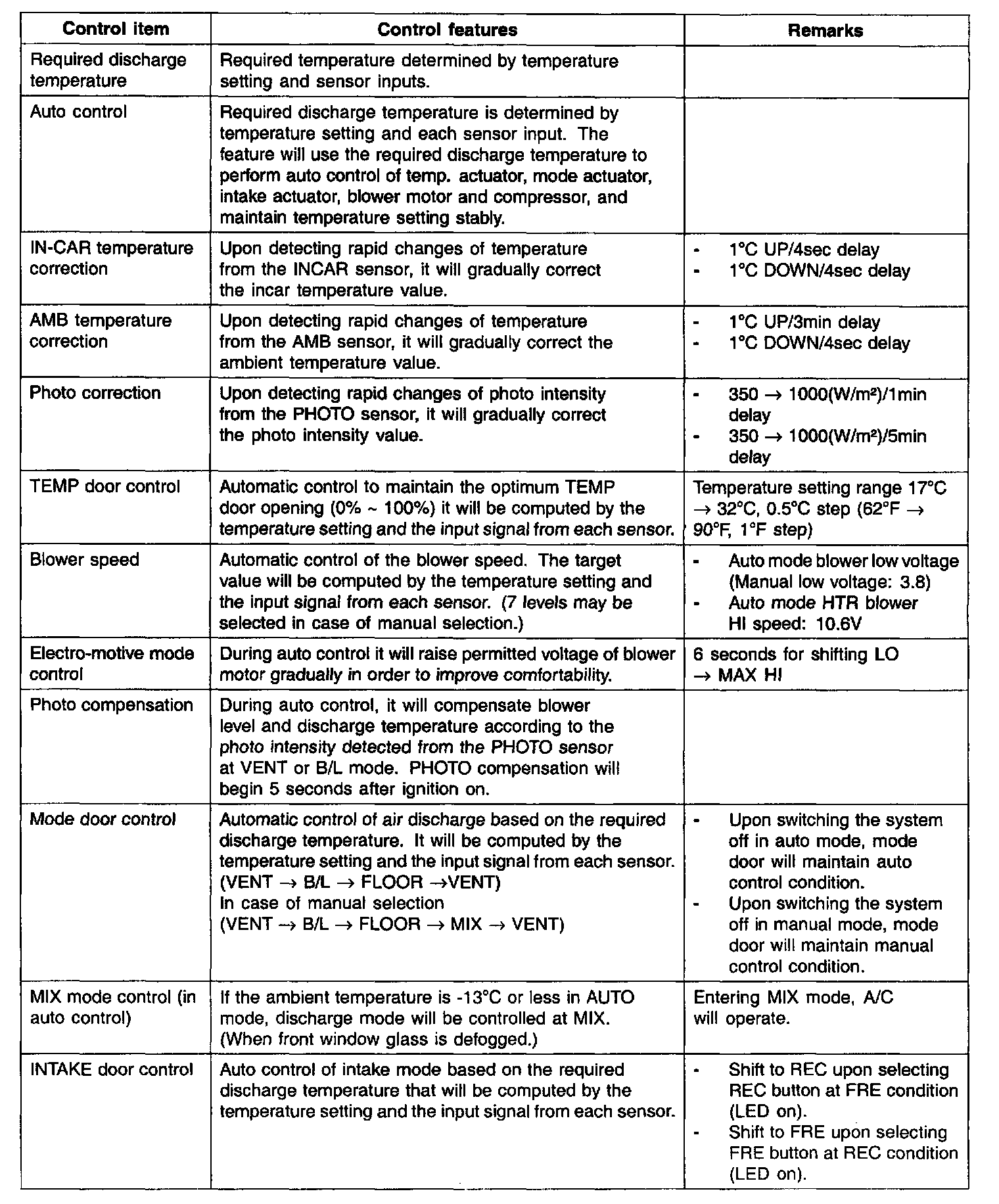

Control Specification:

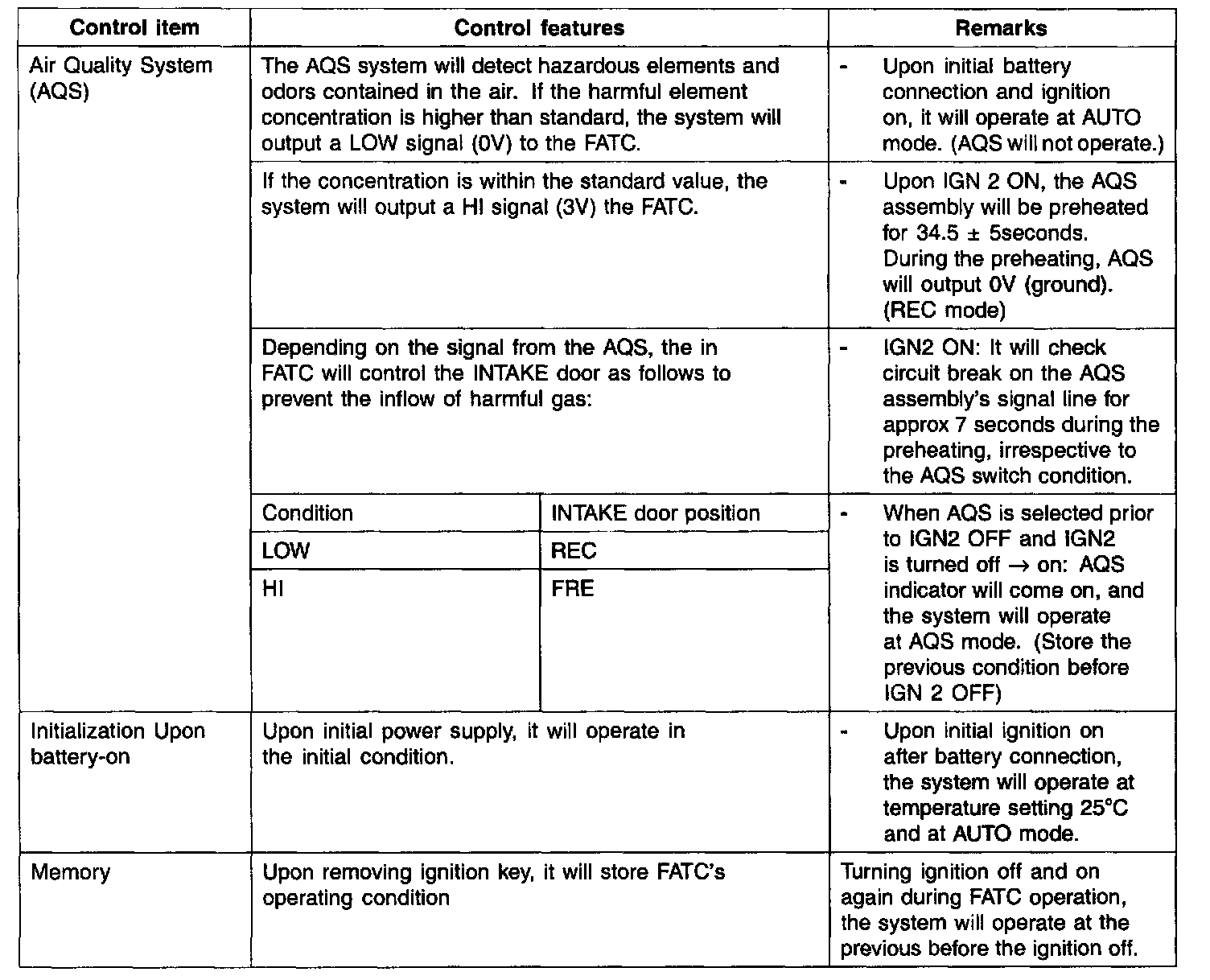

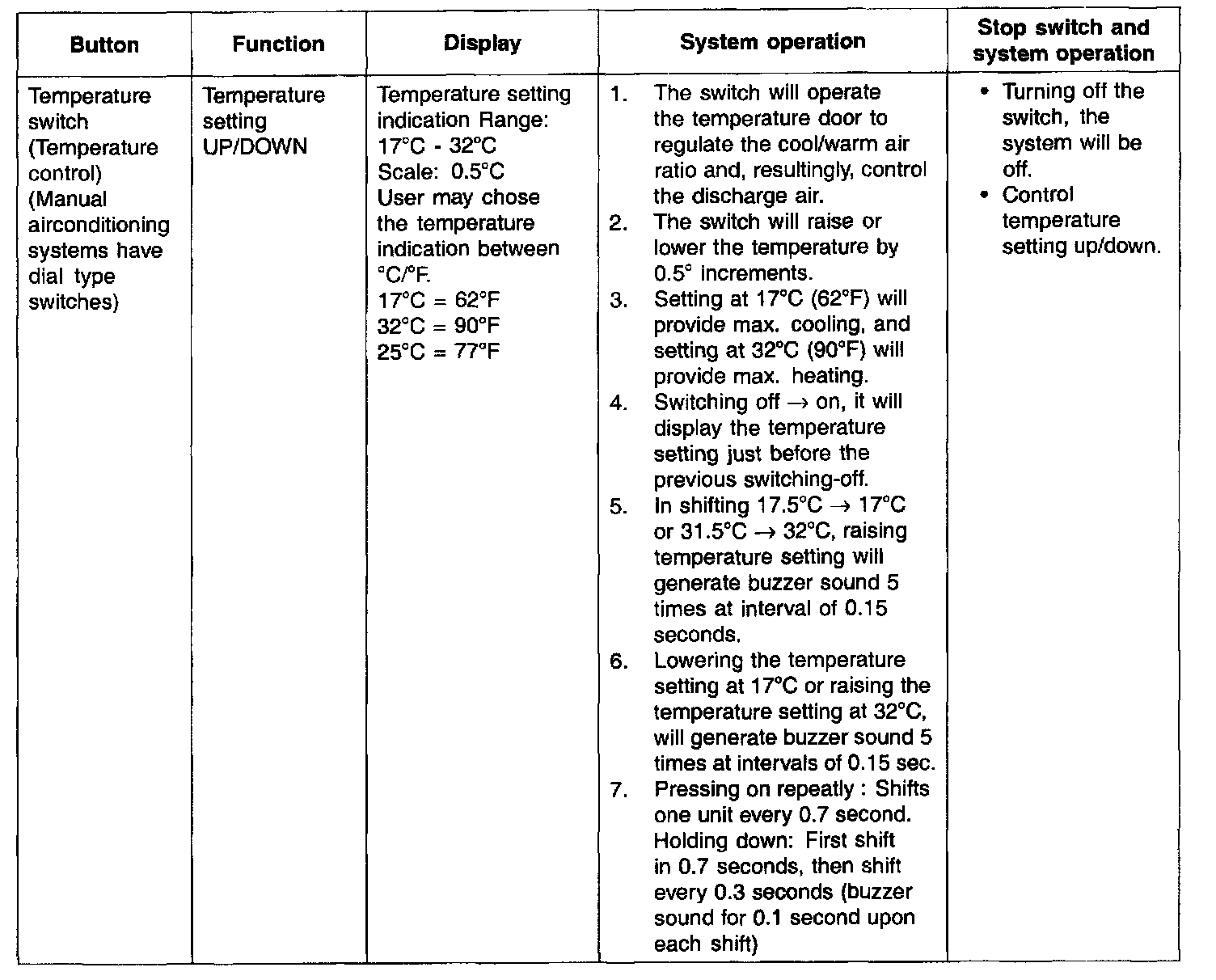

CONTROL SPECIFICATION
