Solar Sensor: Testing and Inspection

Checking (Automatic Temperature Control)

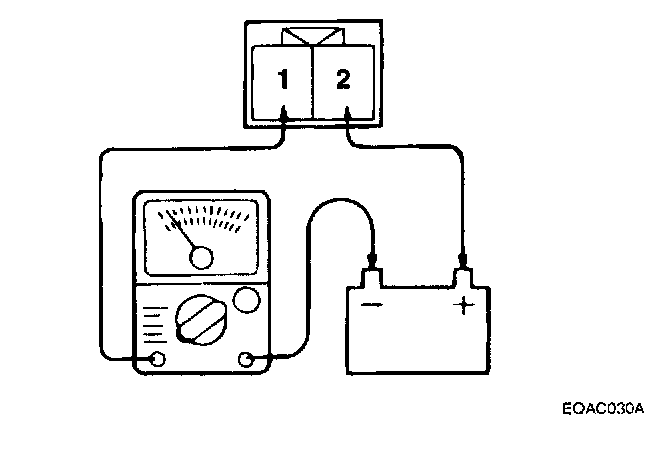

- In bright place, measure ampere between pin 1 and battery (-) terminal.
- In dark place, measure ampere between pin 2 and battery (+) terminal.
- Check the ampere in the bright place is higher than in the dark.

NOTE: The voltage is same as the ampere.
